SMALLRIG 3202 BATTERY ADAPTER PLATE V-MOUNT W CRAB SHAPED CLAMP 3202

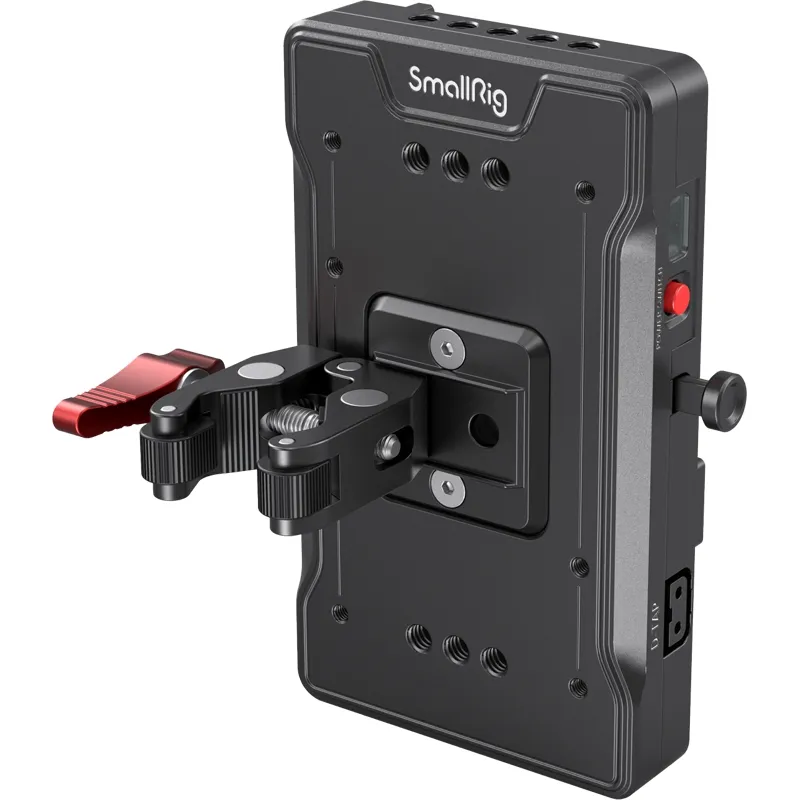

SmallRig V Mount Battery Adapter Plate with Crab-Shaped Clamp 3202 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilizing a standard V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 14.8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power on or power off your rig more quickly and conveniently. It comes with a crab-shaped clamp that fits rod diameter from 15mm to 30mm to help mount a V mount battery to a tripod, a light stand or a handheld ring for gimbals, and multiple 1/4”-20 thread holes on the back, top, and bottom, to attach a dual rod clamp, a magic arm or other accessories.

SmallRig V Mount Battery Adapter Plate with Crab-Shaped Clamp 3202

Key Features:

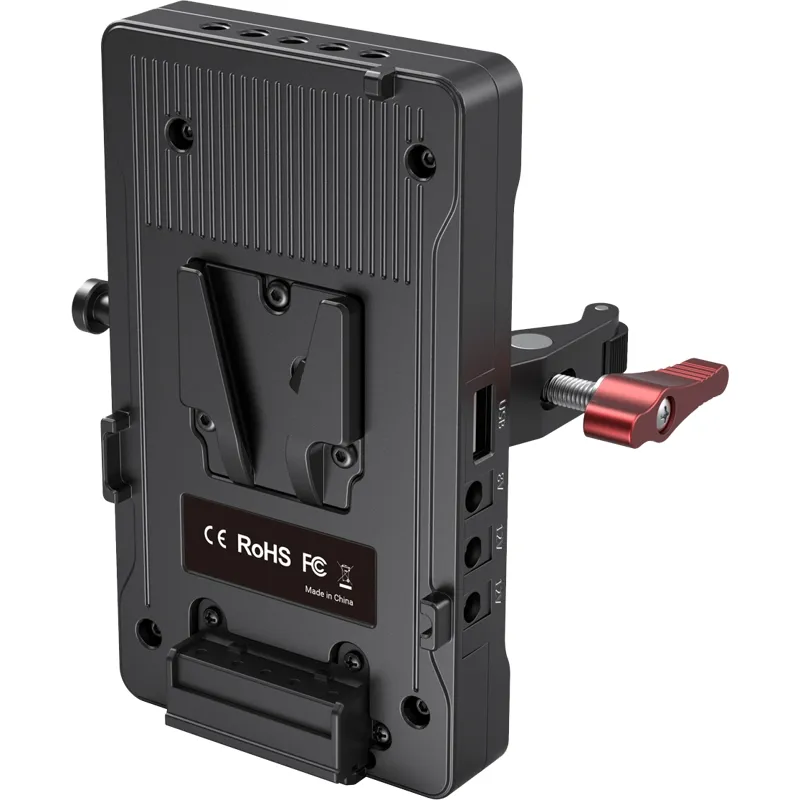

1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig.
2. The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port.
3. The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery.

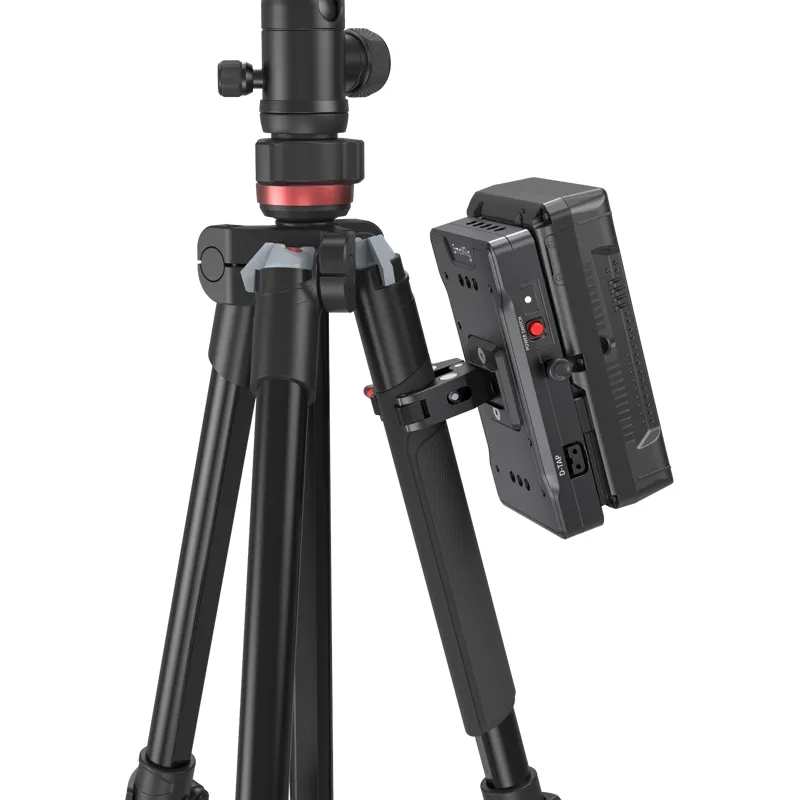

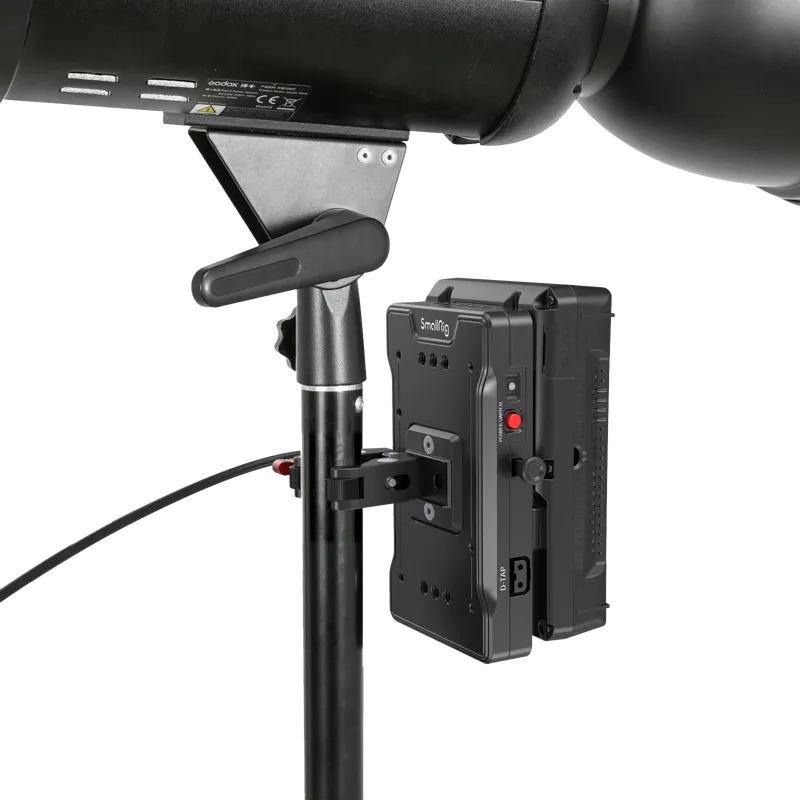

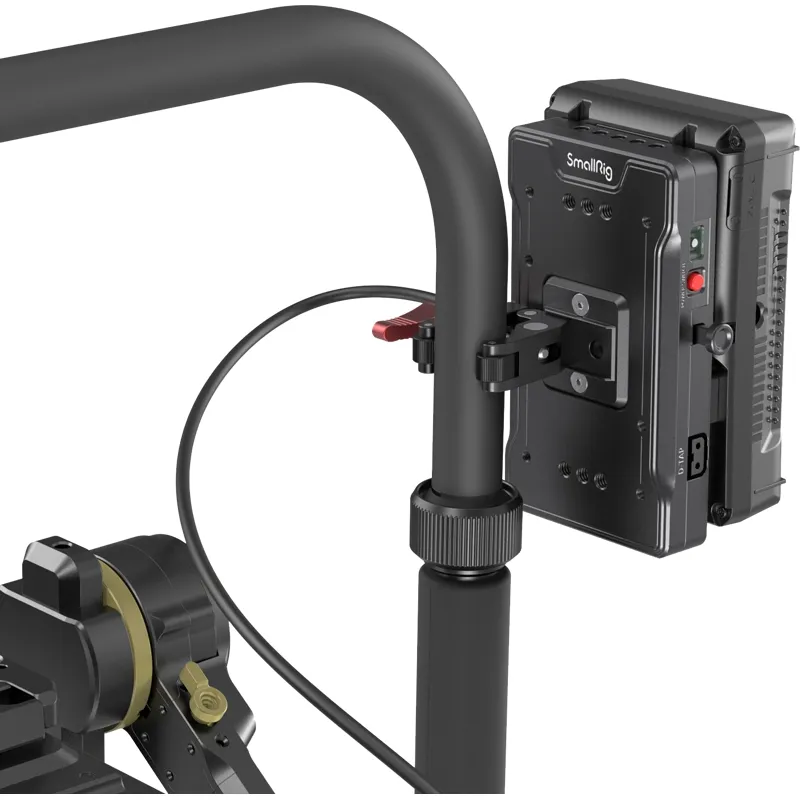

4. It comes with a crab-shaped clamp that fits rod diameter from 15mm to 30mm to help mount a V mount battery to a tripod, a light stand, or a handheld ring for gimbals.
5. It features multiple 1/4”-20 thread holes on the back, top, and bottom to attach a dual rod clamp, a magic arm, or other accessories.

SmallRig V Mount Battery Adapter Plate with Crab-Shaped Clamp 3202 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilizing a standard V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 14.8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power on or power off your rig more quickly and conveniently. It comes with a crab-shaped clamp that fits rod diameter from 15mm to 30mm to help mount a V mount battery to a tripod, a light stand or a handheld ring for gimbals, and multiple 1/4”-20 thread holes on the back, top, and bottom, to attach a dual rod clamp, a magic arm or other accessories.

Note:
1. Do not use in damp environment to avoid short circuit;
2. In order to achieve the maximum compatibility of the crab-shaped clamp, avoid installing the crab-shaped clamp in the center of the plate (refer to the picture for installation form).

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

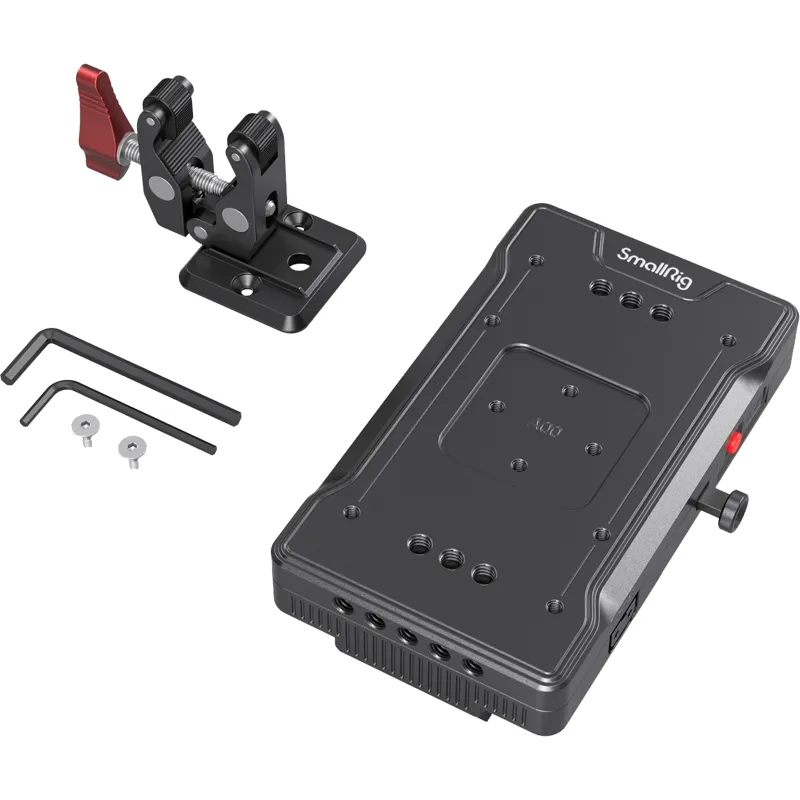

Package Includes:
1 x V Mount Battery Adapter Plate
1 x Crab-shaped Clamp
2 x Allen Wrench

Product Dimensions: 142 x 92.5 x 85mm
Package Dimensions: 230 x 145.5 x 69.5mm
Net Weight: 362g±5g
Package Weight: 477g±5g
Material(s): Aluminum Alloy
