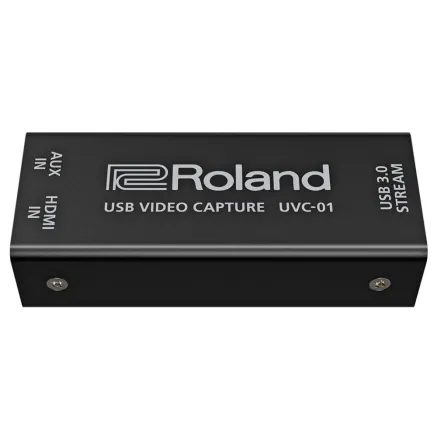

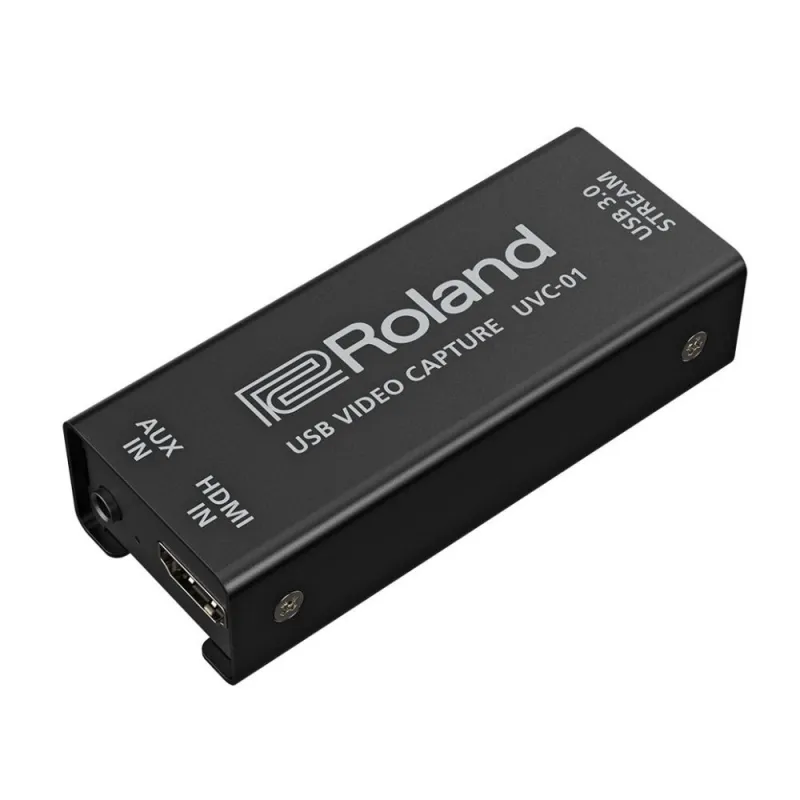

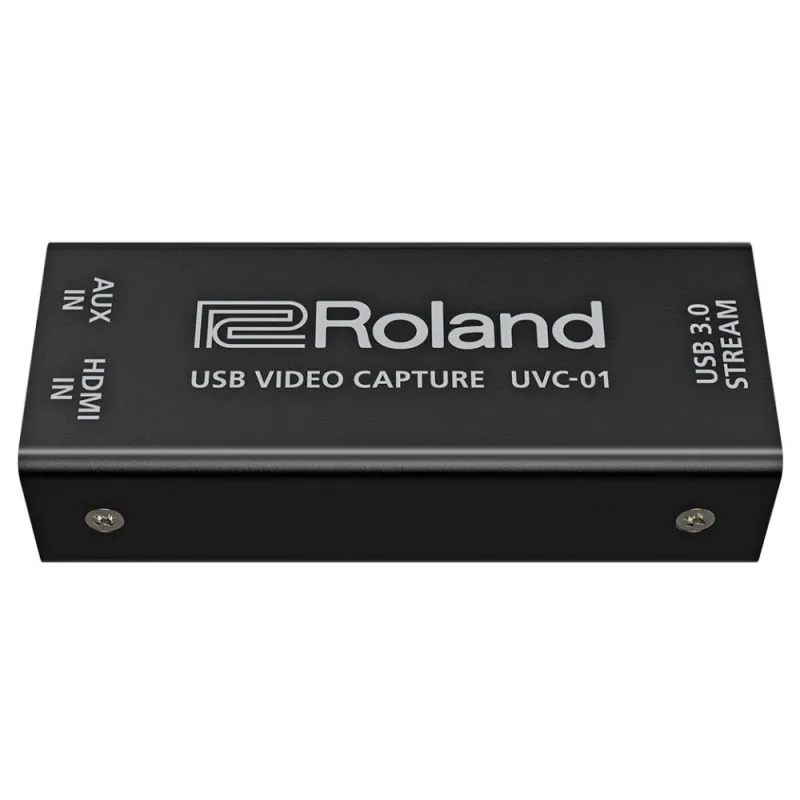

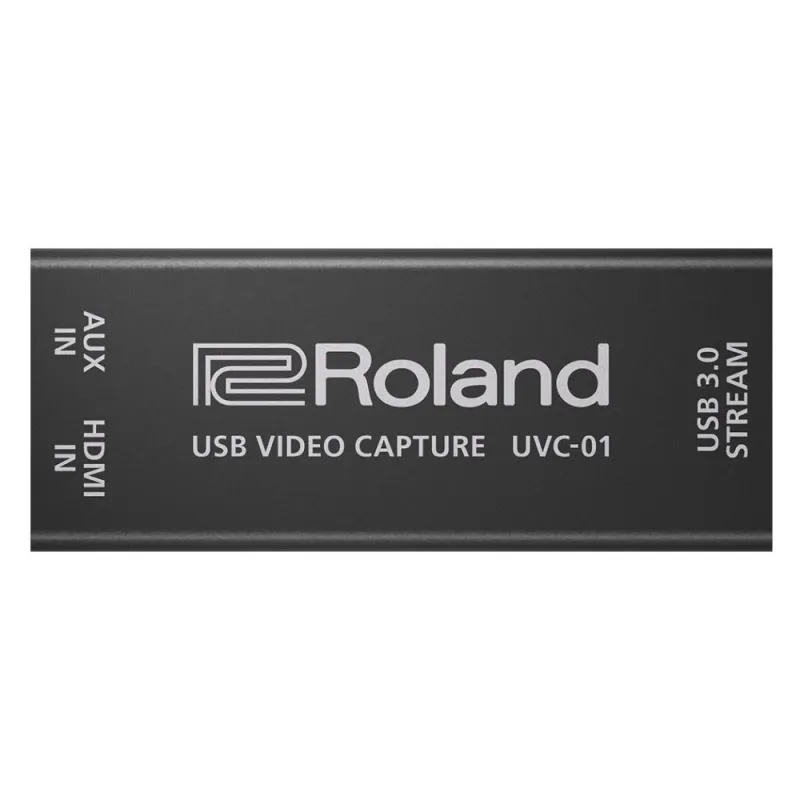

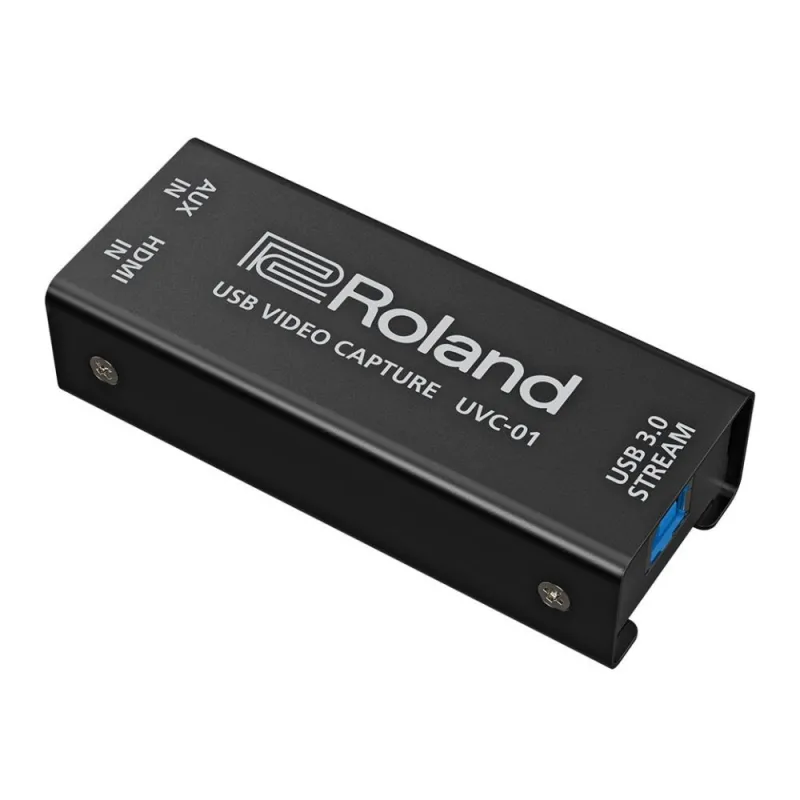

The Roland UVC-01 is a USB video capture device enabling high-quality 1080p60 livestreaming via HDMI input and USB 3.0 output.

Roland UVC-01 USB Video Capture

Product ID: 15036
€ 345,46 tax incl.

Delivery in 5 - 7 business days

Available from supplier: 3 Items

SKU: 15036
Model: UVC-01
Ean: 4957054518011
Condition: New product
Manufacturer: Roland
345.46
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductVideo Streaming Solutions
Type of ProductRecorders
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


Available from warehouse

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Roland UVC-01 USB Video Capture

Roland UVC-01 USB Video Capture

The Roland UVC-01 is a USB video capture device enabling high-quality 1080p60 livestreaming via HDMI input and USB 3.0 output.

Write a review

Product details

Roland UVC-01 USB Video Capture

  • High-quality HDMI to USB 3.0 video encoder
  • Plug-and-play USB webcam operation for Mac and Windows computers
  • Seamlessly works with all Roland V-series switchers with an HDMI output
  • Also compatible with most HDMI-equipped cameras and camcorders
  • Uncompressed 1080p HD at 60 FPS for engaging livestreams
  • Dedicated analog audio line input for live music versatility
  • Powered via USB

Designed for online content creators, musicians, gamers, businesses, schools, and houses of worship, livestreaming is an essential medium for global communication. The UVC-01 simplifies adding high-quality livestreaming capabilities to your Roland V-series video switcher or HDMI-equipped camera or camcorder.

Connect the UVC-01 via HDMI, plug into your computer's USB 3.0 port, and start streaming to platforms like Facebook Live and YouTube. Featuring plug-and-play operation in a rugged, pocket-sized design, the UVC-01 is ready for use anywhere.

Specifications

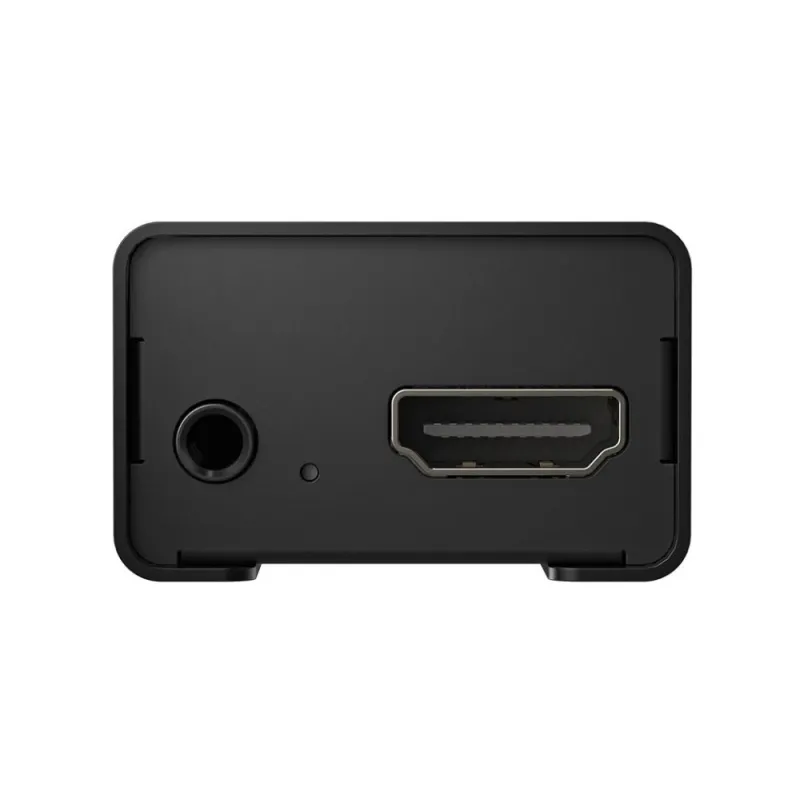

  • Input Connectors: HDMI IN connector (HDMI type A)
    - Multi-format supported
    - HDCP not supported
  • Output Connectors: USB STREAM port (USB 3.0 B type)
  • Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
    - Refresh rate is the maximum value for each resolution
    - Conforms to VESA DMT Version 1.0 Revision 11
  • USB Video Output Format: YUY2 (Uncompressed)
  • USB Video Output Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
    - Maximum frame rate is 60 fps
  • Audio Formats: HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
    USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
  • Additional Input Connectors: AUX IN jack (Stereo miniature phone type)
  • Nominal Input Level: AUX IN jack -10 dBu (Maximum input level +8 dBu)
  • Input Impedance: AUX IN jack 10 kΩ
  • Power Supply: Supplied from the computer via USB
  • Current Draw: 500 mA
  • Operating Temperature: 0 to 40 °C
  • Dimensions: 90 (W) x 37 (D) x 23 (H) mm
  • Weight (excluding AC adapter): 96 g
  • Accessories Included: Owner's Manual, USB 3.0 Cable
