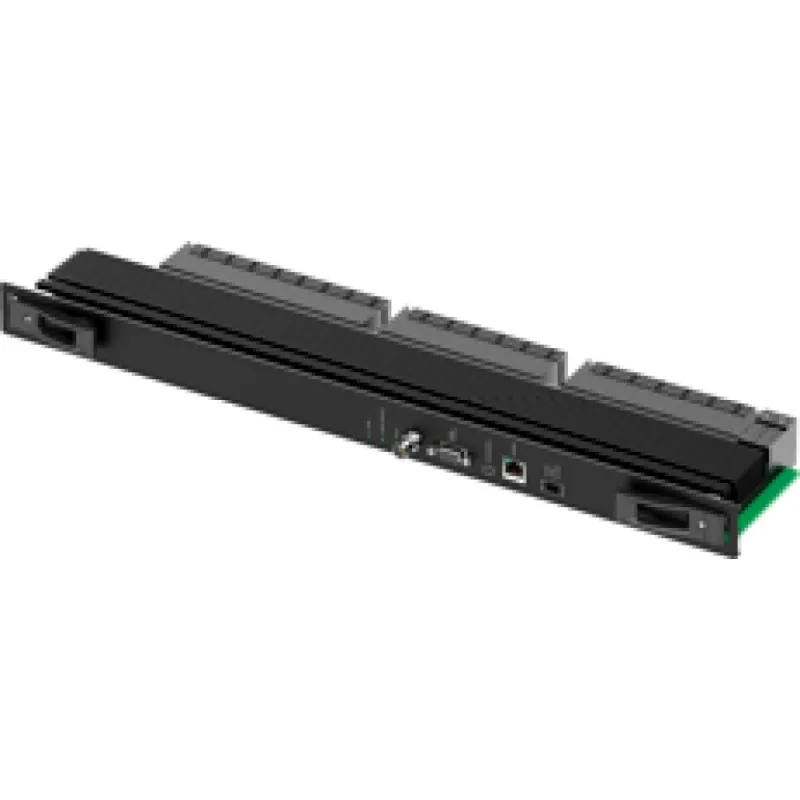

Blackmagic Design Universal Videohub 288 Crosspoint (BM-VHUBUV-288XP)
The Universal Videohub 288 Crosspoint card supports up to 288 x 288 SDI and 288 x 288 deck control connections, providing extensive routing capabilities for professional video environments. It offers ethernet and serial router crosspoint control, genlock input, alarm GPI, and alarm indicators. This card is compatible with the Universal Videohub 288 frame, enabling flexible and scalable video routing solutions.
Key Features
- Supports up to 288 x 288 SDI and deck control routing
- Tri-Sync or Blackburst input for external reference via BNC connector
- RS-422 port for integration with third-party control systems
- USB 2.0 interface for connection to Windows or Mac OS X computers
- Ethernet connection for local network access and Videohub Smart Control
- GPI alarm connector for system monitoring
- Easy-to-use handles for quick removal and insertion of the card module
- Supports 800W main and backup power supply connections for redundancy
System Integration and Expandability
The Universal Videohub 288 is designed as a modular 3G/HD/SD SDI and deck control routing switcher. It supports hot-swappable BNC SDI or optical fiber interface modules, each including full deck control. The frame can be configured with either a single 72 x 72 or dual 288 x 288 crosspoint cards, allowing for scalable system sizes. For enhanced reliability, a second crosspoint card can be added to provide full redundancy for 24/7 operation.
All inputs feature automatic standards detection, and all outputs are re-clocked to maintain signal integrity. The 18 rack unit frame is compact, measuring less than 15 cm in depth, and includes redundant power supplies and serial/ethernet connectivity for third-party control.
Recommended Components for a Complete Videohub System
- Universal Videohub 288 Mainframe: Rack frame supporting up to 72 BNC SDI or optical fiber SDI interfaces, one or two crosspoint cards, and up to two power cards. Includes removable fan tray and fans.
- Universal Videohub 288 Crosspoint: The routing card supporting up to 288 x 288 SDI and deck control, compatible with the mainframe.
- Universal Videohub SDI Interface: Provides 4 SDI inputs and 4 SDI outputs with 4 deck control channels, supporting SD, HD, and 3 Gb/s SDI with full re-clocking and auto switching.
- Universal Videohub Optical Interface: Offers 4 optical inputs and 4 outputs with 4 deck control channels, supporting SD, HD, and 3 Gb/s SDI over distances up to 25 km using 1310 nm laser drivers and receivers.
- Universal Videohub 800W Power Supply: Provides dual redundant 800 Watt 12 V power supplies required for fully loaded routers with mixed optical fiber and BNC SDI modules.
- Universal Videohub Remote Cable: Adds four independent remote control ports to BNC SDI or optical fiber SDI interfaces for remote operation.
