Photo & video store, rental and expert advice
Blackmagic Design ATEM Television Studio HD8
Product ID: 52052
SKU: 52052
Condition: New product
Manufacturer: Blackmagic Design
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers?
| Type of Product | Video Mixer |
| Connector | 3,5mm |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details

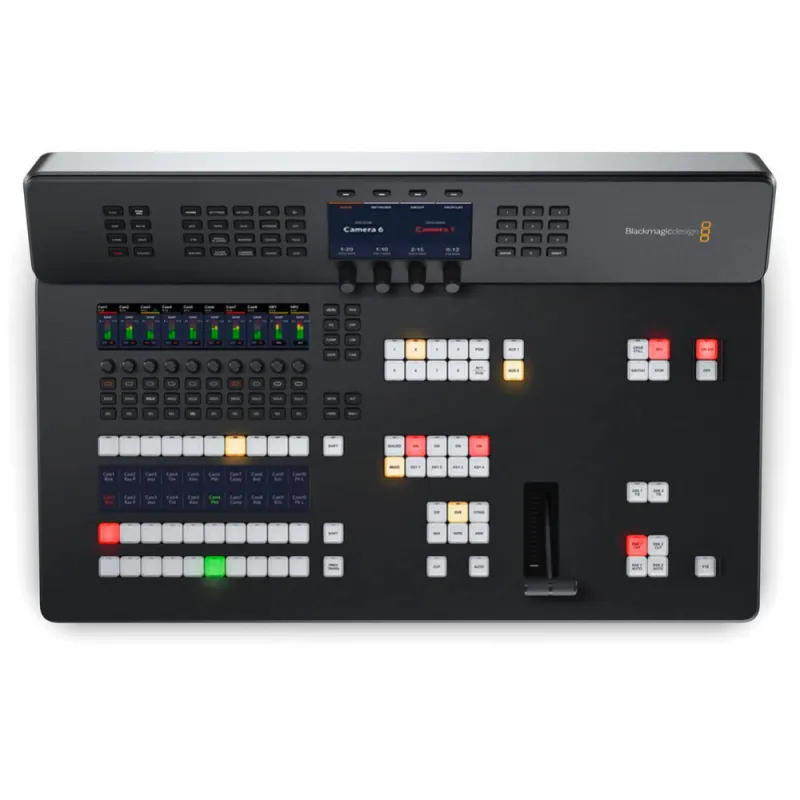

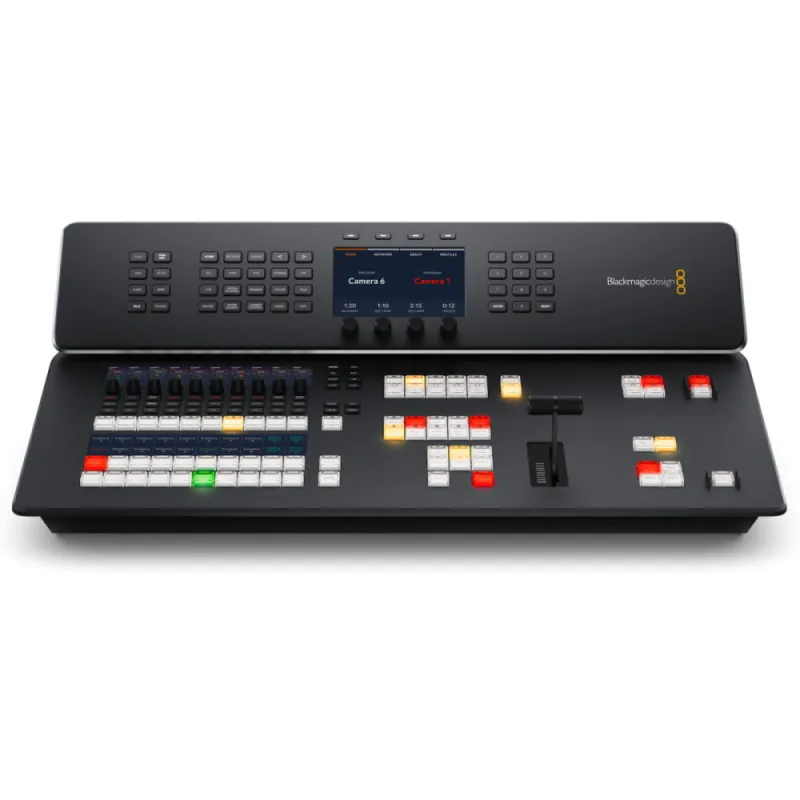

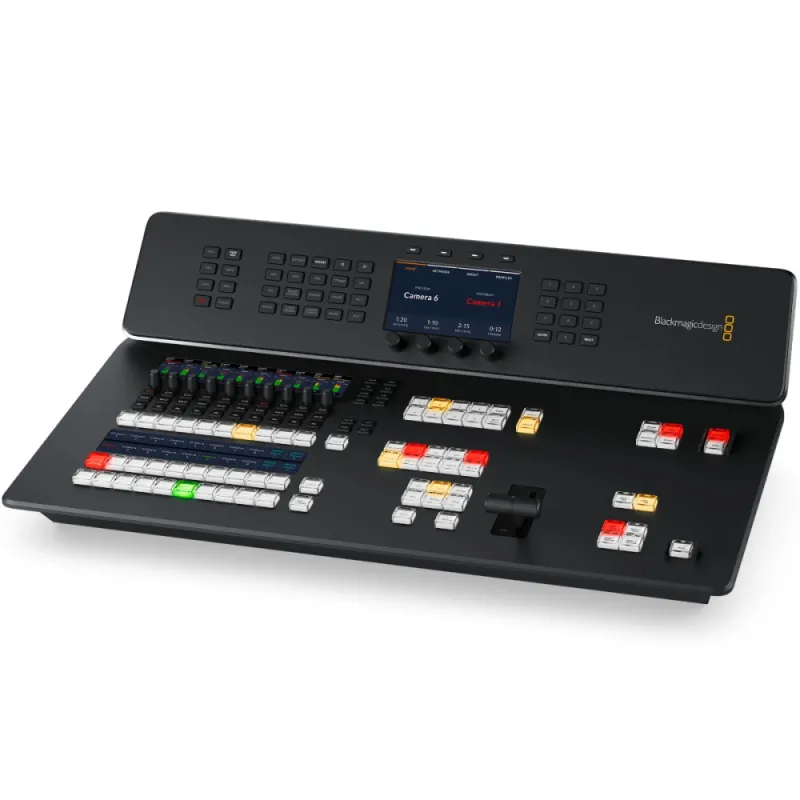

Blackmagic Design ATEM Television Studio HD8
ATEM Television Studio HD8 is a compact live production switcher with a built-in broadcast control panel. It offers 8 standards converted 3G-SDI inputs, built-in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4-way Ethernet switch, and optional internal cloud media storage.
Delivery Content
- ATEM Television Studio HD8
- Welcome wallet with QR code for software download

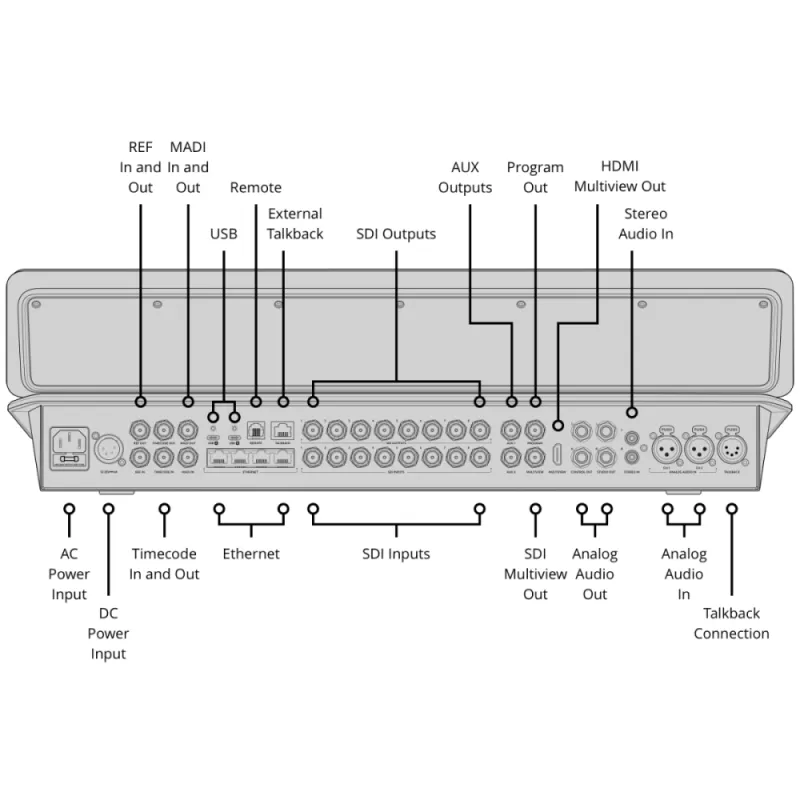

Connections
- SDI Video Inputs: 8
- SDI Video Outputs: 12
- SDI Rates: 1.5G, 3G
- HDMI Video Outputs: 1
- Total Audio Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback
- Total Audio Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback
- SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs
- SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs
- Timecode Connections: 1 x BNC In, 1 x BNC Out
- Reference Input: 1 x BNC In, 1 x BNC Out, Tri-Sync or Black Burst
- Video Input Re-Sync: On all 8 inputs
- Frame Rate and Format Converters: On all 8 inputs
- SDI Aux Outputs: 2
- SDI Program Outputs: 1
- Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate
- Total Multi Views: 1 x 3G-SDI, 1 x HDMI
- Remote: RJ12 supports RS-422
- Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network
- Internal Timecode Generator: Yes
- Talkback: RJ45 for 3rd party talkback systems
- Tally Output: Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product (Not included)
- Ethernet: 4 x RJ45 with internet network switch, Supports 10/100/1000 BASE-T
- Computer Interface: 2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates, and switcher connection
