The ATEM 4 M/E Constellation 4K Plus is a powerful live production switcher with extensive connectivity.

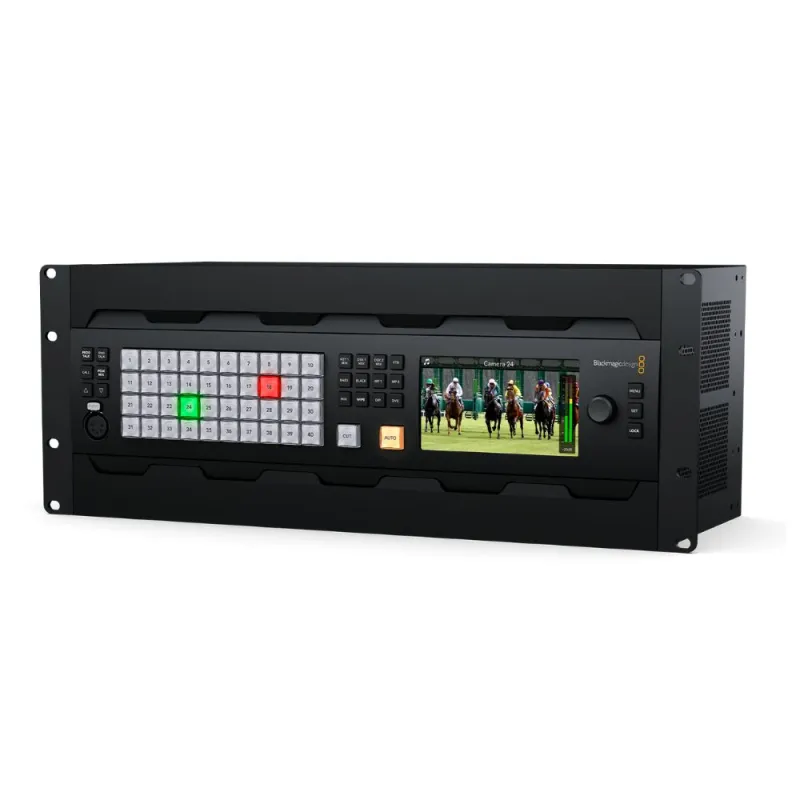

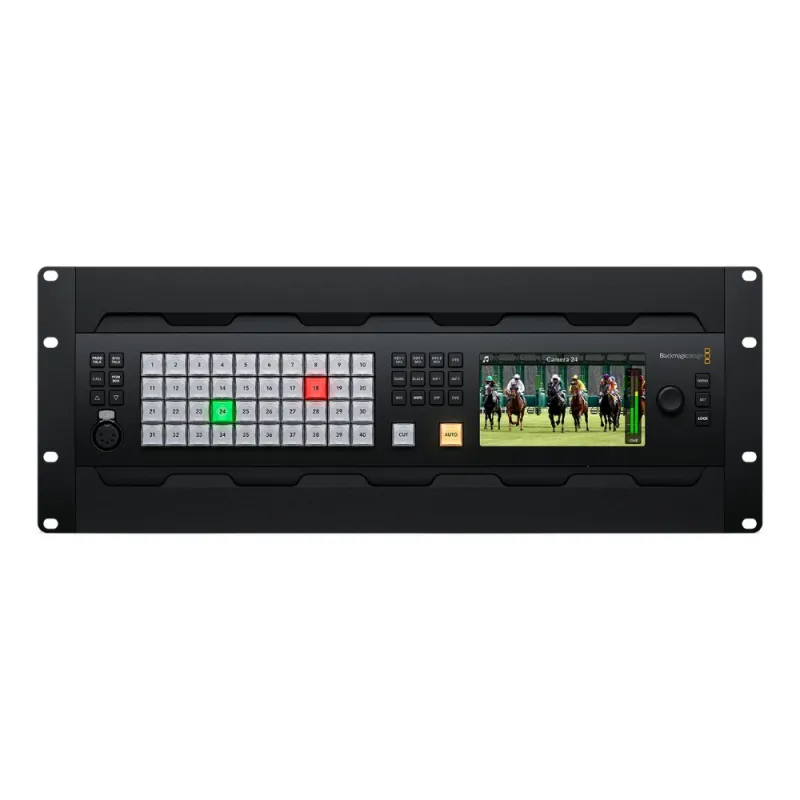

Blackmagic Design ATEM 4 M/E Constellation 4K Plus
Product ID: 20477
SKU: 20477
Model: SWATEMSCN2/2ME4/4K/P
Ean: 9338716009972
Condition: New product
Manufacturer: Blackmagic Design
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video Mixer |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
The ATEM 4 M/E Constellation 4K Plus is a powerful 4 M/E Ultra HD switcher for live production. It offers 80 12G-SDI inputs, 48 12G-SDI AUX outputs, 4 DVEs, 16 ATEM Advanced chroma keys, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors and other features. There’s also talkback and Fairlight’s professional 156-channel audio mixer with equalization and dynamics. Availability is expected for June 2025.
Each device input is equipped with a separate converter, allowing any SDI video input to be converted to the switcher’s output standard. It is possible to have each SDI input of the switcher in a different TV standard - and they will all work seamlessly. You can even output audio to multiple digital MADI outputs, allowing you to pass audio sources from the switcher to an external sound engineer for separate mixing.

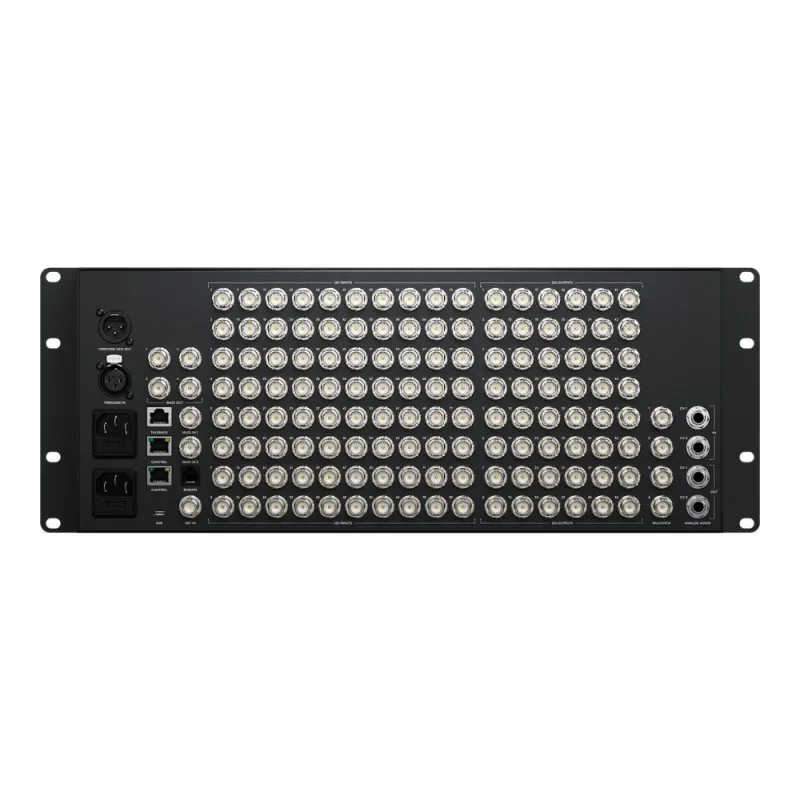

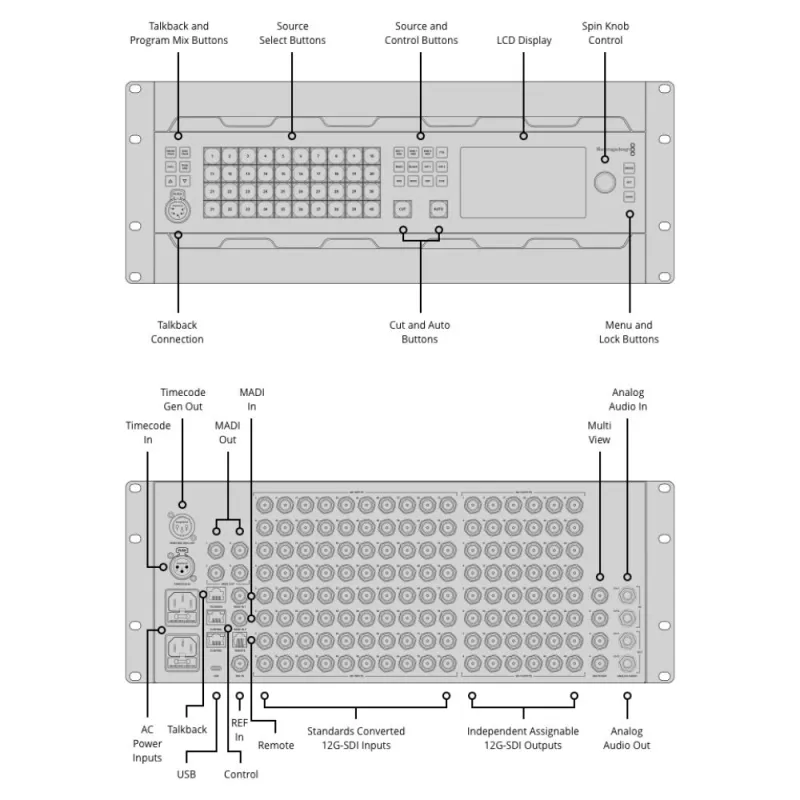

Connections
- 80 total video inputs
- Total number of video outputs 52
- Total number of AUX outputs 48
- SDI speeds 1.5G, 3G, 6G, 12G
- Total number of audio inputs 2 6.3 mm jack, 2 MADI input (64-channel, BNC), 1 5-pin XLR for talkback
- Total number of audio outputs 2 6.3 mm jack, 4 MADI output (64-channel, BNC), 1 5-pin XLR for talkback
- Timecode connections 1 3pin XLR Timecode In, 1 3pin XLR Timecode Out
- Reference input Tri-Sync or Black Burst
- Video re-sync On all 80 inputs
- Frame rate and format converters On all 80 inputs
- SDI video inputs 80 10-bit 720p, 1080i, 1080p, 2160p
- SDI audio inputs 8 channel embedded audio on all SDI inputs
- Additional audio inputs 1 5-pin XLR for talkback
- SDI video outputs 52 10-bit 720p, 1080i, 1080p, 2160p
- SDI audio outputs 16-channel embedded audio on all SDI outputs
- Additional audio outputs 1 5pin XLR for talkback
- SDI program outputs any of 48 SDI outputs
- Downconverted SDI program outputs 8
- SDI preview outputs Any of 48 SDI outputs
- SDI multi-view outputs 4 dedicated + up to 48 additional routable outputs
- HDMI multi-view outputs None
- Output as webcam 1 USB-C (720p or 1080p at program frame rate)
- Remote control RJ12 (RS-422)
- Control Panel Connection Ethernet (10/100/1000 BaseT), direct or network connection
- Internal timecode generator Yes
- RJ45 for third party systems
- Tally output Via Ethernet using Blackmagic Design GPI and Tally Interface product (not included), On any of the 48 SDI outputs
- Computer Interface 1 USB-C port
Standards
- SD video standards None
- HD video standards 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Ultra HD standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI Compatibility SMPTE 292M, 296M, 424M, 425M Level A and B, 2081-1, 2081-10, 2082-1, 2082-10, 2082-12
- Video Sampling 422
- Color Depth 10 bits
- Color Space REC 709, REC 2020
- Auto SDI switching Automatically detects between 1.5G-SDI, 3G-SDI (Level A/B), 6G-SDI and 12G-SDI
Product Specifics
- Upstream keys 16
- Downstream keys 4
- Advanced chroma keys 16
- SuperSource 2
- Talkback support Yes
- Support Mix Minus Yes
- Linear/Luma Keys 20
- Transition Keys (Stinger/DVE) 4 Stinger, 4 DVE
- Total number of layers 28
- Pattern Generators 21
- Color Generators 2
- DVE 4
- Control panel Front panel emergency switching, software or optional hardware panel
- Routable windows 64
- Tally Red for program, green for preview
- Resource labels in windows Yes
What’s included
- ATEM 4 M/E Constellation 4K Plus
- Welcome kit with QR code for software download
