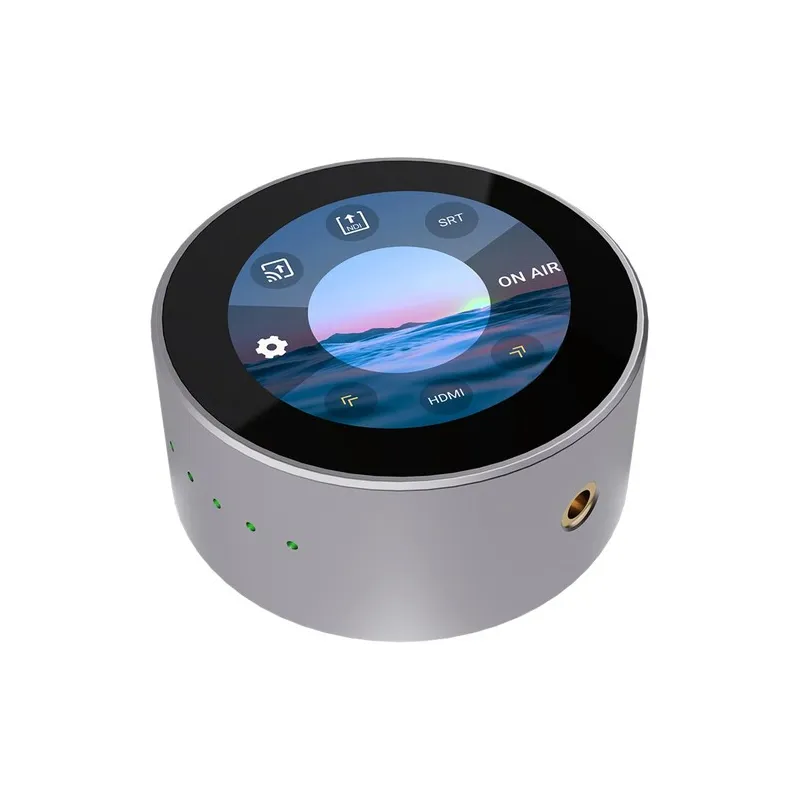

The RGBlink TAO 1mini-HN is a compact, versatile streaming node that allows livestreaming from PTZ cameras, DSLRs, or webcams to platforms like YouTube, Facebook, and Twitch. It features HDMI and USB-C inputs, a 2.1" touchscreen for monitoring, PoE support, and multi-platform streaming via LAN or NDI, delivering high-quality 2K FHD video with ultra-low latency in a fanless, portable design.

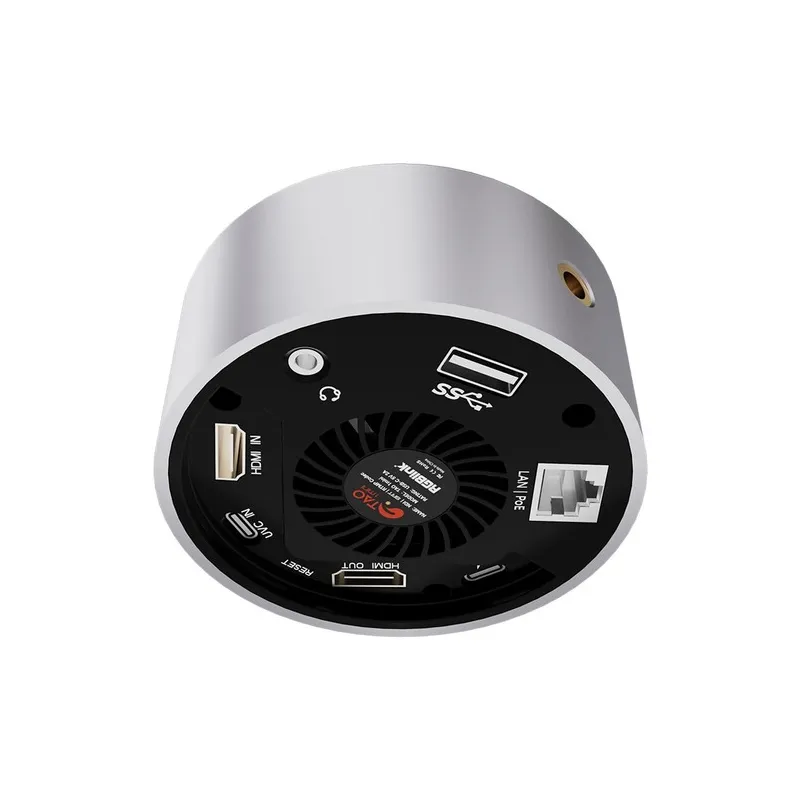

This ultracompact, circular streaming node transforms your PTZ, DSLR, or USB camera into a professional live streaming setup. Its 2.1" touchscreen allows easy monitoring and control of LAN or NDI streaming signals. With HDMI 1.3 and USB-C UVC inputs, it supports 2K FHD video capture and encodes/decodes using H.264, H.265, or MJPEG codecs. An analog 3.5mm audio input enhances sound quality, while HDMI output ensures clean video pass-through.
The device supports simultaneous streaming to up to 4 platforms via the TAO mobile app and connects easily via LAN or USB-A 3.0. It can be powered via PoE or USB-C PD, and its integrated 1/4"-20 threads and cold shoe adapter allow flexible mounting on cameras or desks. Backwards compatible with HD/SD resolutions, the TAO 1mini-HN converts HDMI/UVC signals into NDI, RTMP, or SRT streams, making it perfect for professional live streaming, webcasts, or hybrid events.
Key Features

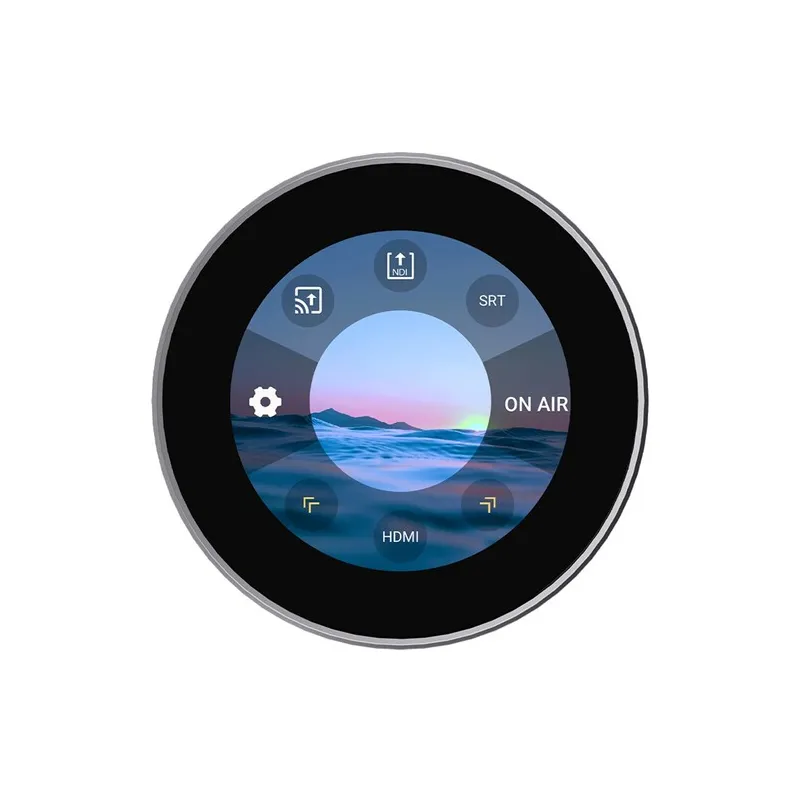

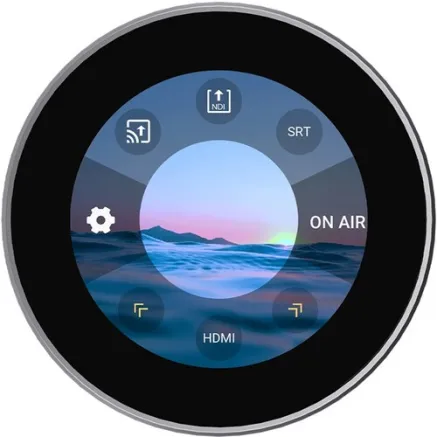

- 2.1" touchscreen with real-time monitoring and control
- HDMI 1.3 and USB-C UVC input supporting 2K FHD
- HDMI output and LAN streaming support via NDI/RTMP/SRT
- 3.5mm analog audio input for microphone connection
- PoE and USB-C PD power support
- USB-A 3.0 port for webcam or external storage (up to 2TB SSD/64GB USB)
- Stream to up to 4 platforms simultaneously via mobile app
- 1/4"-20 threads and cold shoe adapter for flexible mounting
- Supports H.264/H.265/MJPEG encoding and decoding
- Backwards compatible with HD/SD resolutions
- RGBlink TAO 1mini-HN streaming node
- Cold shoe adapter
- User manual
- Video Input / Output HDMI Input HDMI 1.3 Female, 8/10-Bit 422 YUV, up to 3840x2160 60fps; USB-C Input UVC, up to 1920x1080 60fps; HDMI Output HDMI 1.3 Female, up to 3840x2160 60fps
- Audio Input 3.5mm TRRS analog; Embedded audio supported via HDMI
- IP Video Encoding H.264 / H.265 / MJPEG, up to 1920x1080 60fps; Decoding H.264 / H.265 / MJPEG, up to 1920x1080 60fps
- Physical / Power Dimensions 3.6" x 1.6" (91 x 40.8mm); Weight 6.3oz (180g); Power 5-12VDC via USB-C, PoE supported; Power Consumption 10W
- Operating Conditions 32-131°F / 0-55°C, 5-85% humidity
- Mounting / Expansion 1/4"-20 threads, cold shoe adapter; USB-A 3.0 for storage or webcam input; No additional expansion slots
- Latency HDMI input 3 frames
- Standards HDR not supported; Broadcast system compatibility NTSC
