Overview

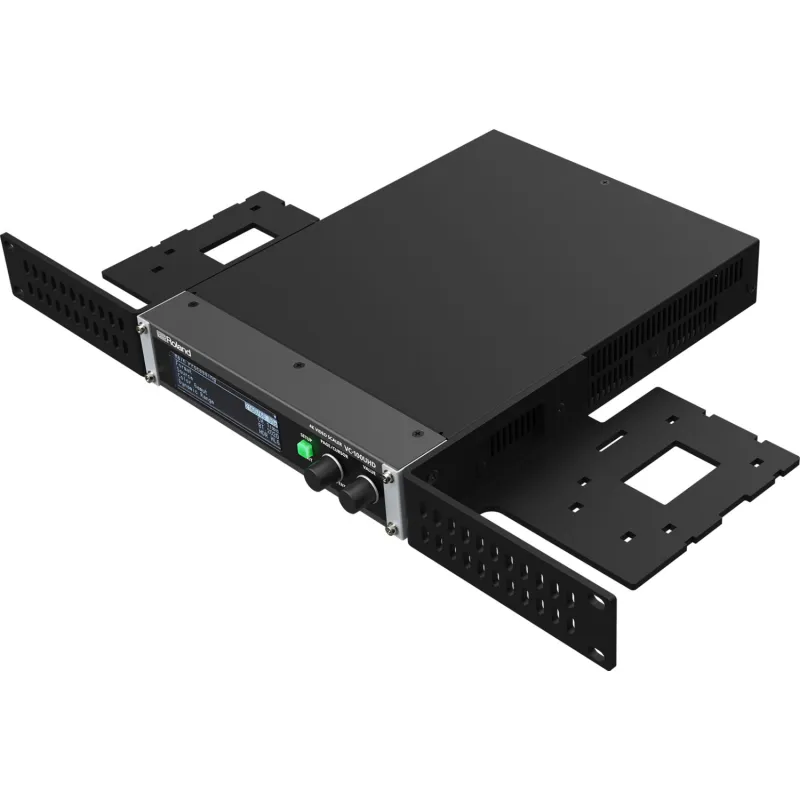

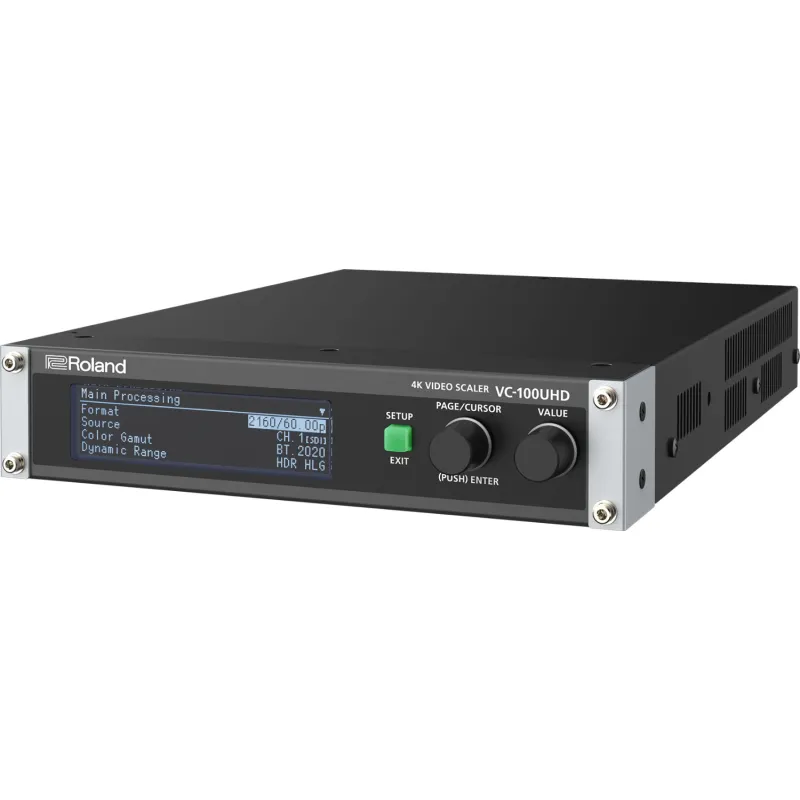

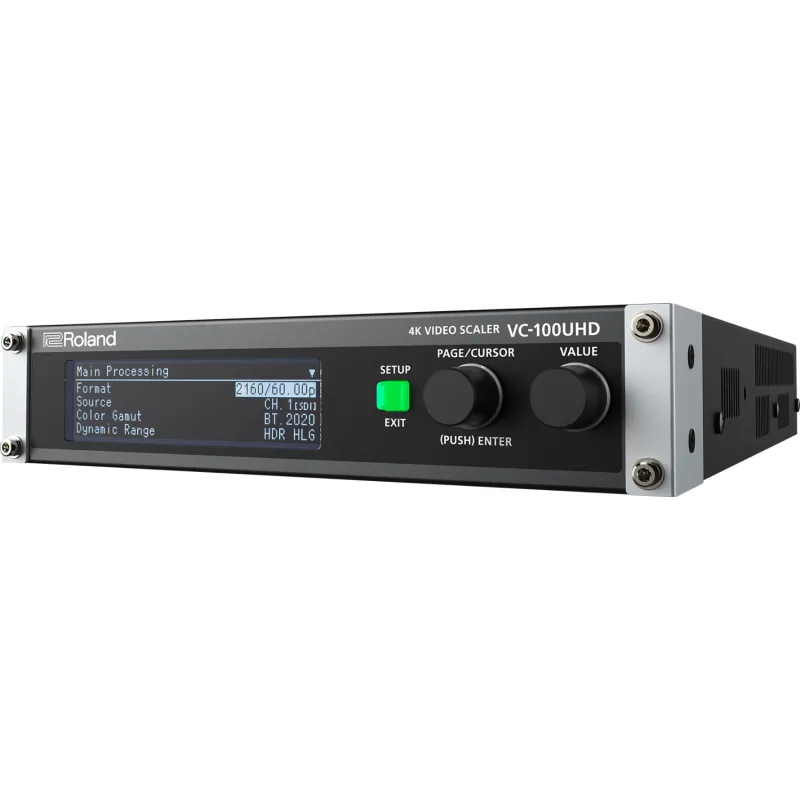

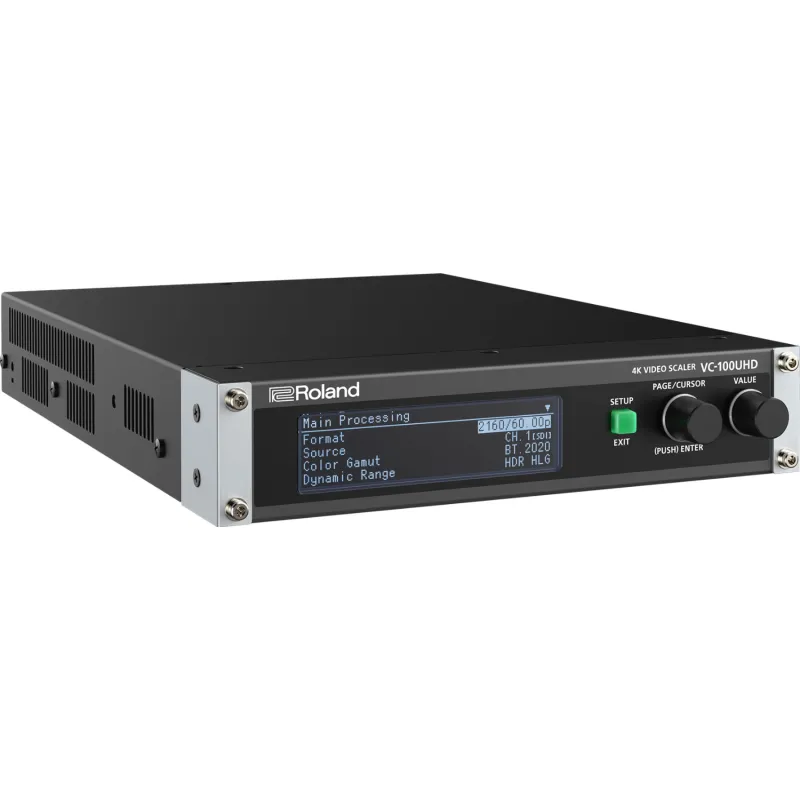

Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland's Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.
Key Features
- Professional A/V signal management in a compact and robust unit
- Features 12G-SDI and HDMI 2.0 I/O with Roland's Ultra Scaler video processing technology
- Internal YCbCr 444 10-bit lossless processing
- HDMI YCbCr 444 10-bit input/output
- Display processing for multiple audiences: 4K, HD, and web streaming
- High frame rate support at 100, 120, 144, 200, and 240 Hz with drop frame
- Advanced visual effects and image processing
- Region of Interest (ROI) switching via external USB numeric keypad
- Professional audio processing with flexible patching
- USB 3.0 webcam output for livestreaming broadcasts

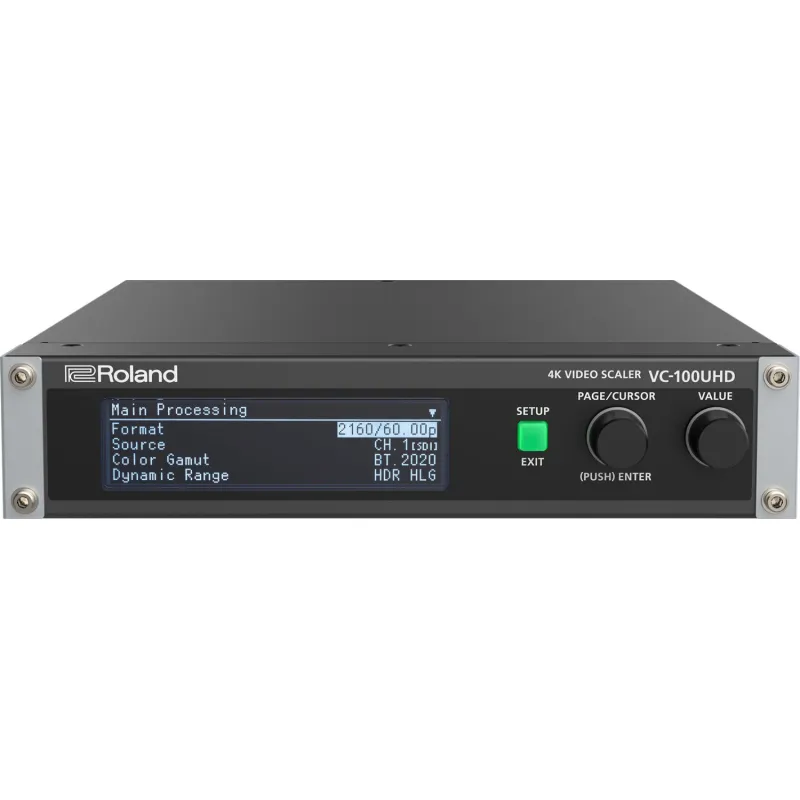

- Front-panel LCD
Performance

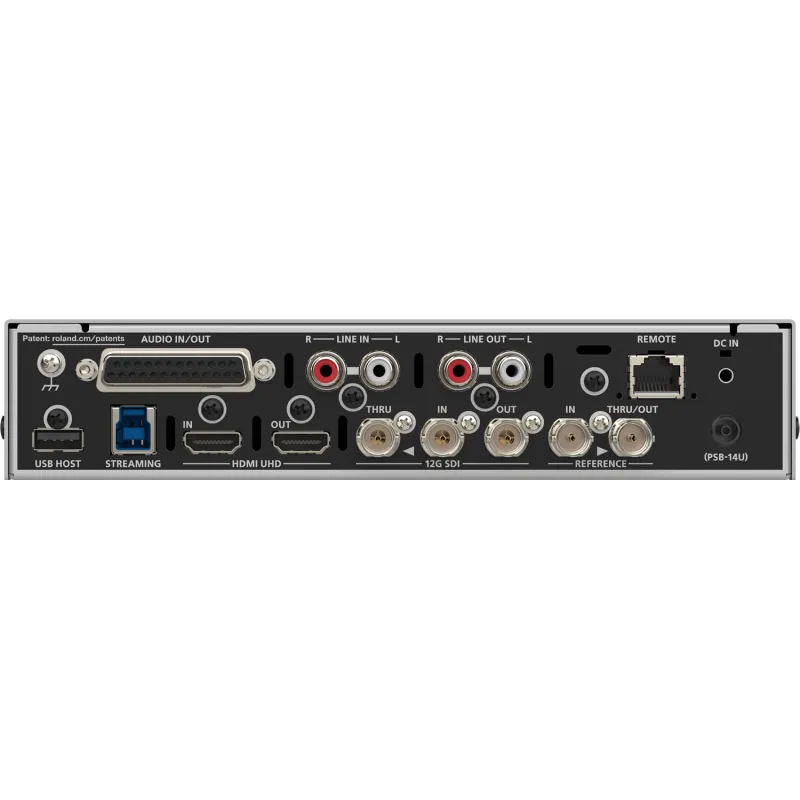

Using the VC-100UHD, it's a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays, and recorders, as well as USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.
Ultra Scaler Technology
The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.
High Frame Rate Handling
High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.
Visual Effects and ROI Functionality
Using the VC-100UHD's built-in visual effects, it's simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD's Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed.
With the VC-100UHD's built-in Region of Interest (ROI) function, you can easily produce multi-shot productions with a single 4K camera or zoom in and highlight presentation details. Creating an inviting viewer experience has never been easier; select any 4K video input source to zoom, move, crop, and scale up to eight ROI windows. Then, use a USB numeric keypad to switch windows during events like a PTZ camera.
