The Roland V-600UHD is a powerful 4K HDR multi-format video switcher that integrates Full HD and 4K sources with seamless scaling, 10-bit 444 color processing, and HDR support ideal for IMAG, live events, and professional video workflows.
Upgrade your video production capabilities with the Roland V-600UHD 4K HDR Multi-Format Video Switcher, engineered for seamless integration of Full HD and 4K sources in hybrid workflows. Designed to support simultaneous HD and UHD output, this advanced switcher allows you to gradually transition to a full 4K setup as needed without sacrificing compatibility or visual fidelity.
The V-600UHD preserves rich detail in nuanced lighting scenarios using HDR (High Dynamic Range) technology, while its 60 Hz frame rate support ensures smooth motion in live environments. With BT.2020 color gamut support and 10-bit 444 color processing, it delivers vivid, accurate color with reduced banding ideal for IMAG (Image Magnification), broadcast, or corporate productions.
Equipped with four HDMI 2.0 and two 12G-SDI inputs, the V-600UHD automatically scales incoming signals up to DCI 4K resolution. Outputs include three HDMI 2.0 and one 12G/3G-SDI, all capable of downscaling for HD displays while simultaneously supporting 4K. A customizable multiview lets you monitor all sources on a single screen, and dot-by-dot scaling ensures LED display compatibility without the need for external scalers.
Key Features
- Integrates HD and 4K video sources with simultaneous output
- Supports HDR, BT.2020, and 10-bit 444 color for superior image quality
- 4 HDMI 2.0 & 2 12G-SDI inputs with automatic scaling
- 3 HDMI 2.0 & 1 12G/3G-SDI outputs with downscaling support
- Multiview output and LED display dot-by-dot compatibility
- Ideal for live events, broadcast, IMAG, and professional AV setups
Video Processing
444 (Y/Pb/Pr), 10-bit
Input Connectors
- HDMI IN 14 HDMI Type A (HDMI 2.0)
- SDI IN 56 BNC (12G/3G/HD-SDI, SMPTE 2082, 424M, 292M)
- RGB IN 1 HD DB-15 (Analog RGB; selectable with menu)
Output Connectors
- SDI OUTPUT BNC (12G/3G-SDI, SMPTE 2082, 424M)
- HDMI OUT 13 HDMI Type A (HDMI 2.0)
- MULTI-VIEW HDMI Type A (HDMI 1.4)
Input Formats
- HDMI Video (CEA-861-F) 720p/50/59.94, 1080i/50/59.94, 1080p/50/59.94, 2160p/50/59.94 (UHD/DCI 4K)
- HDMI PC (VESA/CEA)
- 1024x768/60Hz, 1280x768/60Hz, 1280x1024/60Hz
- 1400x1050/60Hz, 1600x1200/60Hz
- 1920x1080/30/60Hz, 1920x1200/60Hz (RB)
- 3840x2160/24/30/60Hz, 4096x2160/24/30/60Hz
- RGB (VESA/CEA)
- 1600x1200/60Hz, 1920x1080/60Hz
- SDI (SMPTE)
- ST274 1080i/50/59.94, 1080p/50/59.94
- ST2036 2160p/50/59.94 (UHD 4K)
- ST2048 2160p/50/59.94 (DCI 4K)
- Still Images
- BMP max 4096x2160, 24-bit, uncompressed
- PNG max 4096x2160 (alpha not supported)
Output Formats
- HDMI Video (CEA-861-F)
- 1080p/50/59.94, 2160p/50/59.94 (UHD/DCI 4K)
- HDMI PC (CEA-861-F)
- 1920x1080/30/60Hz, 3840x2160/30/60Hz, 4096x2160/30/60Hz
- 1920x1080/30Hz available when Down Convert is enabled
- SDI (SMPTE)
- 1080p/50/59.94, 2160p/50/59.94 (UHD/DCI 4K)
Video Standards
- VESA DMT, VESA CVT, CEA-861-F
- Color Gamut Rec.709, Rec.2020
- Dynamic Range SDR, HDR PQ (HDR10), HDR HLG
Video Effects
- Transitions Mix, Cut, Wipe (9 patterns)
- Composition PinP, Key, PinP + Key (Luminance or Chroma Key)
- DSK PinP, Key, PinP + Key
- Others Output Fade, Freeze, Capture
Audio Processing
24-bit / 48 kHz
Audio Formats
- SDI IN/OUT Linear PCM, 24-bit / 48 kHz, 16 ch (SMPTE 299M)
- HDMI IN/OUT Linear PCM, 24-bit / 48 kHz, 2 ch
Audio Connectors
- AUDIO IN L/R XLR-3-31 (balanced)
- AUDIO OUT L/R XLR-3-32 (balanced)
- PHONES Stereo mini jack
Audio Specs
- Input Level +4 dBu (max +24 dBu), 15 k
- Output Level +4 dBu (max +24 dBu), 600
- Headphones 92 mW + 92 mW (32 ), 10
Audio Effects
- Matrix mixer
- Delay (1 ms steps, max 500 ms)
- Test tone output

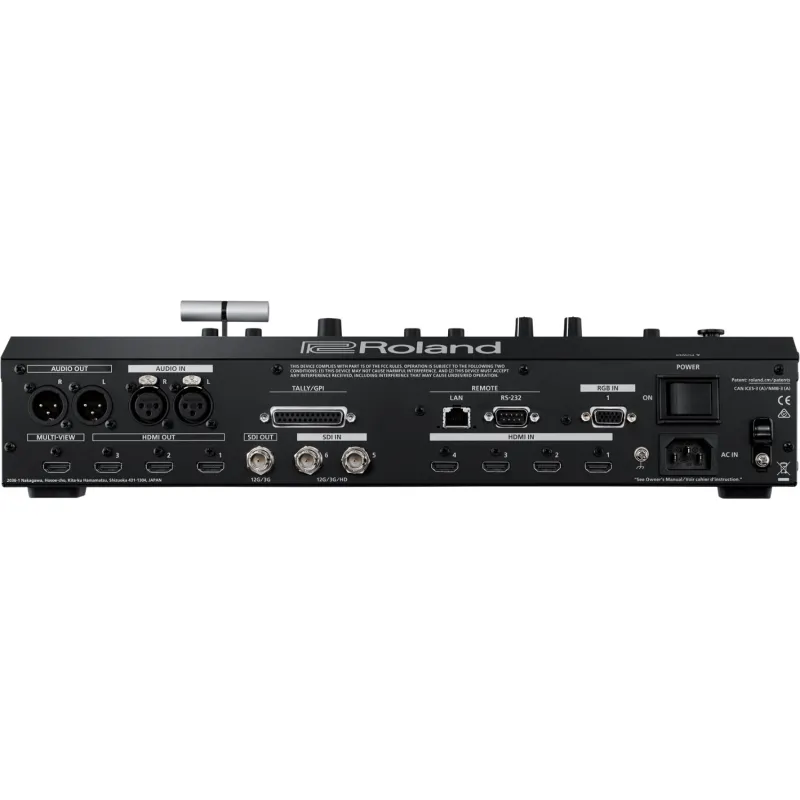

Other Connectors
- USB MEMORY USB A
- RS-232 DB-9 (Male, remote control)
- LAN RJ45, 100BASE-TX (remote control)
- TALLY/GPI DB-25 (Tally x16, GPI x8)
- XLR pinout 1 GND, 2 HOT, 3 COLD
Power Consumption
80 W
Operating Temperature
0°C / 32°F
Dimensions (W x D x H)
- 482 x 300 x 109 mm
- 19 x 11-13/16 x 4-5/16 in (with rack mount angles)
Weight (excl. AC adaptor)
- 5.3 kg / 11 lbs 11 oz (incl. rack mounts)
Accessories
- Owners Manual
- Power cord
- Rack-mount angles x2
