The Roland V-40HD is a multi-format live video switcher supporting HDMI, RGB/Component, and Composite inputs with independent scaling and HDCP compliance.

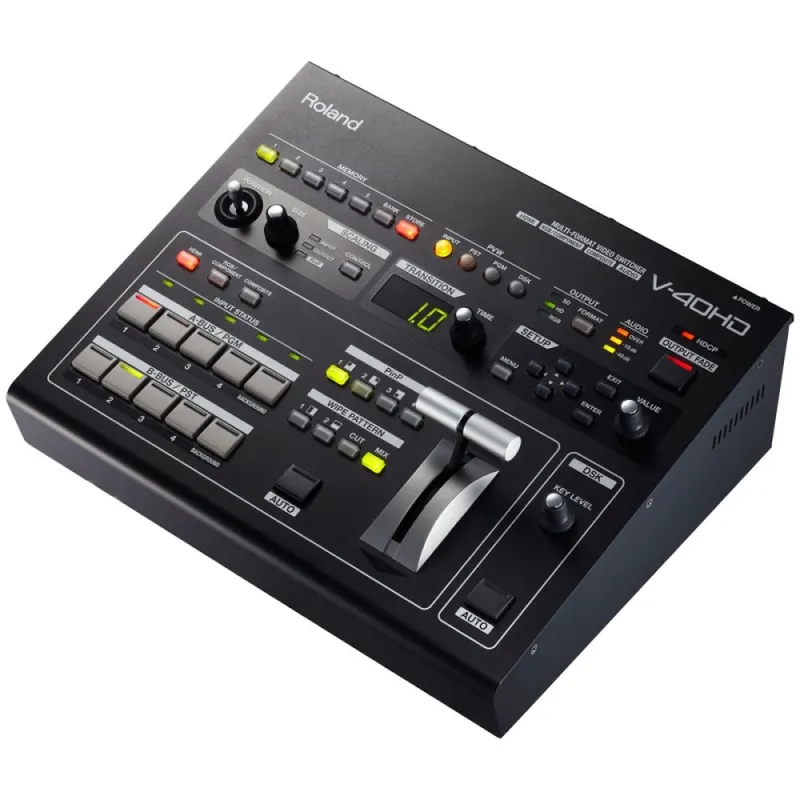

Roland V-40HD Multi-format Video Switcher

Product ID: 18899
€ 4265,46 tax incl.

By preorder with no delivery time known
SKU: 18899
Model: V-40HD
Condition: New product
Manufacturer: Roland
4265.46
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductVideo Mixer
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Roland V-40HD Multi-format Video Switcher

Roland V-40HD Multi-format Video Switcher

The Roland V-40HD is a multi-format live video switcher supporting HDMI, RGB/Component, and Composite inputs with independent scaling and HDCP compliance.

Write a review

Product details

Multi-Format Live Video Switching

The Roland V-40HD is a versatile multi-format live video switcher designed to handle a wide range of input sources including digital, analog, computer, and video formats. It supports popular HDMI cameras and computers, making it ideal for live events and installations requiring flexible source connectivity.

True Multi-Format Video Processing

Each input features a broadcast-quality scaler that independently adjusts the resolution of the source to match the chosen output resolution, eliminating the need to match input and output resolutions manually.

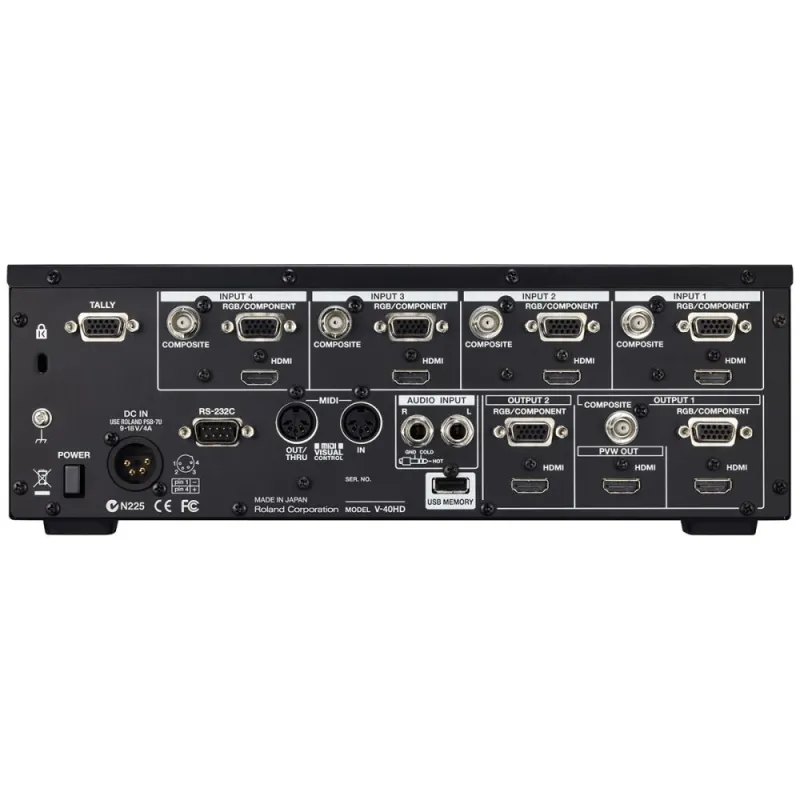

Input and Output Connectivity

  • Four input systems (Inputs 1-4), each with three connector types: HDMI, RGB/Component, and Composite, allowing connection of up to twelve video devices.
  • Output options include three systems: Output (HDMI, RGB/Component, Composite), Output 2 (HDMI, RGB/Component), and Preview (HDMI).

Supported Resolutions and Formats

  • Supports input/output resolutions up to 1080p at 60 Hz or 1920x1200 pixels.
  • Internal signal processing uses 4:4:4/10-bit for vivid, high-detail video sources.
  • Output signal processing is 4:2:2/8-bit.
  • HDCP compliant, enabling mixing of copy-protected content such as Blu-ray discs and game consoles with other sources.

HDCP Mode Features

  • Allows input and switching of commercial digital video sources encoded with HDCP digital copyright management.
  • Output in HDCP mode is limited to DVI-D/HDMI only; Component and Composite outputs are disabled.
  • Connected displays must support HDCP.

Audio Integration

The V-40HD can input analog audio sources such as background music or narration, mix and synchronize them with video, and output the combined signal via HDMI.

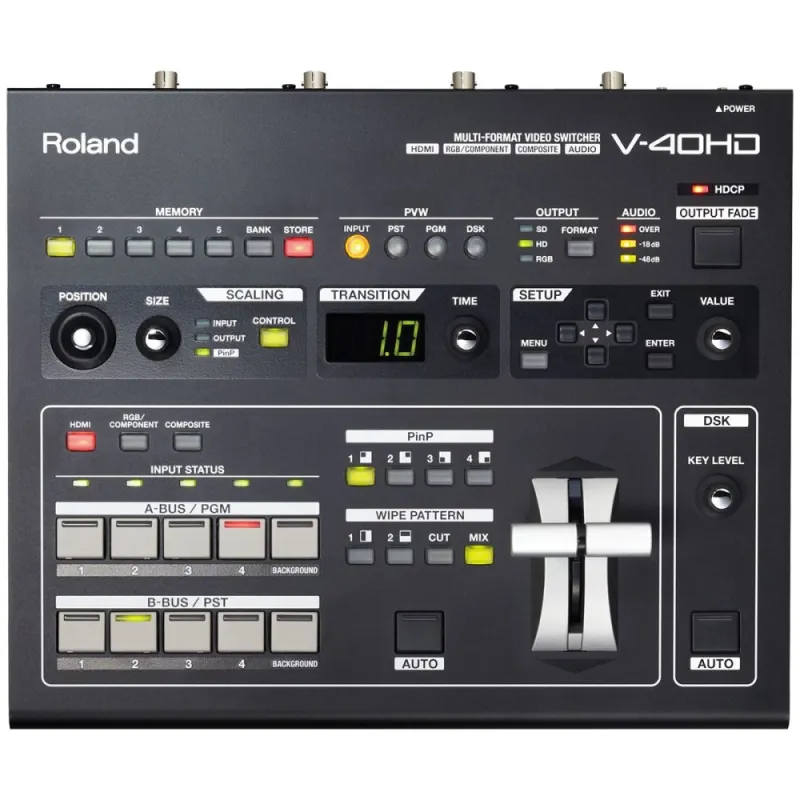

Input Features

  • Scaling and Zoom: Independent scaling and sizing adjustments for each input source.
  • Input Selectors: Easily switch between HDMI, RGB/Component, and Composite inputs for each channel with a single button press.
  • Input Connectors: HDMI supports up to WUXGA and 1080p with embedded audio; RGB/Component supports up to WUXGA and 1080p; Composite supports 480i or 576i.

Output Features

  • Output Selectors: Choose between SD, HD, or RGB output formats via button control.
  • Preview (PVW) Selectors: Select preview monitor display modes including four-way split screen, PST, PGM, or DSK.
  • Preview Output: Fixed resolution and refresh rate at 1920 x 1080 pixels, 60 Hz progressive scan; requires HDMI monitor supporting HDCP and 60p signals.
  • Output Connectors: HDMI (up to WUXGA, 1080p), RGB/Component (up to WUXGA, 1080p), Composite (480i or 576i). Note that in HDCP mode, RGB/Component and Composite outputs are disabled.

Additional Features

  • Input source multi-viewer output for convenient monitoring on an HDMI monitor.
  • Supports mixing of various video sources with background video or live camera feeds.
