Godox MoveLink Mini UC Kit 1 Wireless Microphone System

Wireless Technology and Features

• Operating frequency: 2.4 GHz wireless technology with diversity frequency
• Maximum operating range: 100 meters (328 feet)
• Maximum transmitters per band: 2
• Dynamic range: 90 dBA
• Signal-to-noise ratio (SNR): >65 dB
• Total harmonic distortion (THD): >5%

Receiver Specifications

• Internal antenna
• Two audio channels
• Audio inputs/outputs:
  • 1 x 3.5 mm TRS female balanced/unbalanced microphone input
  • 1 x 3.5 mm TRRS female balanced/unbalanced output
• Gain range: 33 to 43 dB
• Frequency response: 50 Hz to 20 kHz
• Connectivity: 1 x USB-C male (with included adapter)
• Power: Built-in rechargeable battery (150 mAh)
• Battery life: Approximately 8 hours
• Operating temperature range: 10 to 50 °C (14 to 122 °F)

Transmitter Specifications

• Frequency response: 50 Hz to 20 kHz
• Synchronization method: 2.4 GHz QPSK
• Internal antenna
• Power: Built-in rechargeable battery (100 mAh)
• Battery life: Approximately 6 hours
• Charging via USB-C
• Operating temperature range: 10 to 55 °C (14 to 131 °F)

Microphone Details

• Integrated sound field microphone
• Omnidirectional polar pattern
• Frequency response: 50 Hz to 16 kHz
• Signal-to-noise ratio: 65 dB
• Maximum sound pressure level (SPL): 110 dB SPL
• Total harmonic distortion: >5%

Additional Features

The receiver allows switching between two amplification levels. The transmitter offers attenuation and noise reduction options. A foam windshield on the transmitter reduces wind noise during outdoor recording. Both transmitter and receiver have built-in rechargeable batteries and can be recharged using the included charging case for on-the-go use.

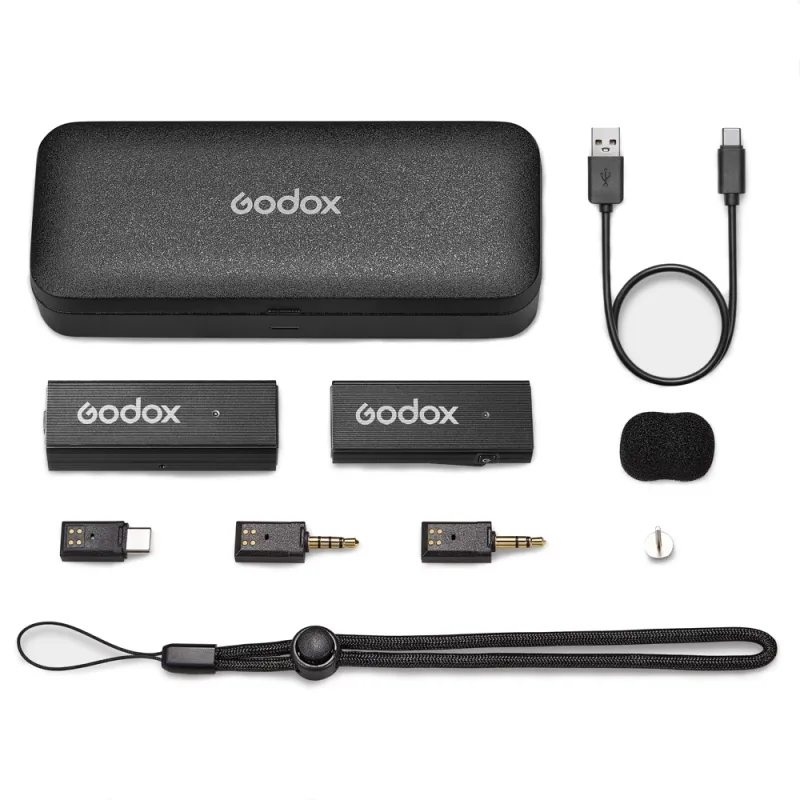

Included in the Kit

• 1 x MoveLink Mini RX Receiver
• 1 x MoveLink Mini TX Transmitter
• 1 x Charging Case
• 1 x USB A to USB C Data Cable
• 1 x 3.5 mm TRS Audio Adapter
• 1 x 3.5 mm TRRS Audio Adapter
• 1 x USB C Audio Adapter
• 1 x Wind Foam
• 1 x Wrist Strap
• 1 x Pin
