Canare L-3CFW flexible 3G/HD-SDI coaxial cable, by meter L-3CFW

Canare L-3CFW flexible 3G/HD-SDI coaxial cable, by meter L-3CFW

Write a review

Product details

Canare L-3CFW

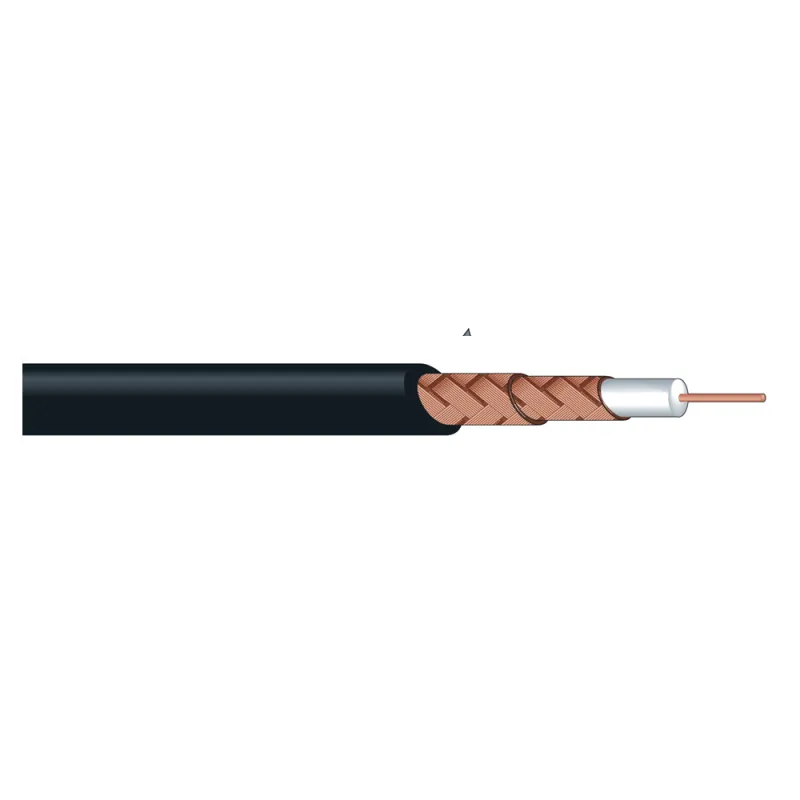

Canare L-3CFW is a low-loss, flexible, and durable 75-ohm coaxial cable designed for 3G/HD/SD-SDI applications, with an outer diameter of 5.8 mm. Price per meter.

Usage

  • Compliant with SMPTE 424M & 292M specifications
  • HDTV
  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications

  • Standard lengths: 100/200m
  • Sheath diameter: 5.8 mm
  • Cable weight: 5.1 kg/100m
  • Central conductor: 1/0.65 mm
  • Foam dielectric diameter: 3.10 mm
  • Resistance of central conductor: 5.5 /100m
  • Resistance of outer conductor: 0.7 /100m
  • Temperature range: -30C to +60C
  • Static capacitance: 33.1 pF/m
  • Attenuation: 19.4 dB/100m

Maximum Transmission Distance

  • 288m at 177 Mbps
  • 230m at 270 Mbps
  • 197m at 360 Mbps
  • 158m at 540 Mbps
  • 60m at 1.5 Gb/s
  • 60m at 3.0 Gb/s

Values are based on SMPTE standards and may vary with the receiving device. Our criteria ensure cable attenuation does not exceed SMPTE cable loss at 1/2 frequency.
