Canare L-4CFB installation 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable. Price per meter
Canare L-4CFB installation coaxial SDI cable, metrage CNRL4CFB
Product ID: 52853
SKU: 52853
Model: CNRL4CFB
Ean: 0000000000000
Condition: New product
Manufacturer: Canare
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 100 |
Product details

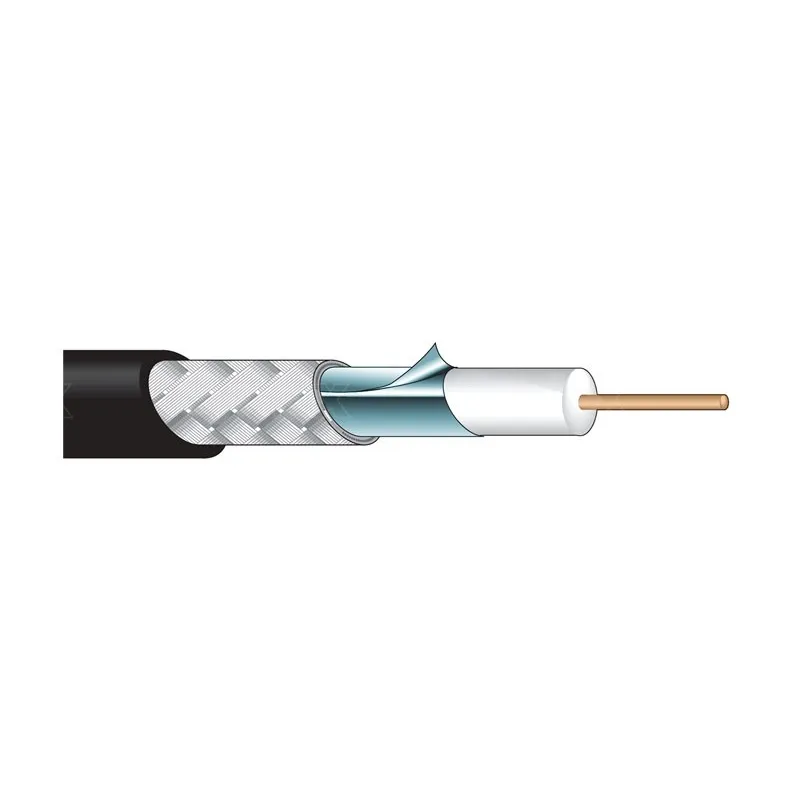

Canare L-4CFB is a 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable with a central copper wire conductor, a tightly woven tinned copper braid and an aluminum foil with excellent shielding capability. The Canare L-4CFB cable is suitable for fixed installations.
Usage:
- HD-Serial Digital Video
- Satellite Technology
- HDTV
- Broadband equipment
- SMPTE 259M, 292M,424M
Features:
- Copper wire central conductor
- PE foam dielectric
- Tinned copper braid + 100% Alu foil
- Dielectric layers separated from conductor
- 100% precision coaxial cable - continuously variable frequency test
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 6.1
- Cable weight in kg/100m: 4.9
- Total diameter of central conductor in mm: 0.8
- Foam dielectric - diameter in mm: 3.7
- Resistance of central conductor in Ω/100m:3.6
- Resistance of outer conductor in Ω/100m:1,0
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 23,6
- Impedance in Ω: 75
