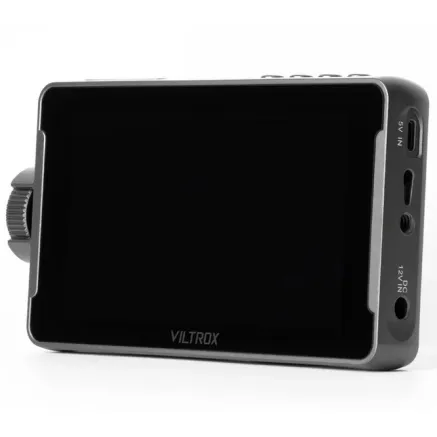

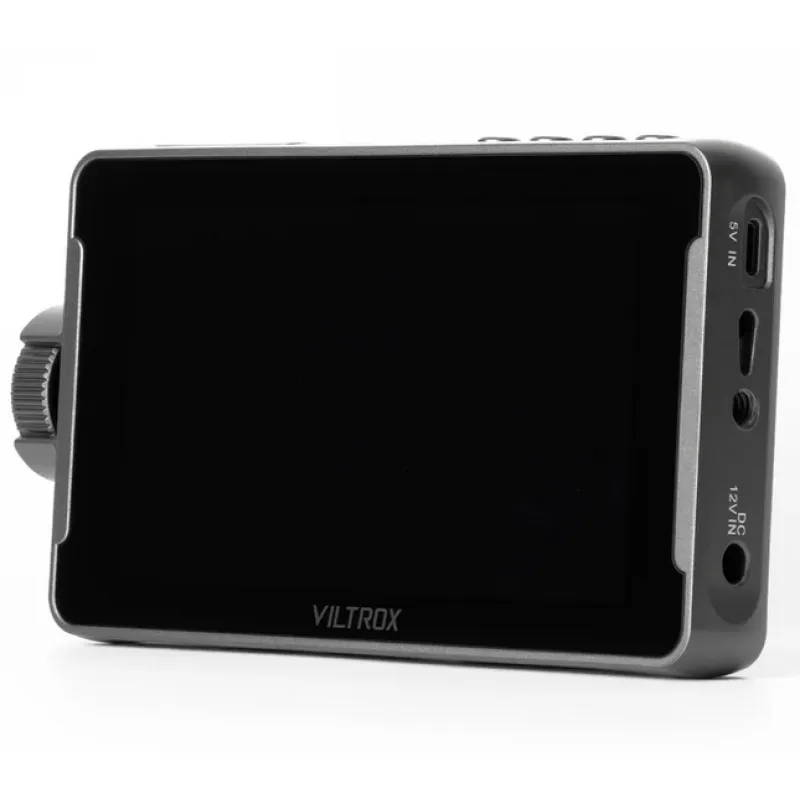

Viltrox DC-550 Lite 5.5-Inch Full HD Monitor for Filmmakers DC-550 LITE

Feelworld S55E

The Feelworld S55E is a super lightweight 5.5-inch on-camera monitor designed for mirrorless cameras, gimbals, and mobile production. Featuring a sharp 1920×1152 IPS touchscreen, DCI/UHD 4K60 HDMI input and output, HDR support, and advanced monitoring tools like waveform, vectorscope, and 3D LUTs, it delivers professional monitoring in a compact and versatile form factor.

The Feelworld S55E 5.5" 4K HDMI Onboard Monitor is built for creators who need reliable, professional monitoring without adding weight to their setup. Weighing just 175 g, it is perfectly suited for handheld rigs, gimbals, and mirrorless cameras. The monitor features a 5.5-inch IPS touchscreen display with a 1920 × 1152 resolution, 500 nits brightness, and a 1000:1 contrast ratio, delivering crisp images with accurate color reproduction and wide viewing angles.

Supporting DCI 4K and UHD 4K up to 60fps via HDMI input and output, the S55E integrates seamlessly into modern video workflows. It offers HDR monitoring for enhanced dynamic range and supports built-in and custom 3D LUTs, which can be uploaded via the Mini-USB port for accurate on-set color preview. A comprehensive set of professional exposure and focus tools—including waveform, histogram, vectorscope, false color, focus peaking, zebra, anamorphic de-squeeze, and pixel-to-pixel zoom—ensures precise image evaluation in any shooting scenario.

The monitor provides flexible power options with support for Sony L-series or Canon LP-E6 batteries, as well as 12V DC input and 8V DC output for powering cameras or accessories. Additional usability features include 16:9 and 9:16 framing markers for traditional and social media content, three customizable function buttons, and support for 12 menu languages. The S55E ships with a sunshade and tilt arm, making it production-ready straight out of the box.

Key Features:

• 5.5" IPS touchscreen monitor
• 1920 × 1152 resolution
• HDMI input and output up to DCI/UHD 4K60
• HDR monitoring support
• Built-in and custom 3D LUT support
• Waveform, histogram, vectorscope, false color, focus peaking
• Anamorphic de-squeeze and framing markers (16:9 & 9:16)
• Extremely lightweight (175 g), ideal for gimbals
• Multiple power options: L-series, LP-E6, DC in/out
• Includes sunshade and tilt arm

• FEELWORLD S55E Monitor
• Sunshade
• Tilt Arm (1/4"-20)
• User Manual

• Display Size: 5.5" / 14.0 cm
• Resolution: 1920 × 1152
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• Aspect Ratio: 16:9
• Panel Type: IPS LCD
• Color Depth: 8-bit (16.7 million colors)
• HDMI: 1× HDMI input, 1× HDMI output
• Audio: 3.5mm headphone output
• LUT Support: Yes (via Mini-USB)
• Power Consumption: 9 W
• Power Input: 7–24 VDC
• Battery Support: Sony L-series / Canon LP-E6
• Dimensions: 142 × 87.2 × 27.5 mm
• Weight: 175 g
