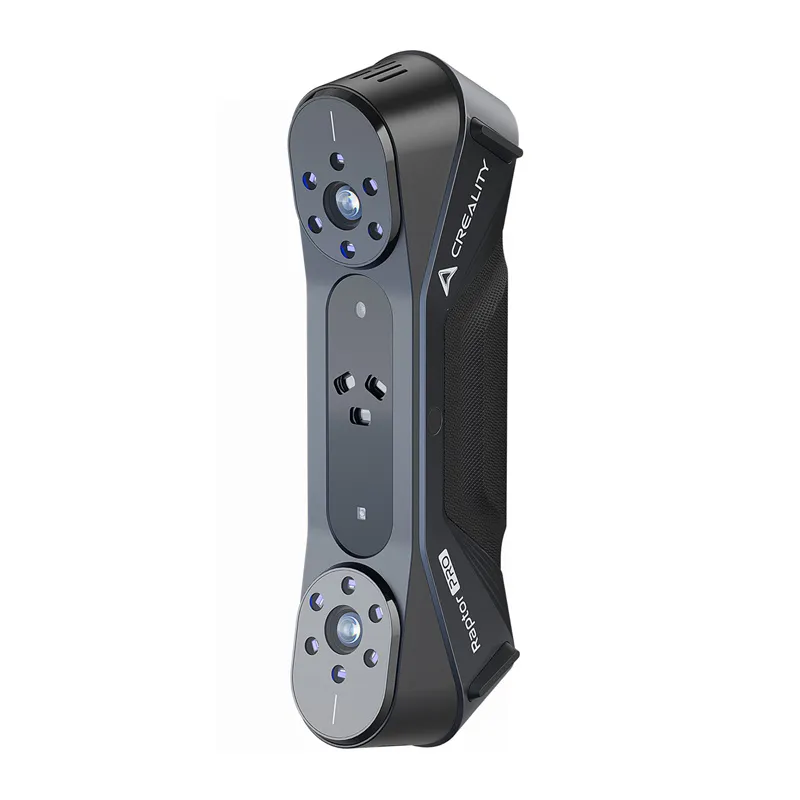

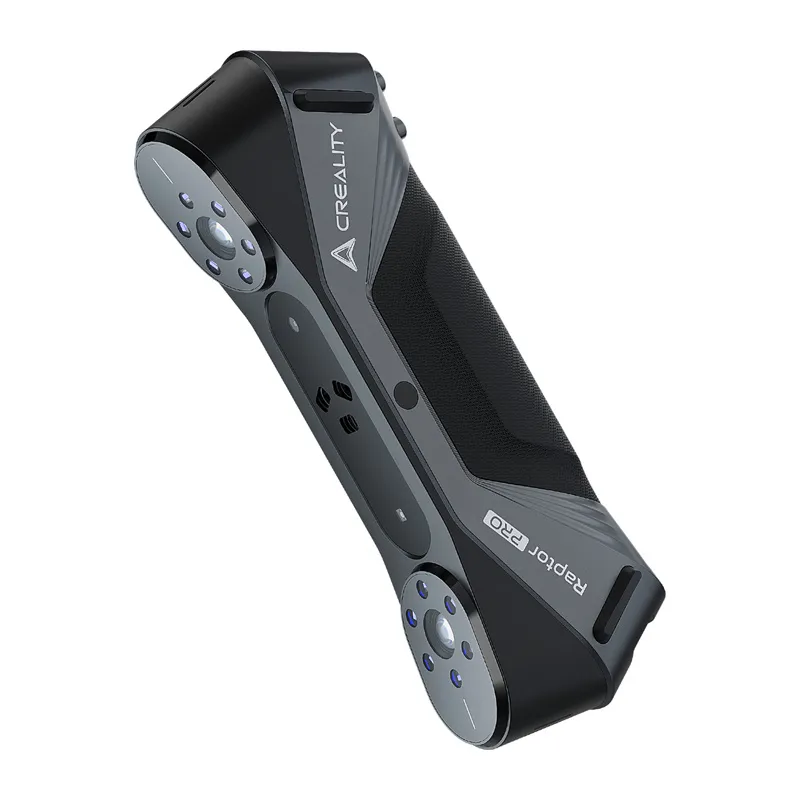

Creality CR-Scan Raptor Pro 3D Scanner

Creality CR-Scan Raptor Pro 3D Scanner

The CR-Scan Raptor Pro 3D scanner is an advanced measuring tool designed for professional engineering, automotive, industrial, and design applications. It combines three scanning technologies: blue laser lines, near-infrared (NIR) structured light, and full-color RGB capture, offering exceptional accuracy, high speed, and tremendous flexibility. This solution was designed by Creality for users who expect reliable 3D data reading without unnecessary limitations.

Dual Blue Laser System

The CR-Scan Raptor Pro is equipped with two blue light scanning modes, which can be seamlessly switched between during operation. 22 cross laser lines provide wide area coverage and allow you to quickly scan medium and large objects, reducing the number of passes and unnecessary repetitions. In turn, 7 parallel laser lines, each only 0.1 mm thick, are designed for scanning fragments that require maximum detail, ideal for capturing sharp edges and fine details.

Versatility and Scanning Comfort with NIR

Near-infrared (NIR) structured light technology enables scanning at speeds of up to 30 frames per second and is ideal for objects with varied geometries. The combination of NIR light and blue laser lines allows scanning of items ranging in size from 5 x 5 x 5 mm to 4000 x 4000 x 4000 mm, covering everything from small technical components to large industrial parts, molds, automotive parts, and even entire human figures.

Professional-Grade Volumetric Accuracy

The CR-Scan Raptor Pro offers volumetric accuracy of 0.02 mm + 0.08 mm/m, suitable for tasks requiring high measurement precision. The temperature compensation algorithm ensures stable operation and repeatable results during long scanning sessions. With performance up to 660,000 points per second and scanning frequency up to 60 frames per second, working with the scanner is smooth, fast, and efficient, even for large objects.

Markerless and Spray-Free Scanning

Thanks to 3D imaging technology with spot matching, the scanner allows scanning without markers for objects rich in geometric features. It supports scanning of black and metallic surfaces without matting sprays, significantly reducing preparation time and simplifying the process.

Fast and Accurate Human Scanning

The special Face & Body mode uses a dedicated face mapping algorithm that accurately reproduces details and facilitates hair scanning. A full human body scan can be completed in as little as 2 minutes, making the Raptor Pro ideal for medical, ergonomic, clothing, and design applications.

Stability and Resilience in All Conditions

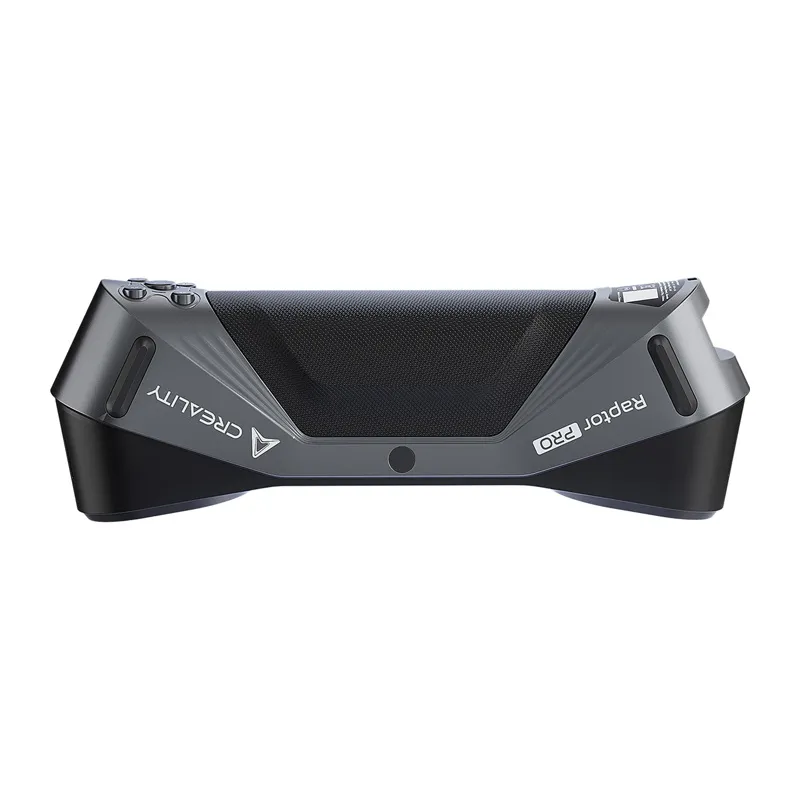

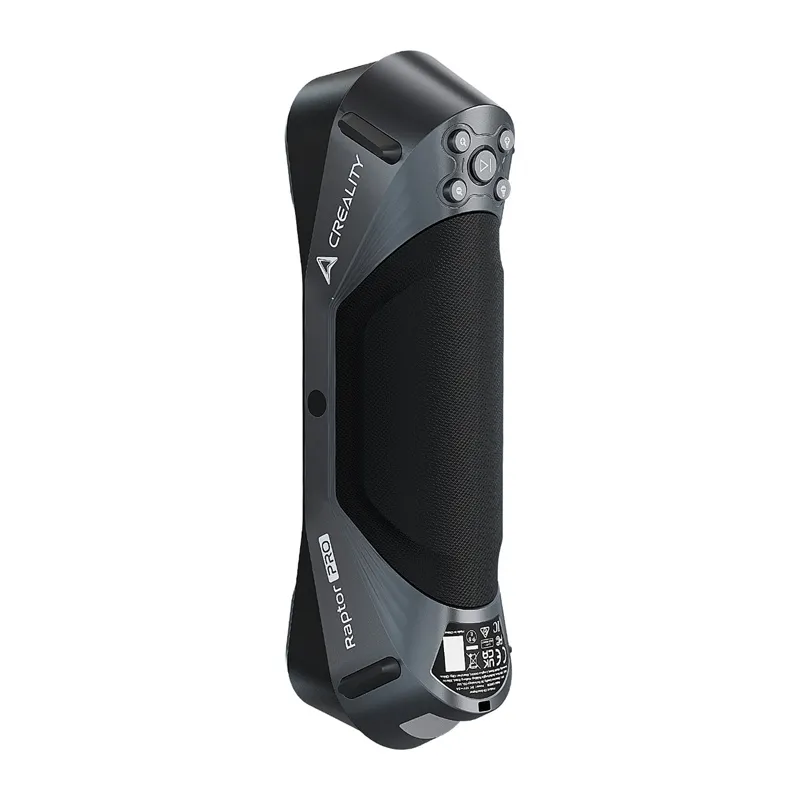

One-Shot 3D imaging technology provides natural image stabilization and reduces tracking loss during manual scanning. The quick rewind function improves operational smoothness. The blue laser is highly resistant to ambient light, allowing outdoor scanning up to 50,000 lux in 7-line mode and up to 100,000 lux in 22-cross-line mode. The ring light indicator, physical control buttons, and non-slip housing enable quick and intuitive use. A detachable lanyard increases safety during handheld and mobile scanning.

Advanced Optics and 3D Camera

The imaging system features a 2.3 MP 3D camera with a low-distortion lens (<5), 20 mm depth of field, and 9-element glass construction. The metal tube and lens mount ensure mechanical stability and long life, resulting in exceptional geometric data quality. The built-in RGB camera enables 24-bit full-color scanning in all modes. Blue light illuminates during laser scanning, while white light enhances color texture brightness and readability for realistic surface reproduction.

Professional CrealityScan Software

CrealityScan software offers ease of use with clear tutorials for beginners, one-click model processing, advanced editing tools, and efficient point cloud and mesh data management. Data can be imported directly into leading inspection and design programs such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect. One-click integration streamlines quality control, reverse engineering, CAD design, and model preparation for further processing or 3D printing.

Included Accessories

• Scanner
• USB 3.0 data transfer cable (Type-C/Type-A)
• Power adapter
• Adapter
• High-precision glass calibration plate
• Reflective markers (6 mm and 3 mm diameter)
• Lanyard
• USB-C adapter
• Cleaning cloth
• Waterproof case
• User manual

General Specifications

• Manufacturer: Creality
• Model: Raptor Pro
• Compatible Operating Systems: Windows 10/11 (64-bit) with i7-Gen10 or newer, Nvidia graphics card (8 GB VRAM or above), 32 GB RAM or more; Minimum: i7-Gen7, Nvidia graphics card (6 GB VRAM), 16 GB RAM; macOS 11.7.7 or newer with Apple M1/M2/M3 processors, 16 GB RAM or more
• Wireless scanning: Supported with wireless scanning accessories
• Weight: 405 g
• Dimensions: 215 mm x 50 mm x 74 mm
• Port: USB Type-C / USB 3.0
• Power supply: 12 V, 2 A
• Supported file formats: OBJ, STL, PLY, ASC
• IMU: Supported

7 Parallel Blue Laser Lines Mode

• Accuracy: Up to 0.02 mm
• Volumetric accuracy: 0.02 mm + 0.08 mm/m
• Scanning speed: 420,000 measurements per second
• 3D resolution: 0.05–2 mm
• Maximum scanning speed: 60 frames per second
• Minimum scanning volume: 5 mm x 5 mm x 5 mm
• Single capture range: 270 mm x 170 mm at 300 mm distance
• Working distance: 160 mm–400 mm
• Color mapping: Supported
• Alignment mode: Marker-based
• 3D imaging camera resolution: 1920 x 1200 pixels
• Color supplementary light: 12 white LEDs
• Outdoor scanning capability: Up to 50,000 lux

22 Intersecting Blue Laser Lines Mode

• Accuracy: Up to 0.02 mm
• Volumetric accuracy: 0.02 mm + 0.08 mm/m
• Scanning speed: 660,000 measurements per second
• 3D resolution: 0.05–2 mm
• Maximum scanning speed: 60 frames per second
• Minimum scanning volume: 5 mm x 5 mm x 5 mm
• Single capture range: 270 mm x 170 mm at 300 mm, 341 mm x 232 mm at 400 mm, 397 mm x 290 mm at 500 mm
• Working distance: 200 mm–550 mm
• Color mapping: Supported
• Alignment mode: Marker-based
• 3D imaging camera resolution: 1920 x 1200 pixels
• Colored supplementary light: 12 white LEDs
• Outdoor scanning capability: Up to 100,000 lux

NIR Mode (Near-Infrared Structured Light)

• Accuracy: Up to 0.075 mm
• Volumetric accuracy: 0.075 mm + 0.1 mm/m
• Scanning speed: 3,580,000 measurements per second
• 3D resolution: 0.1–2 mm
• Maximum scanning speed: 30 frames per second
• Minimum scanning volume: 150 mm x 150 mm x 150 mm
• Single capture range: 630 mm x 550 mm at 1000 mm distance
• Working distance: 170 mm–1000 mm
• Color mapping: Supported
• Alignment modes: Marker, geometry, texture
• 3D imaging camera resolution: 1920 x 1200 pixels
• Colored fill light: 12 white LEDs
• Outdoor scanning capability: Up to 30,000 lux
