Canare GS-6

Canare GS-6 is a specially designed Oxygen Free Copper 18 AWG cable for connecting guitars, basses, or keyboards to amplifiers, mixers, effects pedals, and other outboard signal processing gear. It features low capacitance and low series resistance for improved frequency response (flat to 50kHz). The cable preserves a bright, ringing characteristic sound, even with HI-Z guitar pickups over long runs. Its proprietary double Carbon/Braid Copper shield construction eliminates microphonic handling noise, making it ideal for stage use where amplifiers are often at maximum volume. It is also highly recommended for Amp Head to Speaker Cabinet leads.

Applications

• Microphones
• Portable Applications
• Audio Rack Wiring
• PA Systems
• Audio Patch Cords

Features

• Braided Copper Shield
• Flexible in Extreme Cold Weather
• Cross Linked PE Insulation
• Reduced Handling Noise
• Rejects EMI and RFI
• 10 Matte Color Jacket Selections

Mechanical Specifications

• Model: GS-6
• Standard Length: 328 ft (100 m), 656 ft (200 m)
• Weight: 22 lbs (10 kg)
• Nominal O.D.: 0.228 in (5.8 mm)
• PVC Jacket Nominal Thickness: 0.039 in (1.0 mm)
• Brittle Point: -56°F (-49°C)
• Number of Conductors: 1
• Insulation Type Thickness: PE 33.5 mil
• Conductor AWG: OFC-18 (127/3.94) 1550 mil²

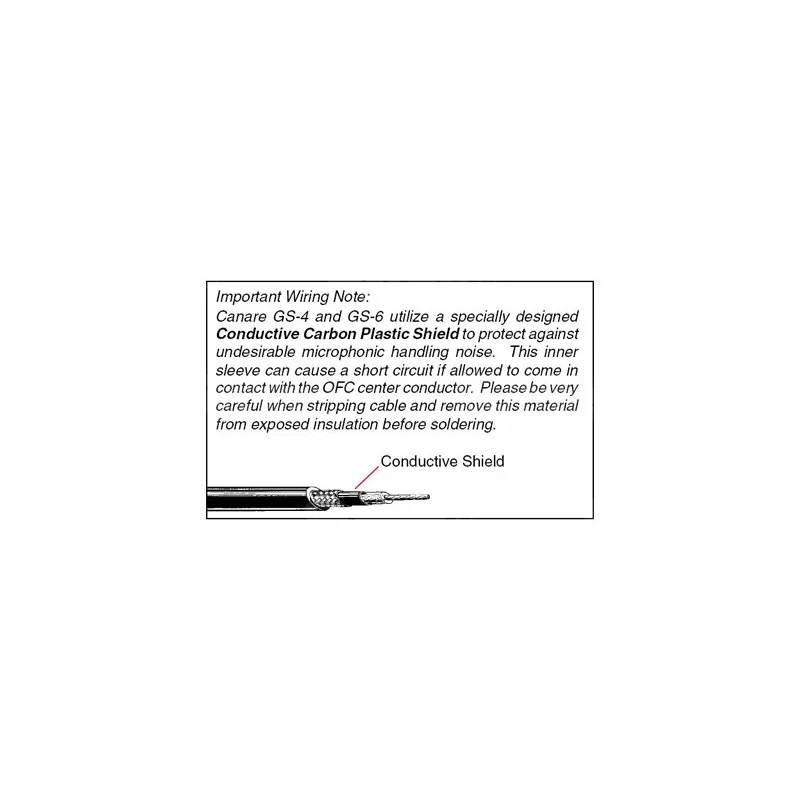

• Shield Coverage: Braid + Carbon Sleeve

Electrical Performance

• Conductor D.C.R.: <5.6 ohm/1000ft (<1.8 ohm/100m)
• Shield D.C.R.: <7.6 ohm/1000ft (<2.5 ohm/100m)
• Nominal Capacitance: 160 pF/m
• Nominal Impedance: -
• Nominal Attenuation: -
• Group Delay Time: -

Colors Available

• Black
• Blue
• Brown
• Gray
• Green
• Orange
• Purple
• Red
• White
• Yellow
