Premium balanced audio cable with Canare L-2T2S, 30m length, XLR to 6.3mm TRS.

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 30m

Product ID: 8918
€ 91,95 tax incl.
20-30
SKU: 8918
Model: I-2TS-M/TRS-BLK-30
Ean: 8586027491639
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductAudio Cable
ConnectorXLR to 3.5mm
Connections3.5mm to 6.3mm
ColorBlack
Lenght, m30
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 30m

Infinitek L-2T2S microphone cable 6.0mm XLR (M) / JACK TRS 6.3mm 30m

Premium balanced audio cable with Canare L-2T2S, 30m length, XLR to 6.3mm TRS.

Write a review

Product details

Canare XLR-M to JACK 6.3mm Black is a premium balanced audio cable.

The audio cable is assembled from Canare L-2T2S high quality two wire microphone cable with a 6.0mm diameter sheath.

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimized handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Canare L-2T2S Cable Technical Specifications

  • Standard manufactured lengths in (m) 100/200
  • Cable weight in kg/100m 4.6
  • Sheath diameter (overall diameter) in mm 6.0
  • AWG 23
  • Material and thickness of outer insulation in (mm) PVC (1.00)
  • Breaking point in (C) -49
  • Number and colour of conductors 2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm 60/0.08
  • Shielding factor >94
  • Conductor resistance in /100m <6.4
  • Shielding resistance in /100m <3.1
  • Capacitance between blue and white conductors in pF/m 70
  • Capacitance between conductors and shielding in pF/m 106
  • Impedance in 88

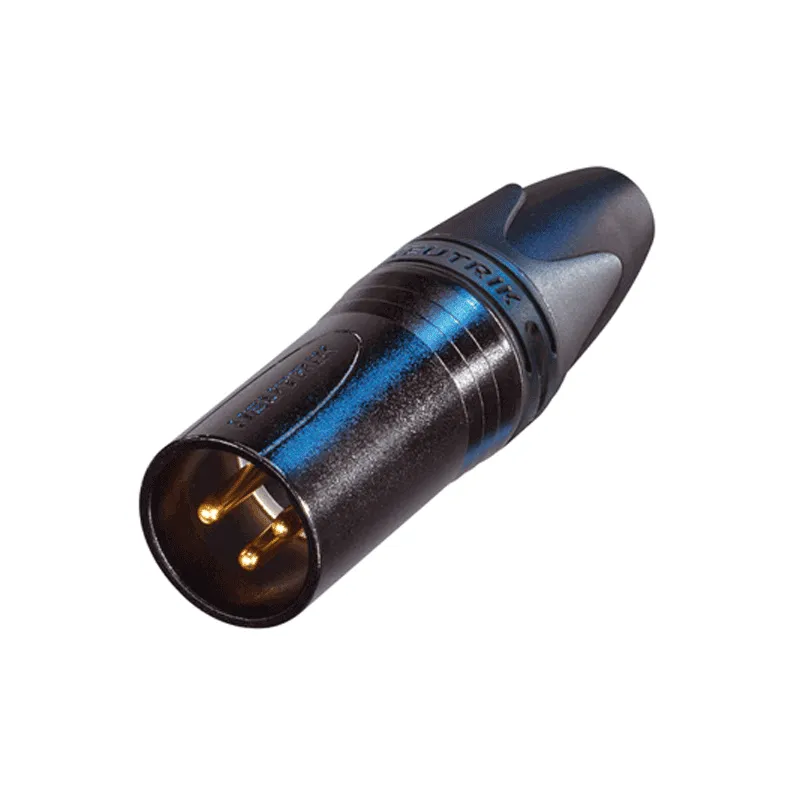

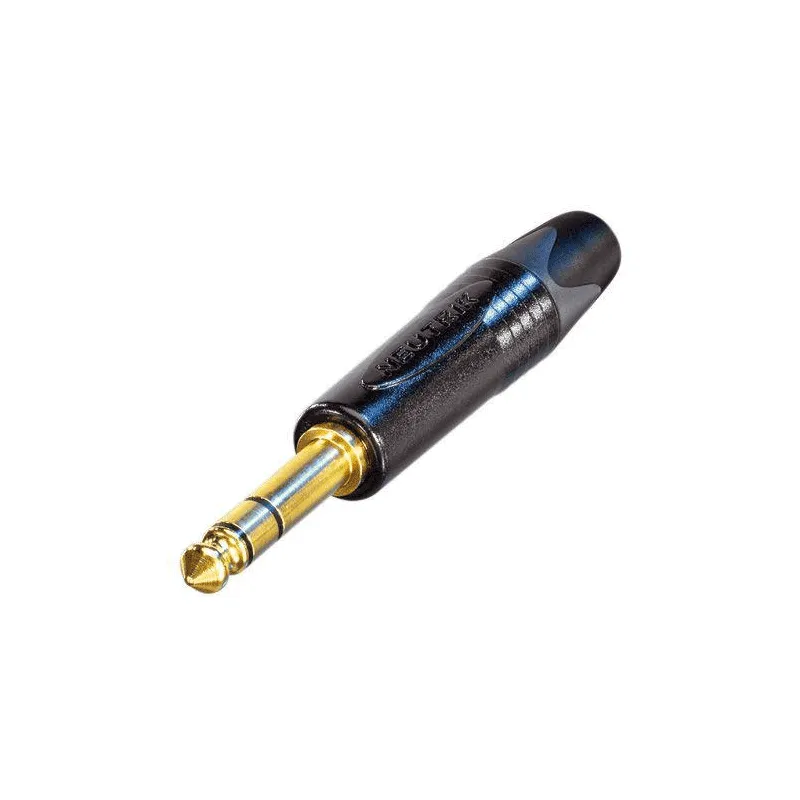

Technical specifications of Neutrik XX-B connectors

  • Capacitance 4 pF
  • Contact resistance 3 m
  • Rated voltage 1min 1.5 kVdc
  • Insulation resistance > 10 G
  • Rated current per 1 contact 16 A
  • Rated voltage 50 V
  • Cable diameter 3.5 - 8.0 mm
  • Force required to connect connectors 20 N
  • Force required to disconnect connectors 20 N
  • Lifetime > 1000 connection cycles
  • Conductor max. 2.5 mm, max. 14 AWG
  • Soldering
  • Cable cap Polyurethane
  • Contact surface treatment 0.2 m Au layer on 2 m Ni
  • Contact material Bronze (CuSn8)
  • Polyamide (PA 6.6 30 GR)
  • Lock Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body Zinc diecast (ZnAl4Cu1)
  • Connector body finish black chrome
