Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.

The audio cable is assembled from Canare L-2T2S high quality two wire microphone cable with 6.0mmdiameter sheath .

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimised handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Canare L-2T2S Cable Technical Specifications:

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm:6.0
  • AWG:23
  • Material and thickness of outer insulation in (mm):PVC (1.00)
  • Breaking point in (°C):-49
  • Number and colour of conductors:2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0,08
  • Shielding factor:>94%
  • Conductor resistance in Ω/100m: <6.4
  • Shielding resistance in Ω/100m:<3.1
  • Capacitance between blue and white conductors in pF/m:70
  • Capacitance between conductors and shielding in pF/m:106
  • Impedance in Ω:88

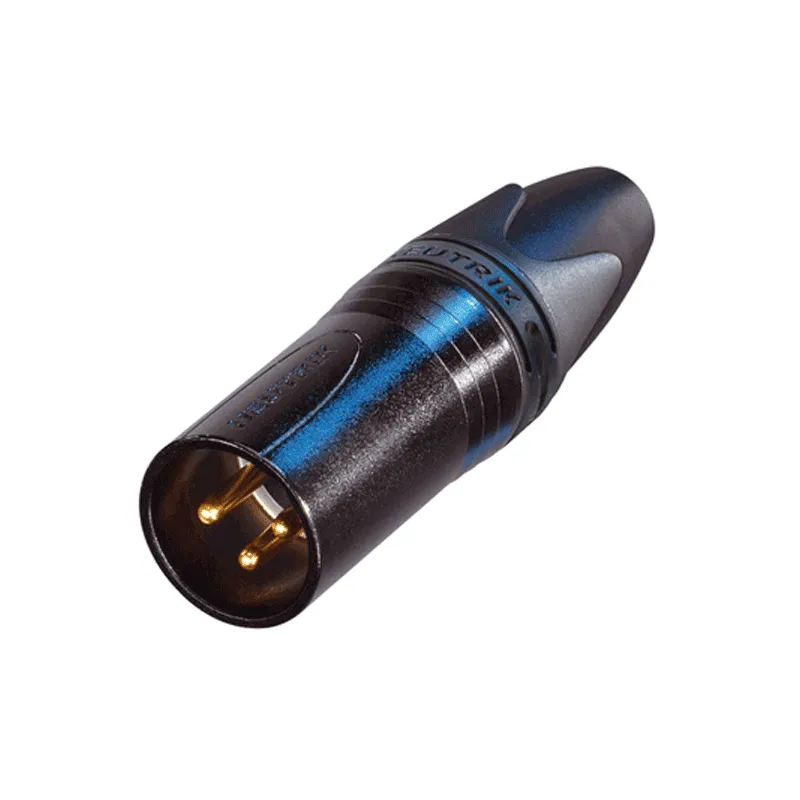

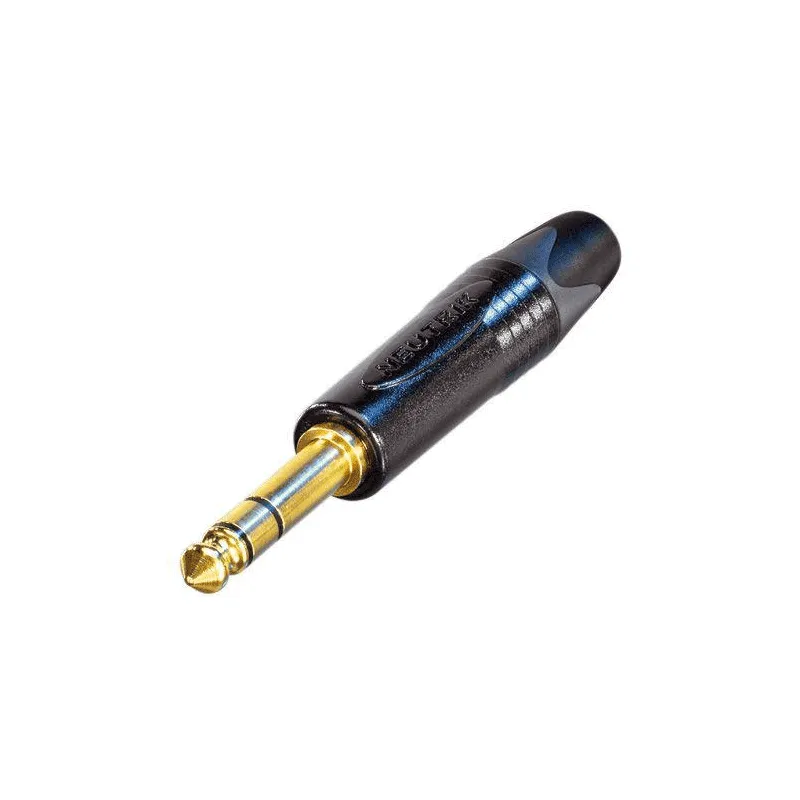

Technical specifications of Neutrik XX-B connectors:

  • Capacitance:≤ 4 pF
  • Contact resistance:≤ 3 mΩ
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 GΩ
  • Rated current per 1 contact:16 A
  • Rated voltage:50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors:≤ 20 N
  • Force required to disconnect connectors:≤ 20 N
  • Lifetime:> 1000 connection cycles
  • Conductor: max. 2.5 mm², max. 14 AWG
  • Soldering
  • Cable cap:Polyurethane
  • Contact surface treatment:0.2 µm Au layer on 2 µm Ni
  • Contact material:Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome

L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 30m, BLK

Produkta kods: 8918
€ 91,95 ar PVN
20-30
SKU: 8918
Modelis: I-2TS-M/TRS-BLK-30
EAN: 8586027491639
Stāvoklis: Jauns
Ražotājs: Infinitek
