Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.

The audio cable is assembled from Canare L-2T2S high quality two wire microphone cable with 6.0mmdiameter sheath .

  • Copper braided shielding
  • Flexible even in extremely cold weather
  • Cross-linked PE (polyethylene) insulation
  • Minimised handling noise
  • EMI (electromagnetic interference) and RFI (radio frequency interference) suppressed

Canare L-2T2S Cable Technical Specifications:

  • Standard manufactured lengths in (m): 100/200
  • Cable weight in kg/100m: 4.6
  • Sheath diameter (overall diameter) in mm:6.0
  • AWG:23
  • Material and thickness of outer insulation in (mm):PVC (1.00)
  • Breaking point in (°C):-49
  • Number and colour of conductors:2 / 1 x blue, 1 x white
  • Number and diameter of cores per conductor in mm: 60/0,08
  • Shielding factor:>94%
  • Conductor resistance in Ω/100m: <6.4
  • Shielding resistance in Ω/100m:<3.1
  • Capacitance between blue and white conductors in pF/m:70
  • Capacitance between conductors and shielding in pF/m:106
  • Impedance in Ω:88

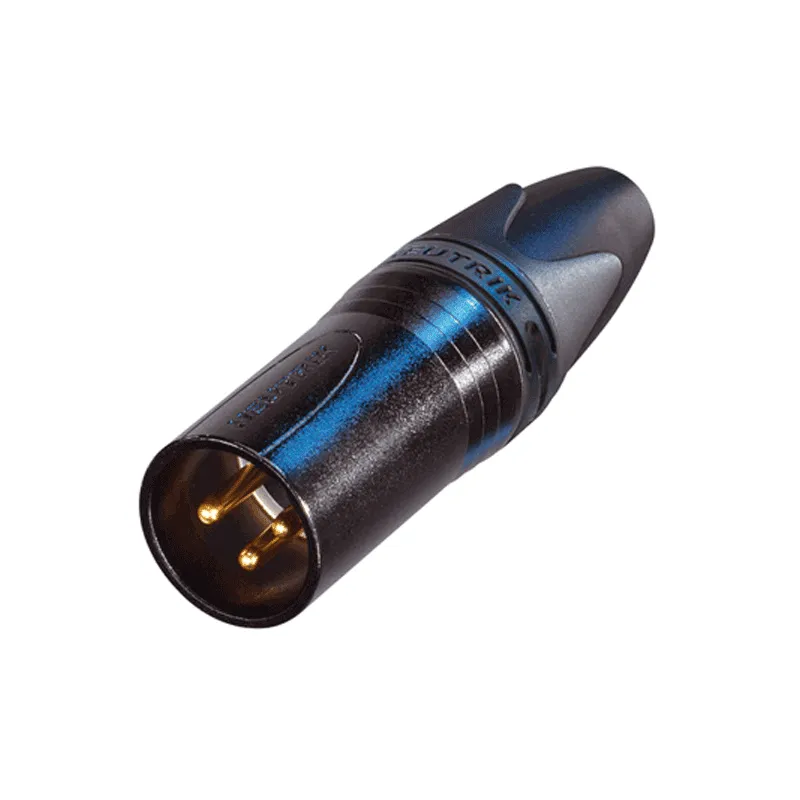

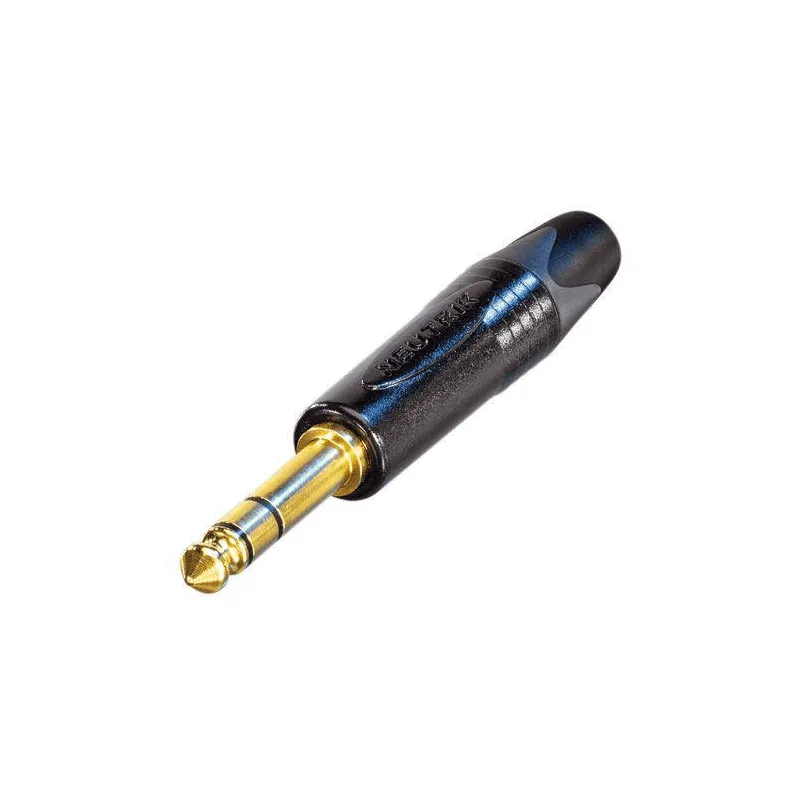

Technical specifications of Neutrik XX-B connectors:

  • Capacitance:≤ 4 pF
  • Contact resistance:≤ 3 mΩ
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 GΩ
  • Rated current per 1 contact:16 A
  • Rated voltage:50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors:≤ 20 N
  • Force required to disconnect connectors:≤ 20 N
  • Lifetime:> 1000 connection cycles
  • Conductor: max. 2.5 mm², max. 14 AWG
  • Soldering
  • Cable cap:Polyurethane
  • Contact surface treatment:0.2 µm Au layer on 2 µm Ni
  • Contact material:Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome

L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 45m, BLK

Produkta kods: 38974
€ 125,45 ar PVN
20-30
SKU: 38974
Modelis: I-2TS-M/TRS-BLK-45
EAN: 8586027491660
Stāvoklis: Jauns
Ražotājs: Infinitek
Apskatīt līdzīgus produktus
Apskatīt līdzīgus produktus

AI assistant Mākslīgā intelekta asistents

Šī ir mūsu jaunās asistenta tērzēšanas beta versija, kas spēj atbildēt gan uz standarta, gan sarežģītiem jautājumiem par produktu un veikala darbību.

vai pajautājiet par
