Blackmagic Design Blackmagic ATEM Micro Camera Panel - Portable CCU Control Panel SWPANELCCU1
Condition: New product
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Video Mixer |
| Connector | USB-C |
| Connector | Bluetooth |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

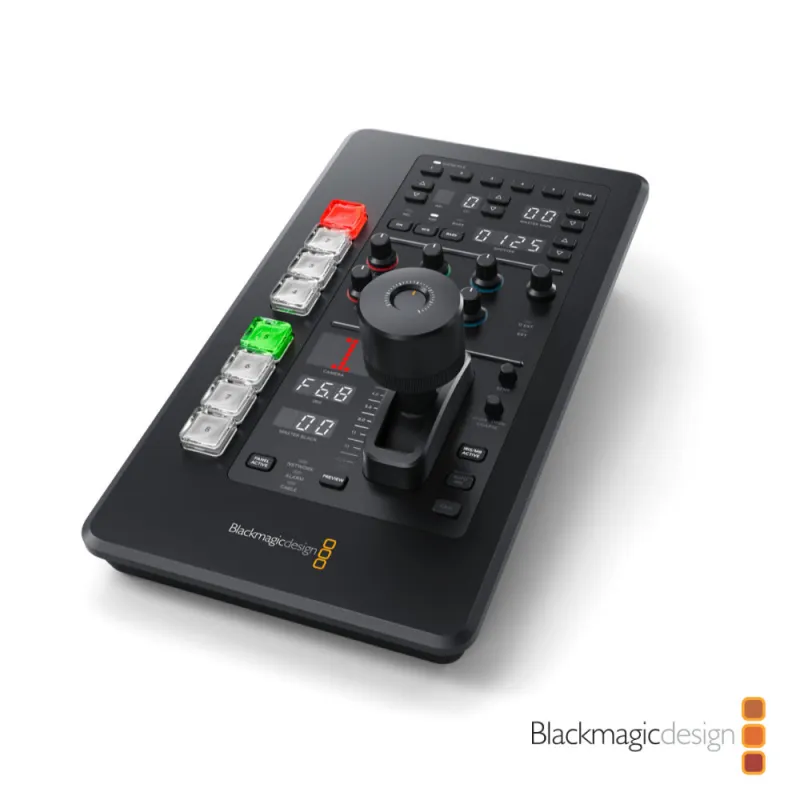

ATEM Micro Camera Panel
The ATEM Micro Camera Panel is a portable device designed for high-end broadcast CCU controls. It allows you to manage iris, pedestal, shutter, white balance, master gain, RGB balance, and more for up to 8 cameras from a single panel. Connectivity options include Bluetooth and USB-C to ATEM Software Control.
Compatibility
This panel works seamlessly with Blackmagic Studio, URSA Mini, and Broadcast Cameras, enabling remote control of camera settings, tally indicators, and built-in DaVinci color correction. Control commands are transmitted via a single SDI cable, allowing for adjustments in focus, iris, and zoom on supported lenses.
Integration with ATEM Control Panels
Connecting the ATEM Camera Control Panel to your ATEM Constellation is straightforward, with pre-assigned network settings. The Ethernet loop-through feature allows for easy interconnection of multiple panels, enhancing your broadcast production setup. The ATEM Micro Camera Panel can be used across different ATEM switcher models, making it versatile for various jobs.
- ATEM Micro Camera Panel
- Welcome wallet with QR code for software download
- 1 x USB-C cable
Specifications
- Camera Selection Buttons: 8 assignable NKK buttons
- Camera Number Display: Green (off air), Red (on air)
- Setup: White and black balance setup
- 3 Axis Joystick: 1
- Preview Button: 1
- Iris Control: Auto Iris On, Coarse control
- Iris Range: f32 to f1.2
- Gain Range: -12dB to +32dB
- ND Filters: 0, 2, 4, 6
- Shutter Range: 1/24 to 1/2000
- White Balance Range: 2500K to 10,000K
- Recallable Scenes: 5 per camera
- Panel Active: Protects settings
Software
Software Applications: The ATEM Micro Panel controls the ATEM Software Control Panel on the host computer.
