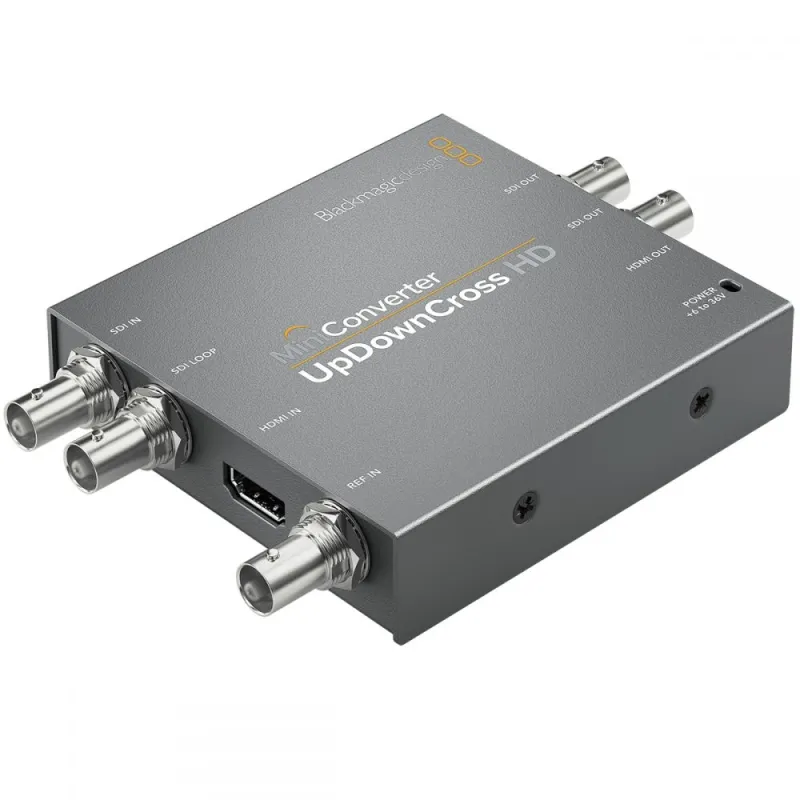

Blackmagic Design Mini Converter UpDownCross HD

Broadcast Quality Standards Conversion

The Blackmagic Mini Converter UpDownCross HD enables conversion between any SD or HD video formats via SDI and HDMI input and output connections. It also provides automatic scaling of computer resolutions to standard broadcast formats, ensuring seamless integration with various broadcast equipment.

High-Quality Conversion with Teranex Algorithms

This affordable converter uses low latency, high-quality Teranex conversion algorithms to deliver broadcast-grade results. Users simply select the desired output format, and the input format is automatically converted, protecting valuable equipment by always sending the correct video output signal.

Effortless HDMI to SDI Integration

Connecting HDMI computers to professional SDI equipment is straightforward, as the converter automatically scales and converts the HDMI output from computers to the correct broadcast standard without requiring changes to the computer's display settings.

Technical Specifications and Features

• Multi-rate 3G-SDI connections compatible with all SD and HD equipment and video formats up to 1080p60, supporting Level A and B devices.

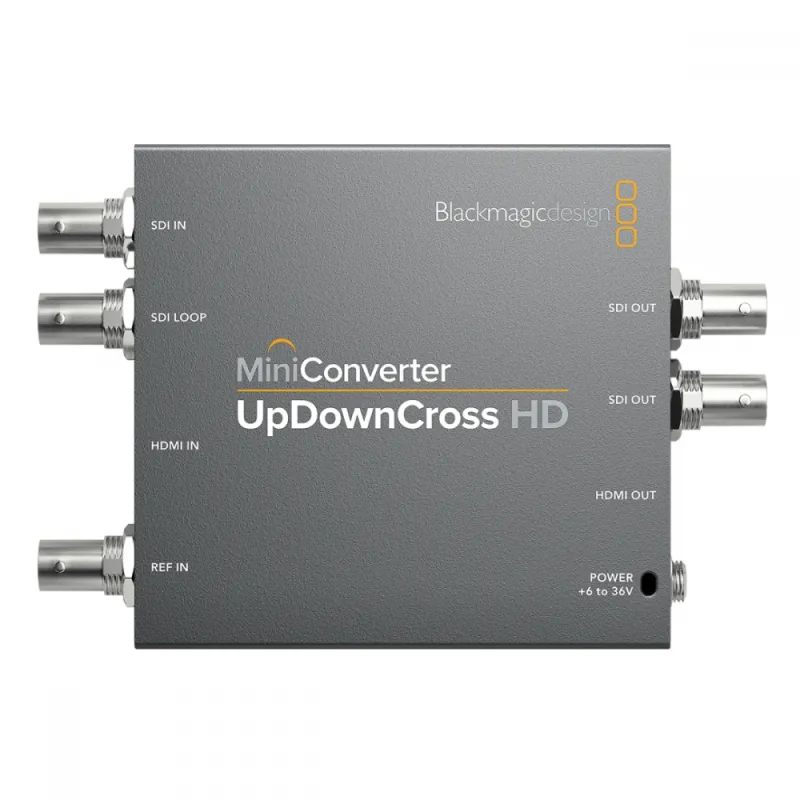

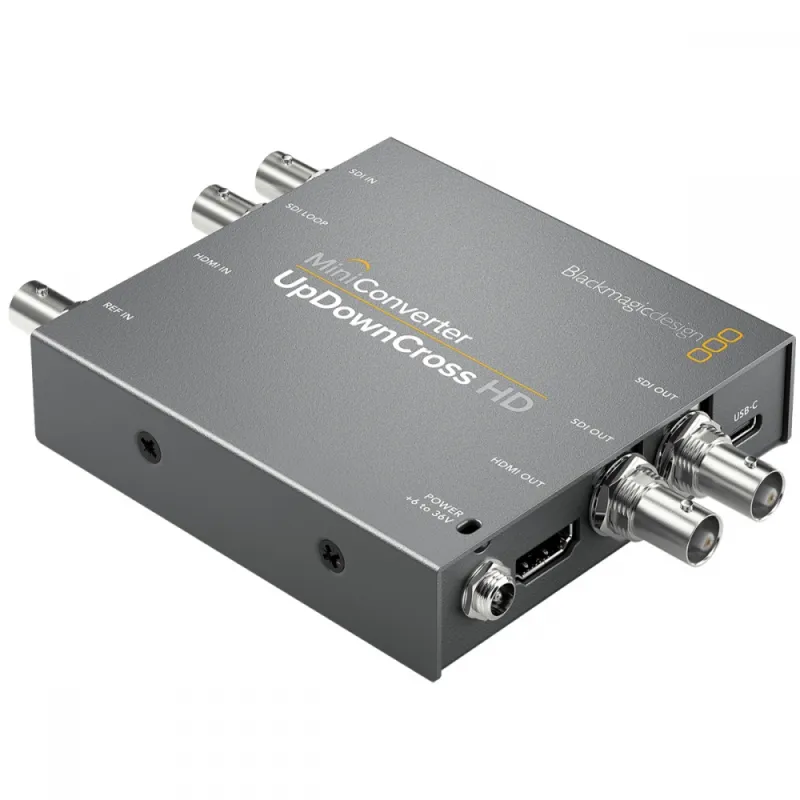

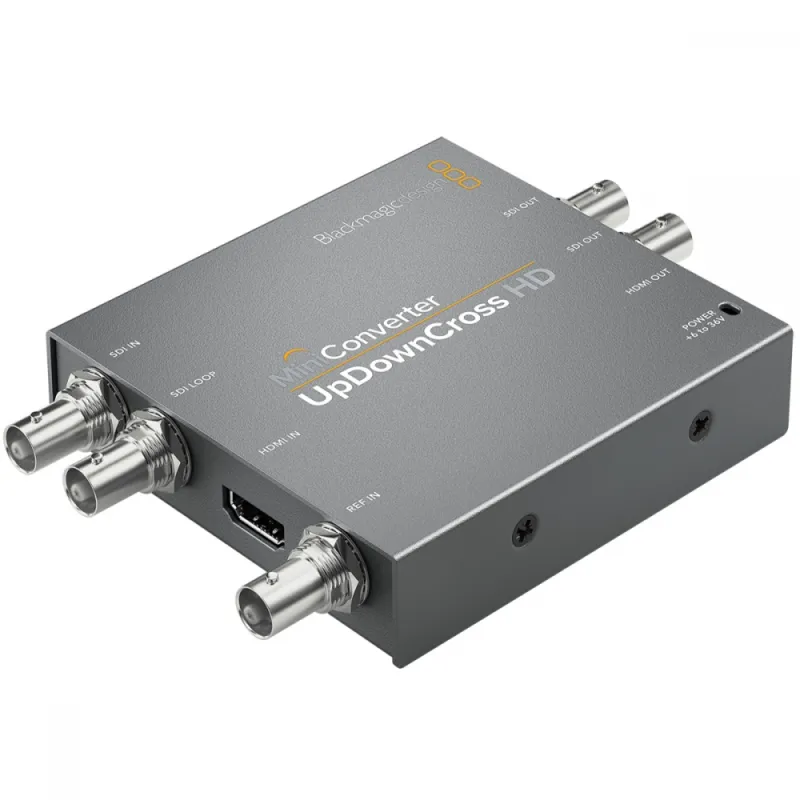

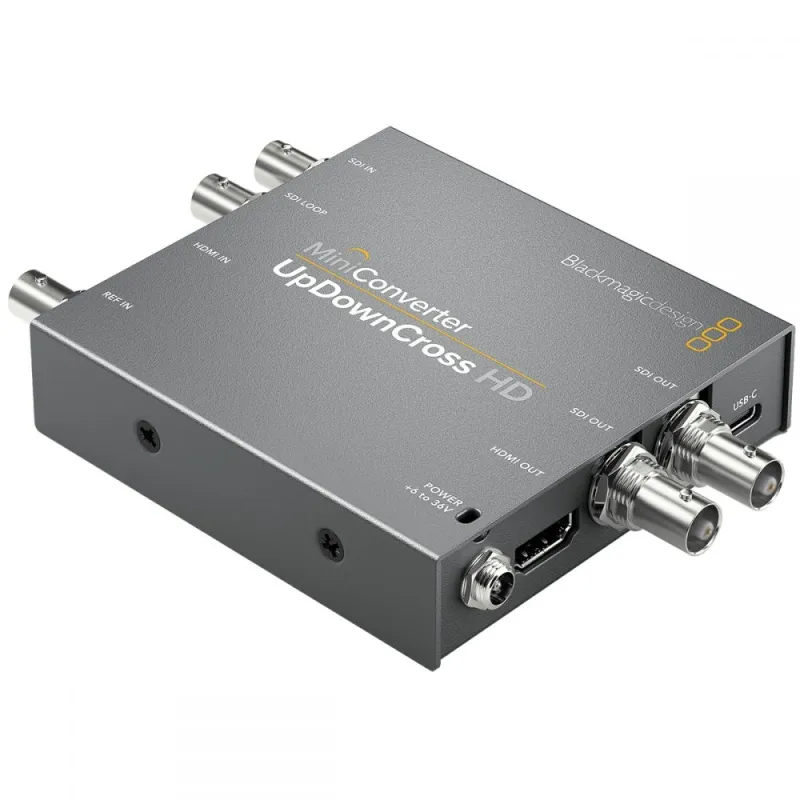

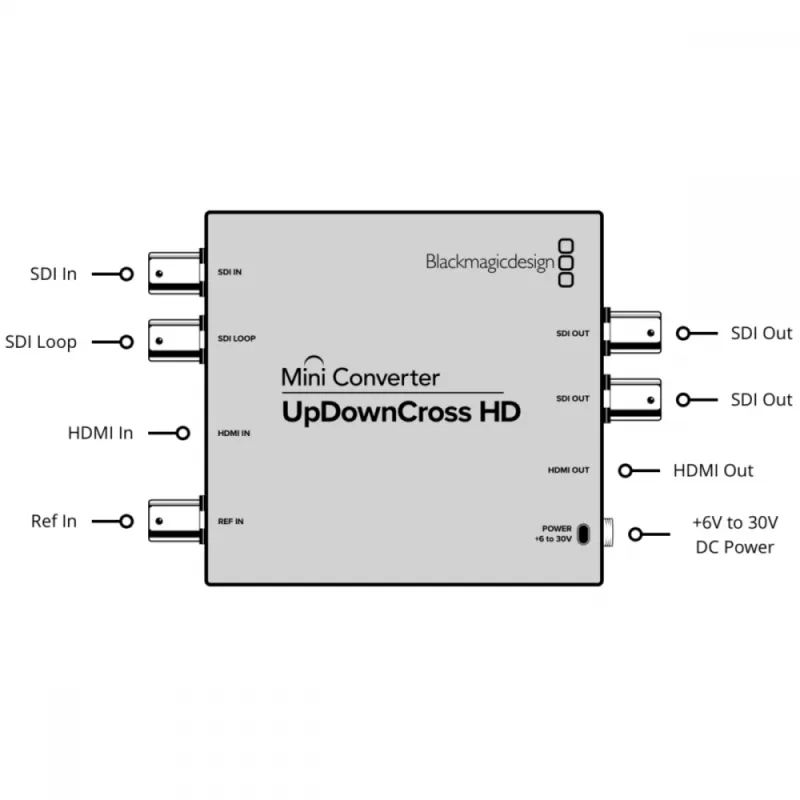

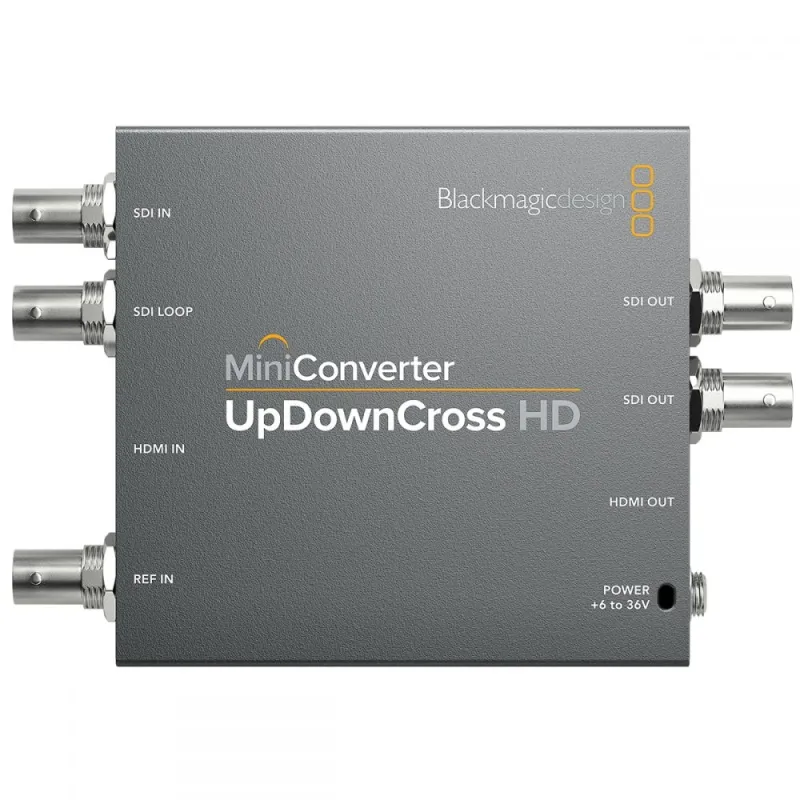

• One 3G-SDI input with loop output bypassing processing, one HDMI input, reference input, two 3G-SDI outputs, and one HDMI output.
• Built-in re-sync on 3G-SDI connections to match reference input video timing signal.
• Extremely low SDI jitter and high-quality multi-tap video filters for maintaining signal integrity over longer cables.
• Automatic audio delay based on conversion performed, with audio embedded back into the signal for perfect synchronization with video.

Power Supply and Build

Includes a universal power supply with international socket adapters and a screw lock connector to prevent accidental disconnection of the power cord.

Product Family and Compatibility

Part of the Blackmagic Mini Converters family, which includes Micro Converters and advanced models with expanded features. The range supports 3G, 6G, and 12G-SDI models compatible with SD, HD, and Ultra HD formats up to 2160p60. Additional support includes balanced analog and AES/EBU audio, redundant inputs, analog video, optical fiber, and more.
