Blackmagic Design Mini Converter UpDownCross HD

Blackmagic Mini Converter UpDownCross HD

Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format using high quality Teranex algorithms! Simply set the output format you need and the input format is automatically converted, protecting your equipment from receiving an incorrect signal. It’s also perfect for connecting HDMI computers to SDI projectors because it scales the computer’s video to the broadcast television output standard that you choose. Mini Converter UpDownCross HD features multi rate 3G-SDI connections for working in all formats up to 1080p60 including Level A and B devices plus computer resolution scaling via HDMI in. You also get an HDMI input, reference in, audio delay for perfect AV sync, timecode conversion and both 3G-SDI and HDMI inputs and outputs allowing you to connect to virtually anything!

Easy Control

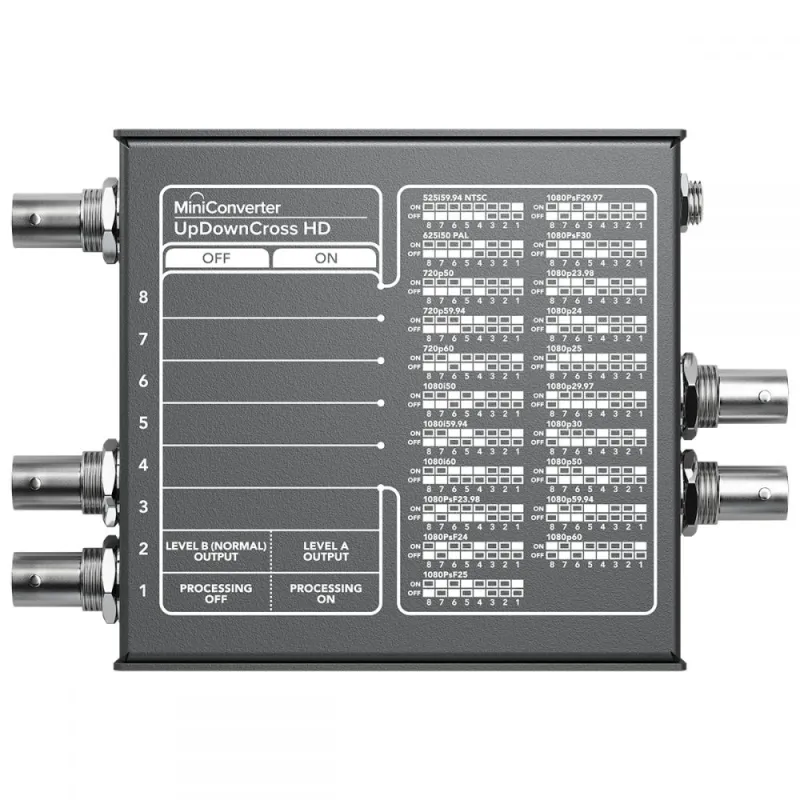

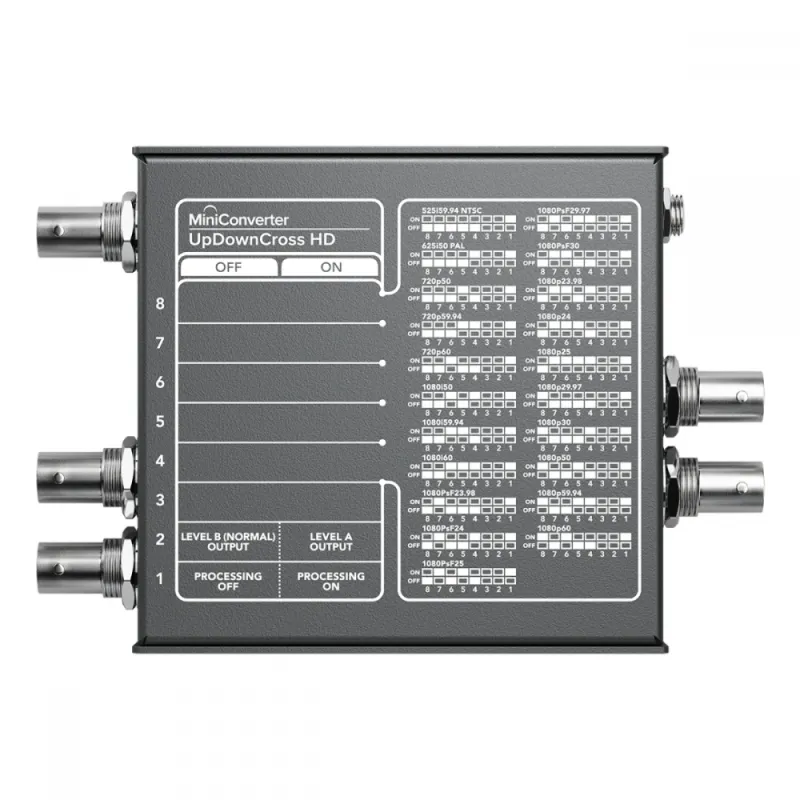

Changing settings on Mini Converter's is as easy as using the built in function switches! This is great when you need to change settings quickly as there are no complicated menus to navigate. There’s even a printed switch diagram on each converter, so you never have to find the manual! You can also control settings using the included Converter Utility software by connecting the converter to any OS X or Windows computer! All models can be updated to the latest software via USB by simply downloading upgrades directly from the Blackmagic Design website and connecting the Mini Converter to your Mac or Windows computer! This means Mini Converters can be updated to include new video standards and technologies when they become available.

Blackmagic Mini Converter UpDownCross HD is a new broadcast quality standards converter that lets customers convert any SD or HD video format to any other SD or HD video format via SDI and HDMI input and output connections. In addition, customers also get automatic scaling of computer resolutions to standard broadcast formats.

Blackmagic Mini Converter UpDownCross HD is an incredibly affordable high quality standards converter that broadcasters can use to convert video formats from its SDI and HDMI inputs. It’s perfect for converting between existing SD and HD broadcast equipment, as well as for connecting SDI equipment to consumer HDMI devices such as laptop computers and big screen televisions. Blackmagic Mini Converter UpDownCross HD uses low latency, high quality Teranex conversion algorithms for broadcast quality results. Customers can simply set the output format they need and the input format is automatically converted, which also ensures valuable equipment is protected by always sending the correct video output signal.

Connecting HDMI computers to professional SDI equipment is virtually foolproof with the Blackmagic Mini Converter UpDownCross HD. That’s because customers never have to change their computer’s display setting. The converter takes whatever the HDMI output is from the computer and then automatically scales and standards converts it to the correct broadcast standard set by the user.

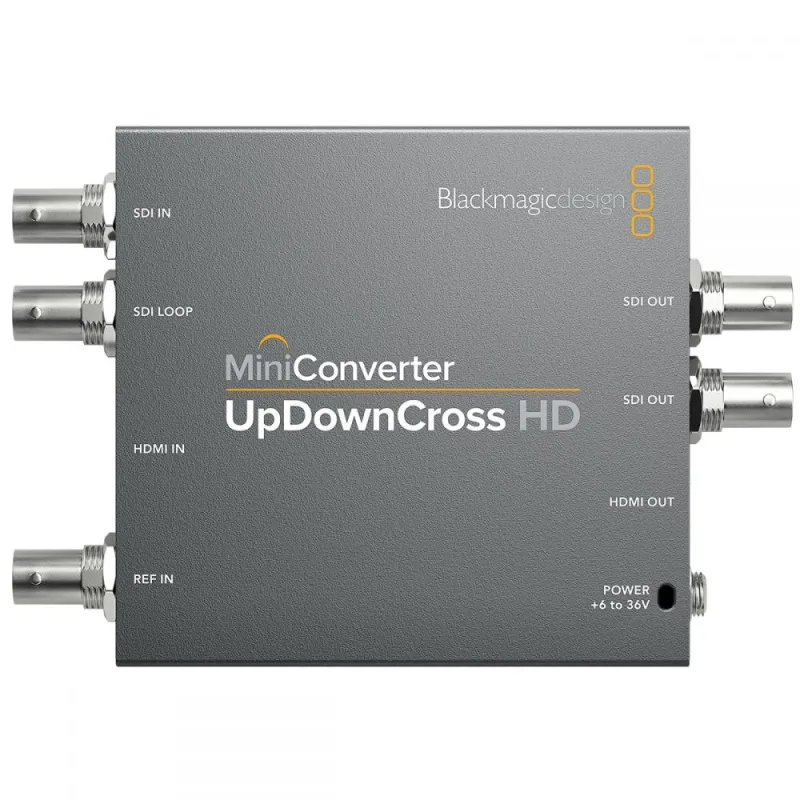

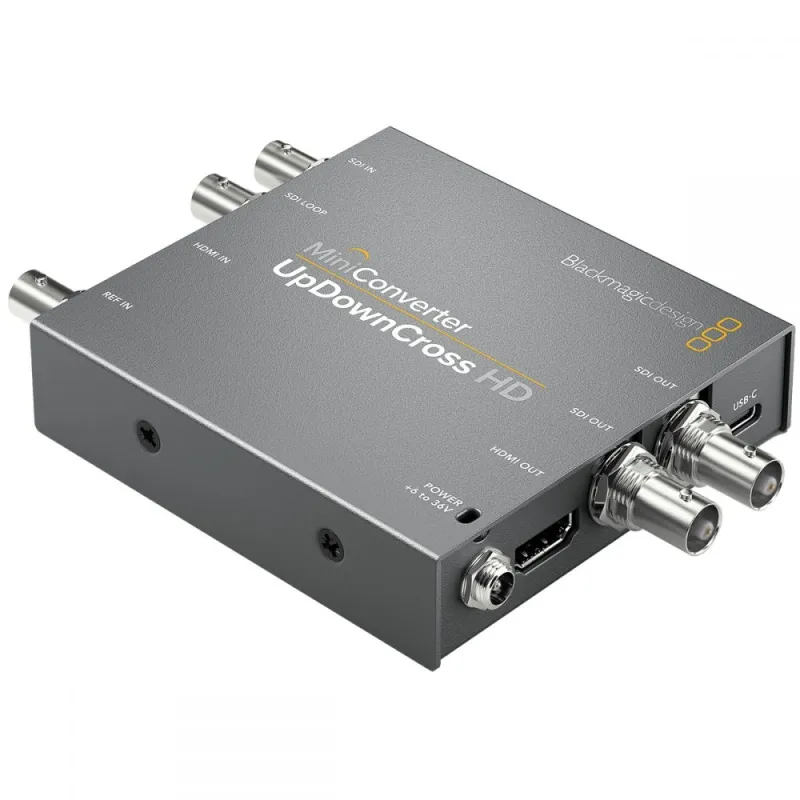

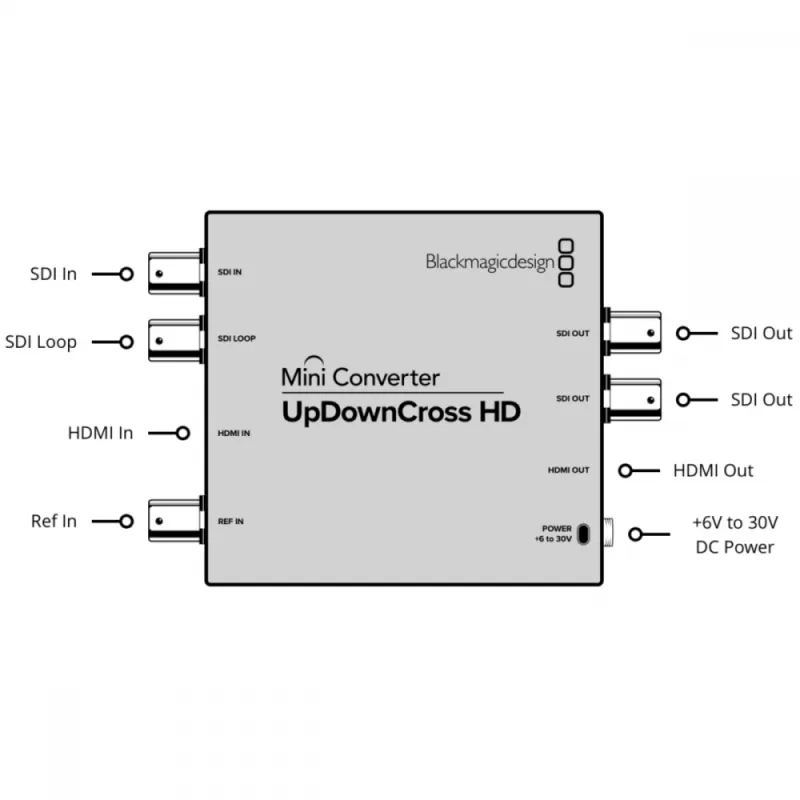

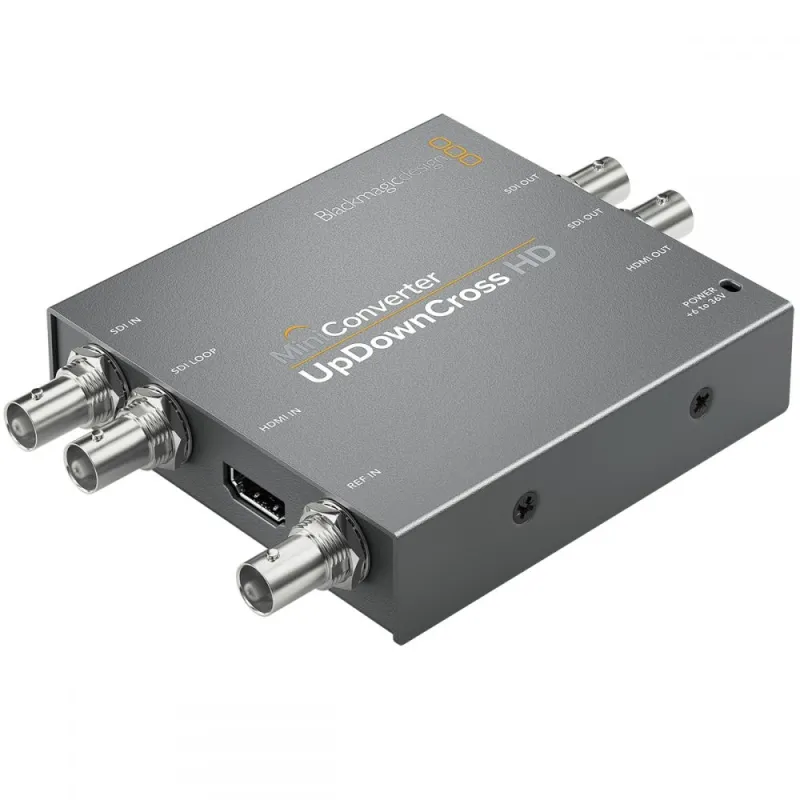

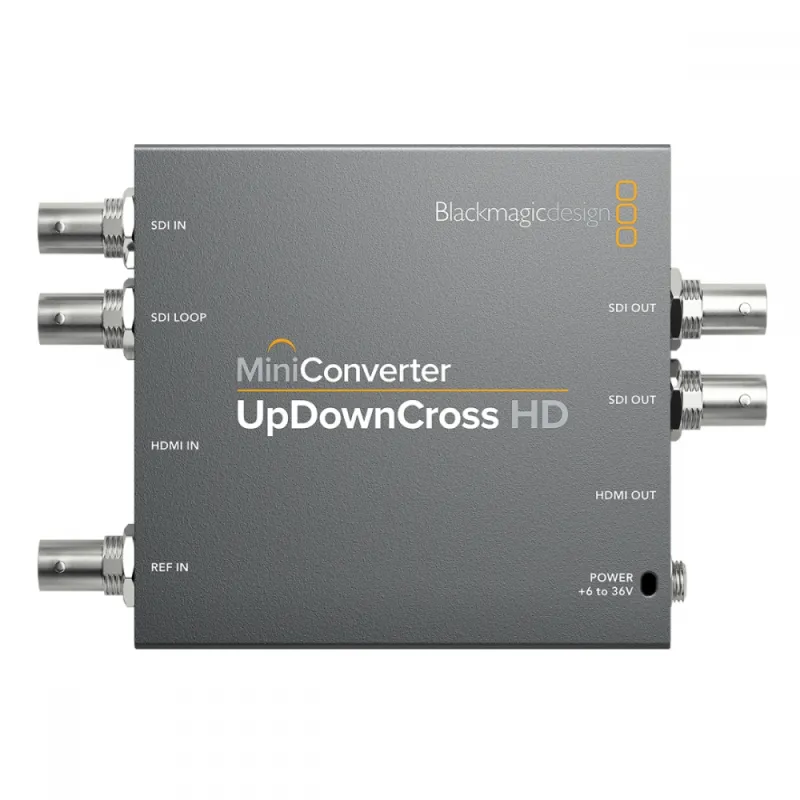

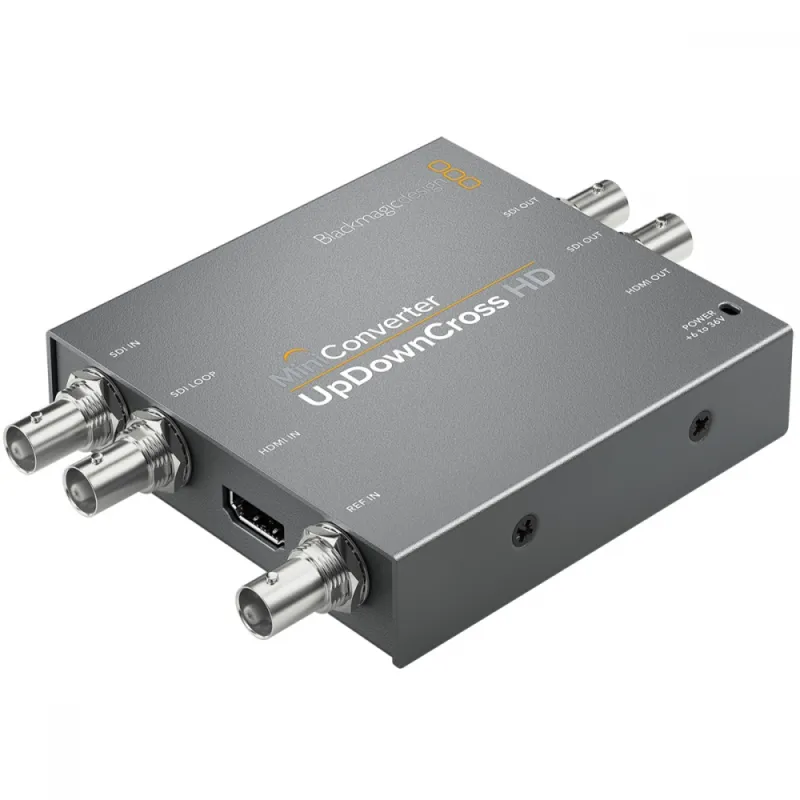

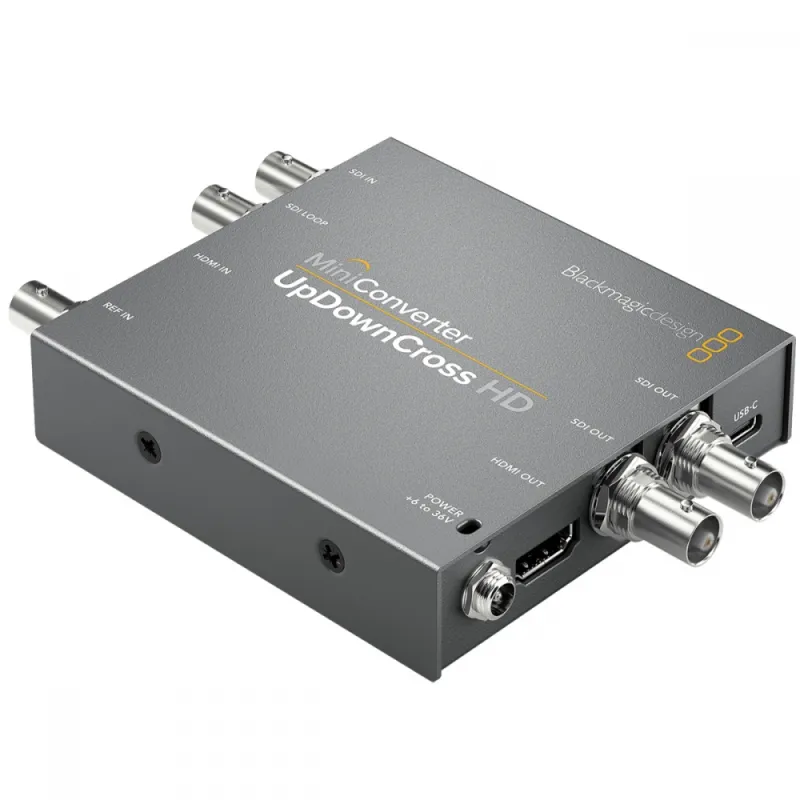

Mini Converter UpDownCross HD features multi rate 3G-SDI connections that work with all SD and HD equipment and video formats up to 1080p60, as well as Level A and B devices. The converter features one 3G-SDI input with a loop output that bypasses all processing, an HDMI input, reference in, two 3G-SDI outputs and an HDMI output. The 3G-SDI connections feature built in re-sync so all conversions match the reference input video timing signal. In addition, the converter has extremely low SDI jitter and high quality multi-tap video filters. This allows customers to use longer cables to maintain the integrity of the signal for broadcast quality video. Audio is also automatically delayed based on the conversion being performed and then embedded back into the signal so it’s always perfectly synchronized with the video.



The Blackmagic Mini Converter UpDownCross HD includes a universal power supply with international socket adapters for all countries. The power supply features a screw lock connector so customers never have to worry about the power cord being accidentally disconnected.

Blackmagic Mini Converters are part of a large family of professional broadcast converters that includes incredibly affordable Micro Converters as well as advanced models with a massively increased range of features. This range includes 3G, 6G and 12G-SDI models that are compatible with SD, HD and Ultra HD all the way up to high frame rate 2160p60. Blackmagic Mini Converters and Teranex Mini converters feature support for a wide range of connections such as balanced analog and AES/EBU audio, redundant inputs, analog video, optical fiber and more.
