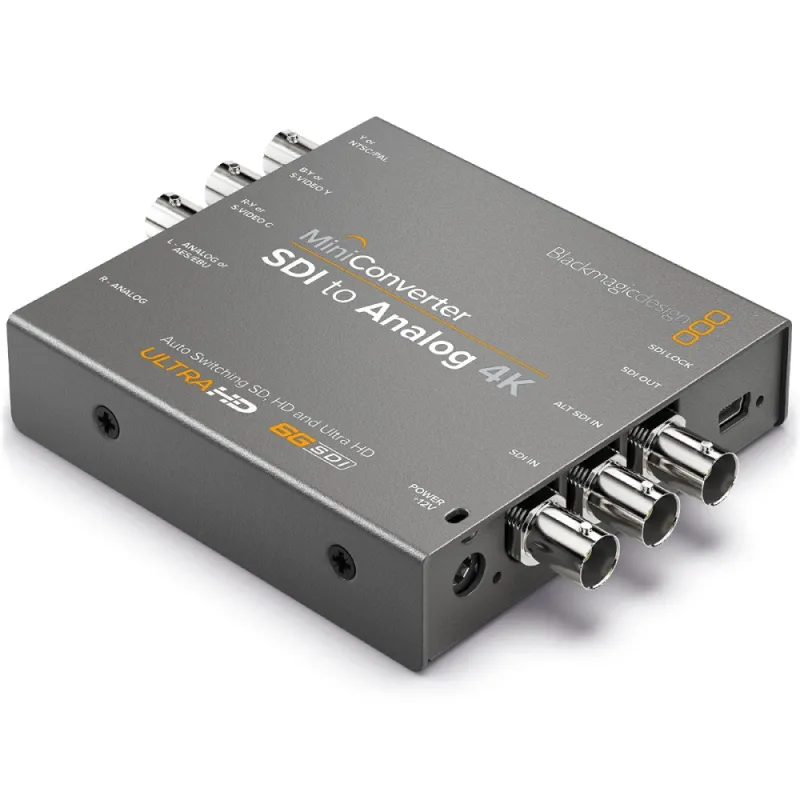

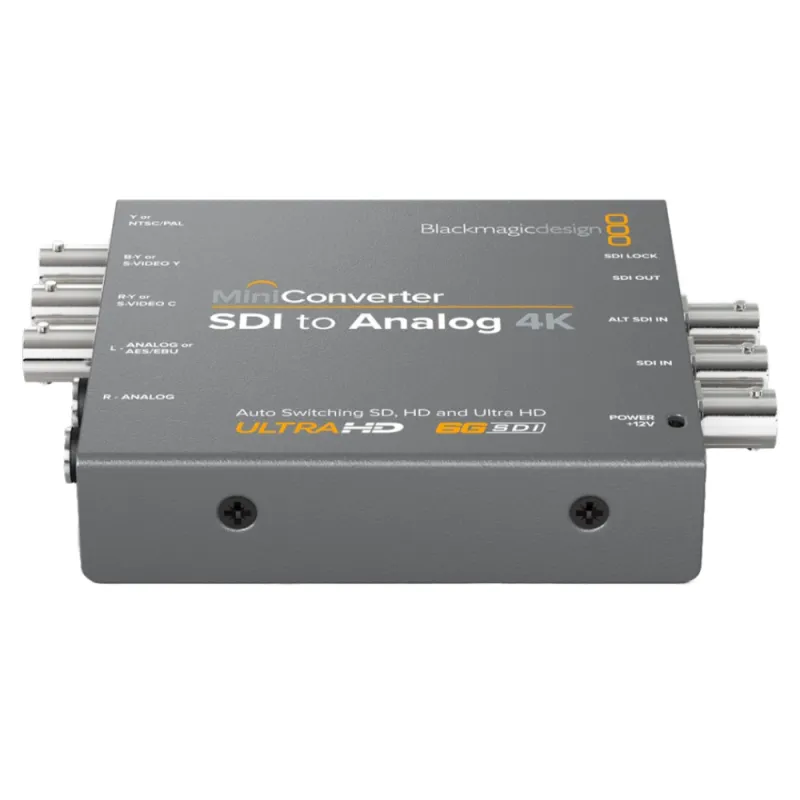

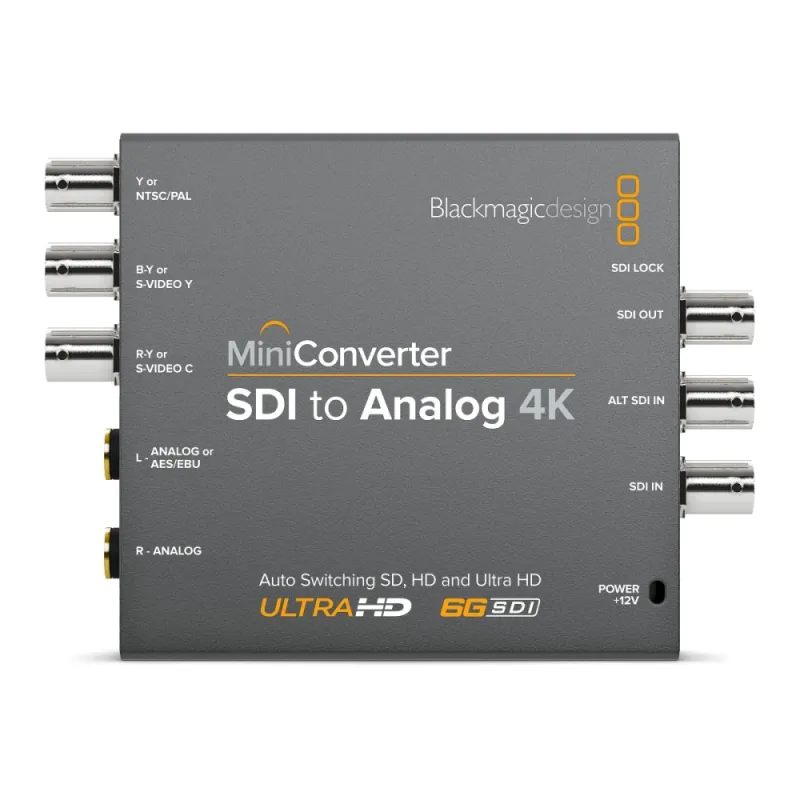

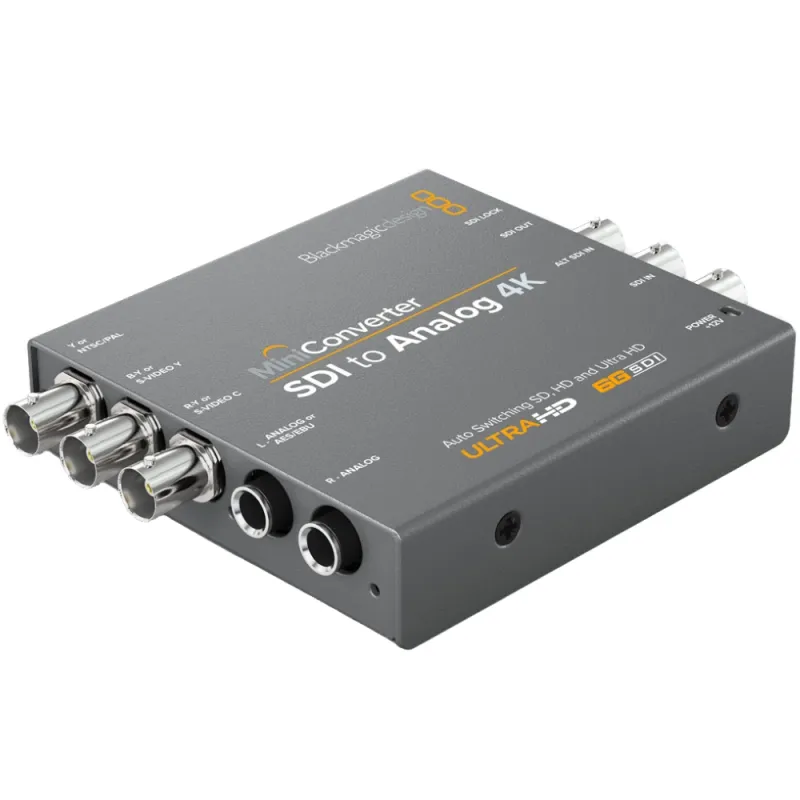

Blackmagic Mini Converter SDI to Analog 4K (BM-CONVMASA4K)
The Blackmagic Mini Converter SDI to Analog 4K provides comprehensive conversion from SD, HD, 3G, and 6G-SDI video signals to analog formats including HD/SD component, NTSC, and PAL video. It features a built-in down converter allowing Ultra HD sources to be connected and converted to component video in SD or HD, as well as NTSC and PAL video. This enables easy connection to analog equipment such as Betacam SP, VHS, and video monitors.
Advanced 6G-SDI Technology and Ultra HD Compatibility
This converter supports the latest 6G-SDI technology and automatically detects input video formats, switching seamlessly between SD, HD, and Ultra HD video standards. It supports Ultra HD resolutions up to 3840 x 2160, offering four times the resolution of standard 1080 HD video. The 6G-SDI design also enhances performance in SD and HD formats compared to HD-only converters.
Audio and Video Connectivity
- SDI Video Input: Switchable between SD, HD, and 6G-SDI.
- SDI Video Output: Automatically matches the input video format.
- Analog Video Output: Supports NTSC, PAL, S-Video, and HD component video from 6G-SDI input.
- Analog Audio: Two channels of professional balanced analog audio via standard 1/4 inch jack connections.
- AES/EBU Digital Audio: Two channels of professional balanced digital audio with standard 1/4 inch jack connections.
- SDI Redundant Input: Automatically switches to backup input if the main SDI input is lost.
Format Support and Standards
- SD Formats: 525/29.97 NTSC, 625/25 PAL.
- HD Formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30.
- 2K Formats: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25.
- 4K Formats: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24.
- SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601.
- Color Space and Precision: YUV 4:2:2 for both SDI and analog signals.
- Audio Sampling: 48 kHz, 24 bit television standard.
Format Conversion and Processing
Includes HD down conversion capabilities, allowing conversion from HD to SD formats. The converter features high-quality video processing with multiple internal power supplies to ensure low noise levels during analog and digital video format transitions. It supports up/down/cross conversion between PAL and NTSC SD video standards and various HD formats up to Ultra HD resolutions.
Control and Configuration
- Settings can be adjusted quickly using built-in mini switches with pin diagrams printed on the device for easy reference.
- Settings can also be controlled and updated via USB 2.0 using included Converter Utility software compatible with Mac OS X and Windows.
- Firmware updates are available through USB connection.
Power and Environmental Specifications
- Power Supply: +12V universal power supply included with international socket adapters.
- Power Consumption: 8.04 Watts.
- Operating Temperature: 0 to 40 °C.
- Storage Temperature: -20 to 45 °C.
- Relative Humidity: 0% to 90% non-condensing.
Included Items
- Mini Converter SDI to Analog 4K unit.
- Software CD.
- 12V universal power supply with international socket adapters.
Warranty
3 Year Limited Manufacturer's Warranty.
