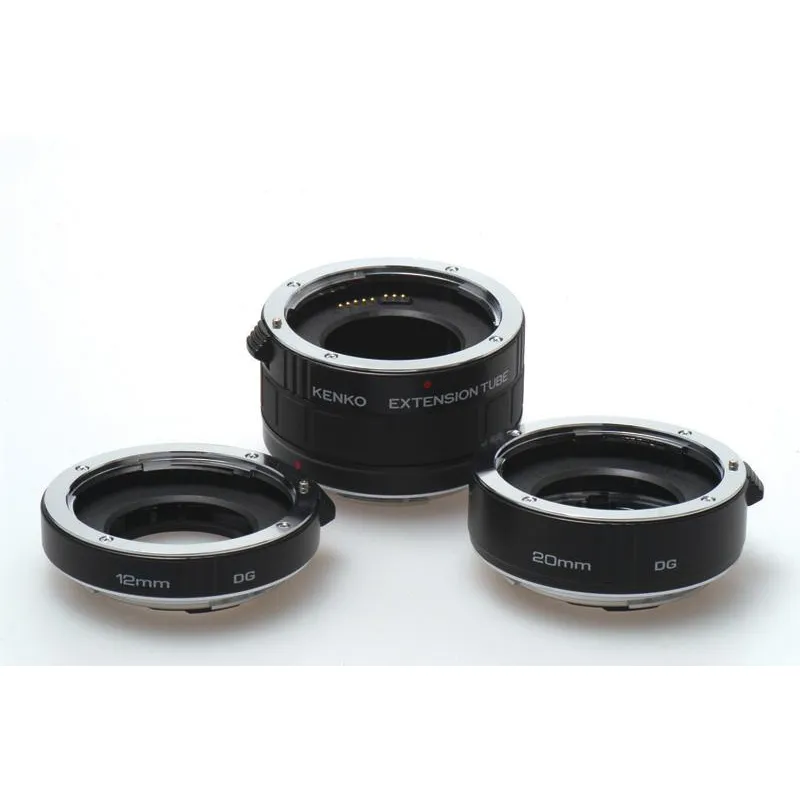

KENKO Extension Tube Set DIGITAL NIKON AF

KENKO Extension Tube Set DIGITAL NIKON AF

Macro Photography Extension Tubes for Nikon F-Mount

The KENKO Extension Tube Set DIGITAL NIKON AF is a 3-piece set designed to enable macro photography by reducing the minimum focusing distance and increasing magnification when mounted between a Nikon F-mount camera body and compatible lenses.

Tube Lengths and Configuration

• Includes three extension tubes with lengths of 12 mm, 20 mm, and 36 mm.
• Tubes can be used individually or combined in any order to achieve the desired extension and magnification.

Compatibility and Mount

• Designed specifically for Nikon F-mount DSLR cameras, supporting both APS-C and full-frame sensor formats.
• Compatible with a wide range of Nikon autofocus lenses including AF-S, AF-P, AF-D, and older AF lenses.
• Includes mechanical linkages and electronic pass-through to maintain autofocus and aperture control on compatible lenses.

Autofocus and Aperture Control

• Maintains autofocus functionality on compatible lenses and camera bodies, typically requiring a lens aperture of f/5.6 or brighter for effective AF performance.
• Supports TTL metering and fully automatic diaphragm coupling, allowing aperture control from the camera body.

Usage Notes

• Not universally compatible with all Nikon lenses; some lenses may only support manual focus mode when used with these tubes.
• Newer Nikon lenses with electronic aperture control may have limited compatibility.
• KENKO provides a tested compatibility list for reference to ensure optimal performance with specific camera and lens combinations.

Additional Features

• Each tube has its own mount, allowing flexible combinations and easy reconfiguration.
• Includes mechanical controls necessary for autofocus and aperture linkage on Nikon AF lenses.
