Caruba Extension Tube Set Canon Chrome Type II ETS CEFCII

Extension Tube Set for Canon Cameras

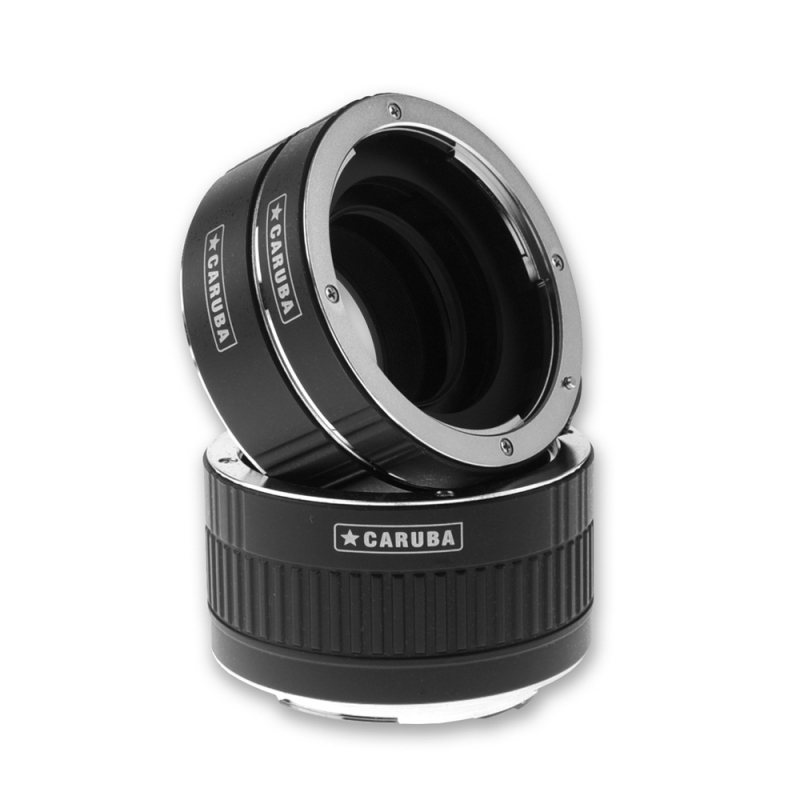

The Caruba Extension Tube Set Canon Chrome (Type II) consists of three extension tubes that can be used individually or combined to achieve closer focusing distances and greater magnification for macro photography. These tubes contain no optical elements, ensuring no degradation in image quality. They feature a chrome base and are compatible with Canon EF and EF-S lenses. Autofocus and TTL light metering functions remain operational, though manual focusing is recommended due to the tight focus tolerance.

Macro Photography Benefits

Every lens has a minimum focusing distance. By inserting an extension tube (also known as a spacer ring) between the camera body and the lens, this minimum focusing distance is reduced, allowing you to get closer to your subject. The longer the extension tube, the closer you can focus, making these tubes ideal for macro photography and detailed close-up shots.

How Extension Tubes Work

An extension tube increases the distance between the camera's image sensor and the rear element of the lens. This adjustment shortens the lens's focusing distance, enabling closer focus on subjects. Consequently, the subject is projected larger onto the sensor, increasing the magnification factor of the lens. The magnification with an extension tube can be calculated as:

Maximum magnification with spacer ring = lens magnification factor + (extension tube length in mm / lens focal length in mm)

Examples with an 85mm lens (magnification factor 0.13):

• With 12mm extension tube: 0.13 + (12 / 85) = 0.22
• With 20mm extension tube: 0.13 + (20 / 85) = 0.37
• With 36mm extension tube: 0.13 + (36 / 85) = 0.55
• With all three tubes combined (68mm): 0.13 + (68 / 85) = 0.93

Note: Using all three extension tubes stacked results in approximately 2 stops of light loss.

Key Features

• Set of three extension tubes: 12mm, 20mm, and 36mm
• Ideal for macro photography and close-up shots
• Reduces minimum focusing distance of compatible lenses
• Maintains autofocus and TTL light metering functions
• No optical elements, preserving image quality
• Compatible with Canon EF and EF-S mount lenses
• Durable chrome base construction
• 3-year warranty included

Package Contents

• One 12mm extension tube
• One 20mm extension tube
• One 36mm extension tube
• Lens and body caps
