Feelworld KBC20 - PTZ camera controller, 4D joystick, supports 255 cameras

The Feelworld KBC20 is a professional PTZ camera controller designed for multi-camera productions, offering precise 4D joystick control, support for multiple protocols, PoE power, and the ability to manage up to 255 PTZ cameras for live events, conferencing, broadcasting, and education.

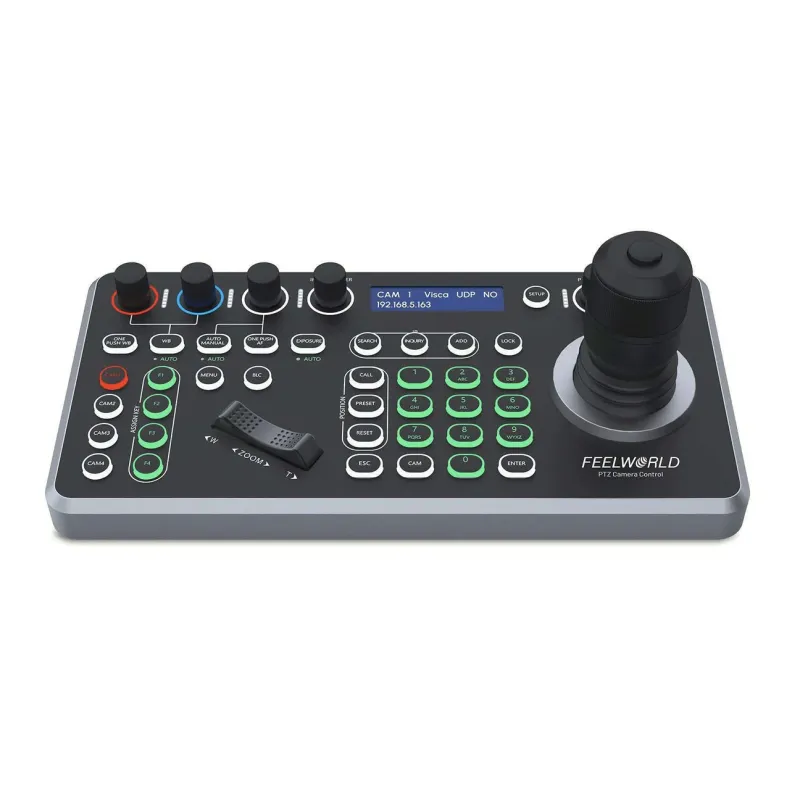

The Feelworld KBC20 PTZ Camera Controller is a powerful and flexible control solution built for demanding multi-camera environments such as live streaming studios, houses of worship, conferences, lecture halls, training rooms, and broadcast productions. Featuring an ergonomic control panel and a highly responsive 4D joystick, the KBC20 delivers smooth, accurate control over pan, tilt, zoom, focus, iris, and camera speed ensuring professional-grade camera movement every time.

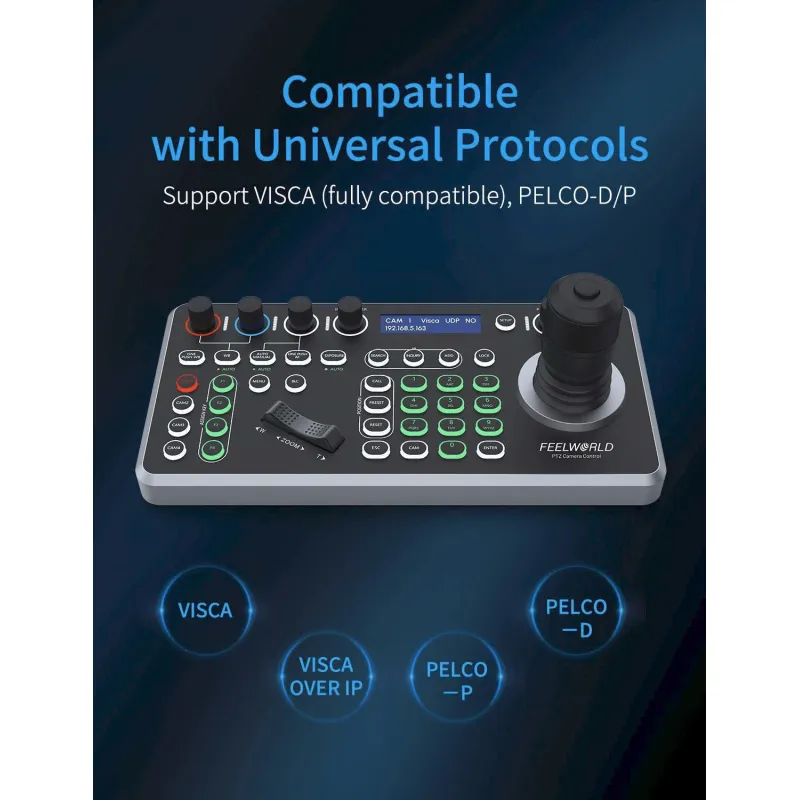

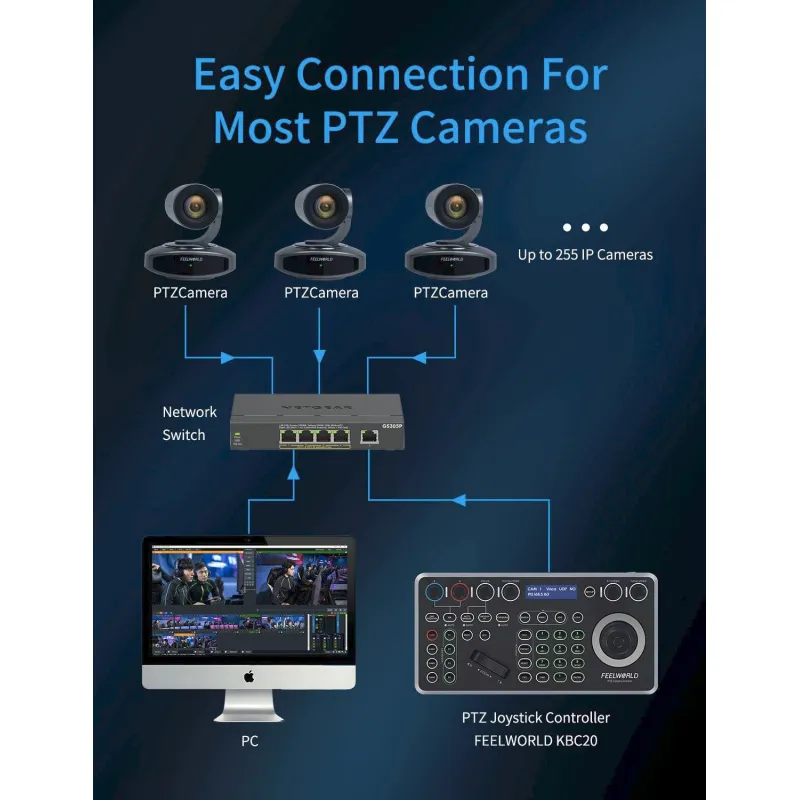

Supporting a wide range of control protocols including ONVIF, IP VISCA, Sony VISCA, Pelco-D, and Pelco-P, the KBC20 integrates seamlessly with most PTZ cameras on the market. It can control up to 255 PTZ cameras via IP or serial connections, with quick camera selection using numeric keys and four dedicated CAM1-CAM4 shortcut buttons for instant switching between frequently used cameras.

An integrated LCD screen provides real-time system status and camera feedback, improving workflow efficiency during live productions. The controller also supports 255 preset positions, allowing operators to store and recall camera angles instantly. Advanced features such as adjustable PTZ speed, white balance, red/blue gain, focus, iris, backlight compensation, and customizable function keys (F1-F4) make the KBC20 adaptable to any shooting environment.

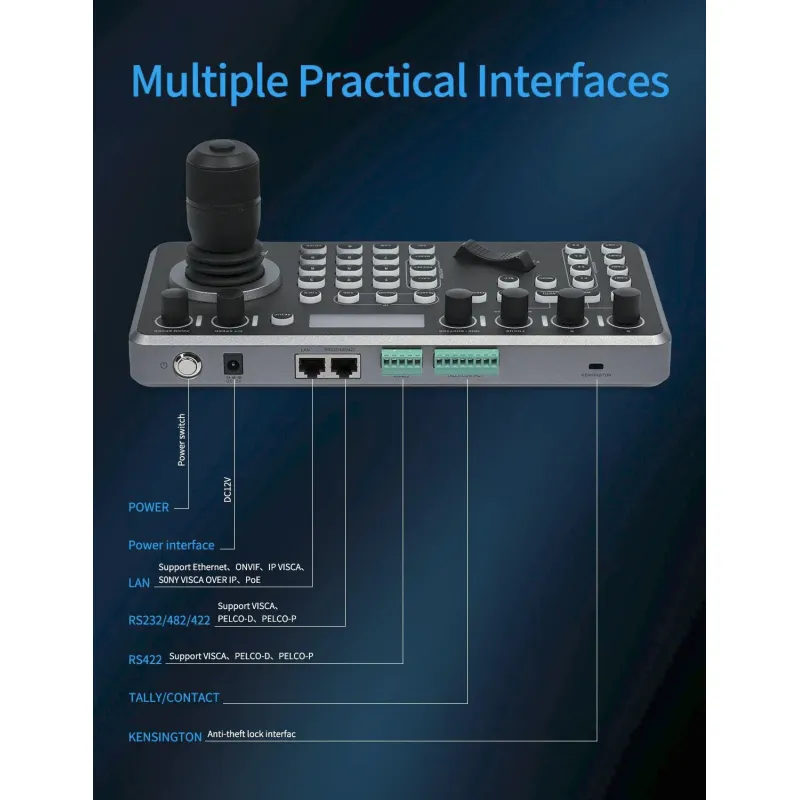

For installation flexibility, the KBC20 offers both network (IP) and analog control modes, with professional interfaces including RJ45 Ethernet, RS232/RS422/RS485, TALLY/contact terminals, and a Kensington security slot. Power can be supplied via PoE, reducing cable clutter and enabling single-cable deployment up to 100 meters when used with an IEEE 802.3af/at compliant switch. Additionally, web-based configuration allows easy camera discovery, network setup, firmware upgrades, and user management.

Key Features

• Controls up to 255 PTZ cameras

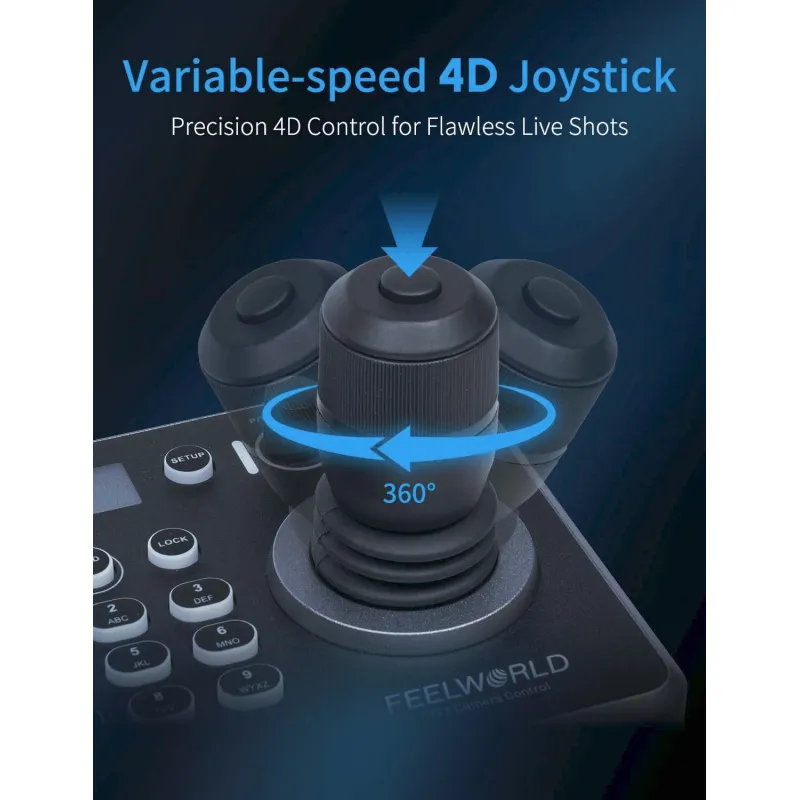

• High-precision 4D joystick for smooth pan, tilt, zoom, focus, and rotation
• Supports ONVIF, IP VISCA, VISCA, Pelco-D, Pelco-P
• Network and analog control modes
• PoE power support via Ethernet (IEEE 802.3af/at)
• Integrated LCD display for real-time status monitoring
• 4 quick camera selection buttons (CAM1-CAM4)
• Stores and recalls 255 preset positions
• Customizable function keys (F1-F4)
• Web-based configuration and firmware upgrades
• Professional interfaces including RS232/422/485, TALLY, and Ethernet

• 1x Feelworld KBC20 PTZ Controller
• 1x Power Adapter
• 1x RJ45 to DIN8 Cable
• 1x Quick Start Guide

• Control Protocols ONVIF, IP VISCA, VISCA, Pelco-D, Pelco-P
• Baud Rates 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 115200 bps
• Joystick Four-dimensional (pan, tilt, zoom, rotation)
• Display LCD screen
• LAN Interface 1 RJ45
• RS232/RS485/RS422 Interface 1 RJ45 to 9-pin DIN
• RS422 Interface 1 5-pin terminal
• TALLY / Contact 1 8-pin terminal
• Power Input DC 12V
• Power Consumption Max 0.6 W
• PoE Supported (IEEE 802.3af / 802.3at)
• Operating Temperature 0C to 50C
• Operating Humidity 0 to 90
• Dimensions 270 x 135 x 110 mm
• Weight 1.3 kg
