Feelworld KBC20N - PTZ camera controller with LCD, 4D joystick, PoE support
- Type of Product ptz camera accessories
- Features live streaming capability
- Features plug-n-play technology
- Features tally light
- Features poe
- Features firmware upgrade via web
- PoE Technology poe
- IP Video ndi
- IP Video rtmp
- IP Video rtsp
- IP Video onvif
- Control Protocol visca
- Control Protocol pelco-d
- Control Protocol pelco-p
- Control Protocol ndi
- Control Protocol rs-232
- Control Protocol rs-422
- Control Protocol rs-485
- Control Protocol ip
- Control Interface rj-45
- Control Interface mini-din 8-pin
- Control Interface rs-232
- Type of Product ptz camera accessories
- Features live streaming capability
- Features plug-n-play technology
- Features tally light
- Features poe
- Features firmware upgrade via web
- PoE Technology poe
- IP Video ndi
- IP Video rtmp
- IP Video rtsp
- IP Video onvif
- Control Protocol visca
- Control Protocol pelco-d
- Control Protocol pelco-p
- Control Protocol ndi
- Control Protocol rs-232
- Control Protocol rs-422
- Control Protocol rs-485
- Control Protocol ip
- Control Interface rj-45
- Control Interface mini-din 8-pin
- Control Interface rs-232
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ camera accessories |
| Features | PoE |
| Features | Live Streaming Capability |
| Features | Tally Light |
| Features | Firmware upgrade via web |
| Features | Plug-n-Play Technology |
| PoE Technology | PoE |
| IP Video | RTMP |
| IP Video | ONVIF |
| IP Video | NDI |
| IP Video | RTSP |
| Control Protocol | Pelco-P |
| Control Protocol | RS-232 |
| Control Protocol | RS-485 |
| Control Protocol | Pelco-D |
| Control Protocol | NDI |
| Control Protocol | RS-422 |
| Control Protocol | IP |
| Control Protocol | VISCA |
| Control Interface | Mini-DIN 8-Pin |
| Control Interface | RJ-45 |
| Control Interface | RS-232 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

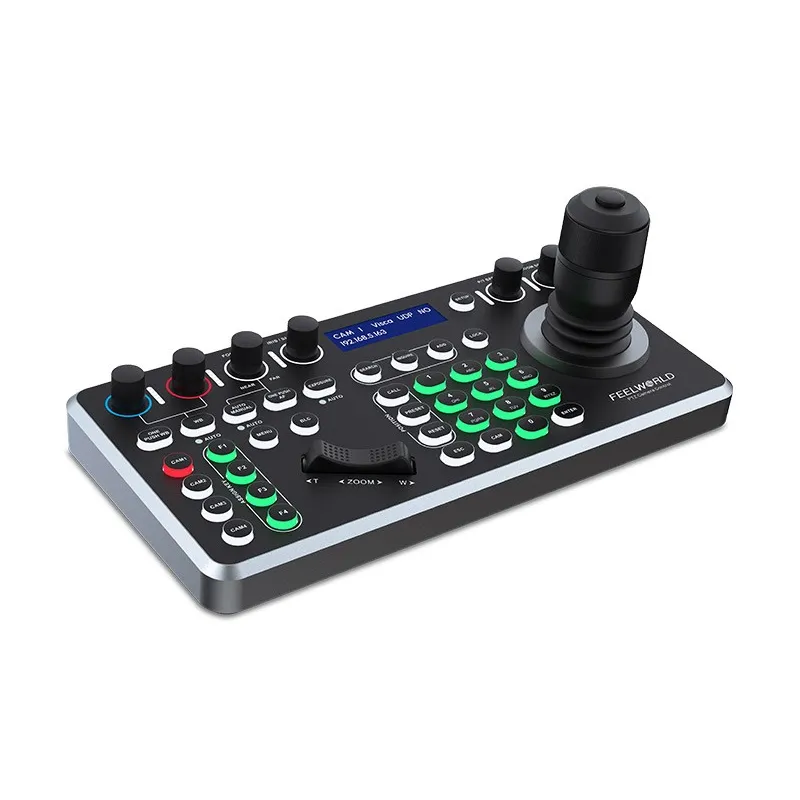

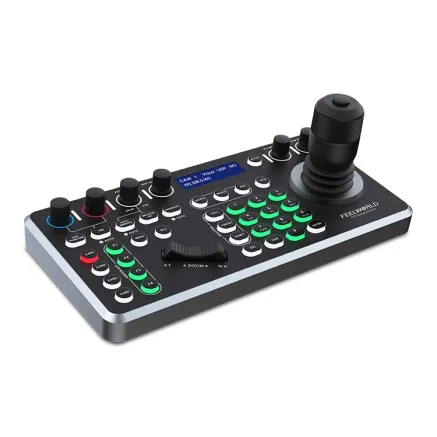

The Feelworld KBC20N is a professional PTZ camera controller designed for precise, flexible, and scalable control of up to 255 cameras. Featuring multiple control protocols, a real-time LCD display, a 4D joystick, and PoE support, it streamlines live video production workflows with intuitive operation and reliable connectivity.
The Feelworld KBC20N is a versatile PTZ camera controller engineered for live video productions, broadcast studios, and AV installations. It supports multiple network control protocols including NDI, ONVIF, IP VISCA, VISCA, Pelco-D, and Pelco-P, making it compatible with virtually any PTZ camera on the market. The integrated LCD screen provides real-time status updates for connected cameras, ensuring operators can monitor and control multiple cameras efficiently.
Equipped with a 4D joystick, the KBC20N allows precise pan, tilt, zoom, and rotation control, while customizable buttons provide flexible configuration for frequently used commands. The controller supports up to 255 cameras, offering scalability for large-scale productions. Connectivity options include LAN, RS232/RS485/RS422, and TALLY/CONTACT ports, and the device supports PoE (Power over Ethernet), simplifying installation and power management. The intuitive button layout and web-upgradeable firmware further enhance operational efficiency.
Compact yet durable, the KBC20N operates in temperatures from 0C to 50C and humidity up to 90, making it suitable for studio and field environments.
Key Features
- Supports multiple PTZ control protocols NDI, ONVIF, IP VISCA, VISCA, Pelco-D, Pelco-P

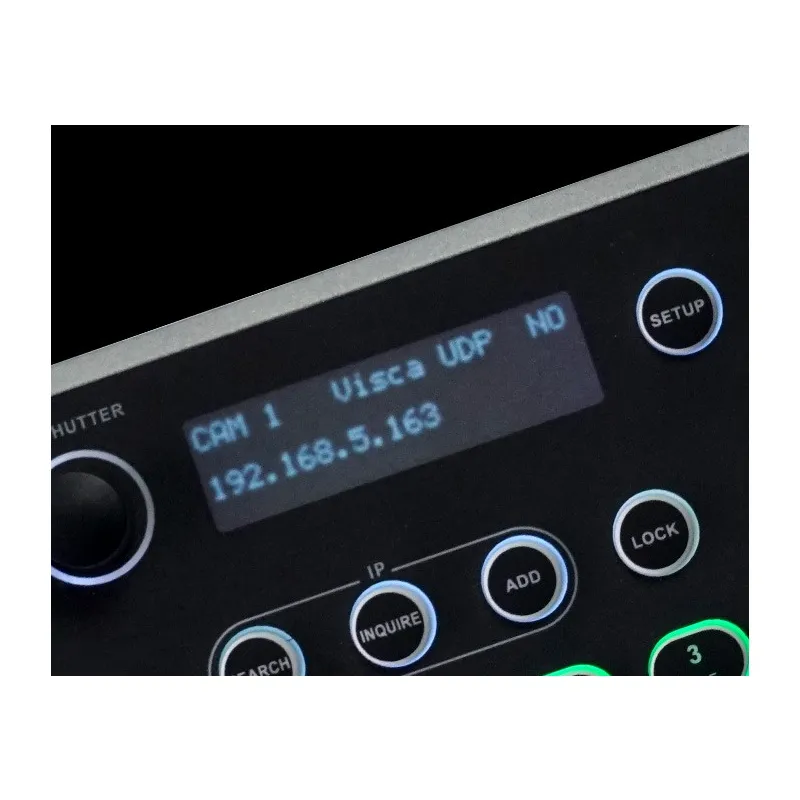

- Real-time LCD display for monitoring camera status

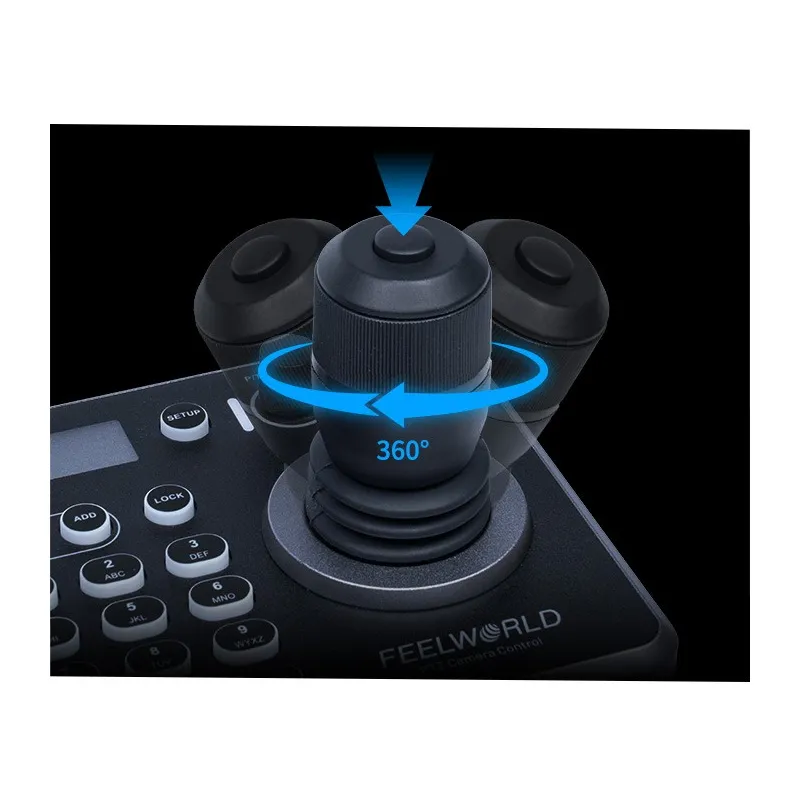

- Precise 4D joystick for pan, tilt, zoom, and rotation control
- Customizable buttons for flexible operation
- Connects up to 255 PTZ cameras
- Supports PoE (Power over Ethernet)

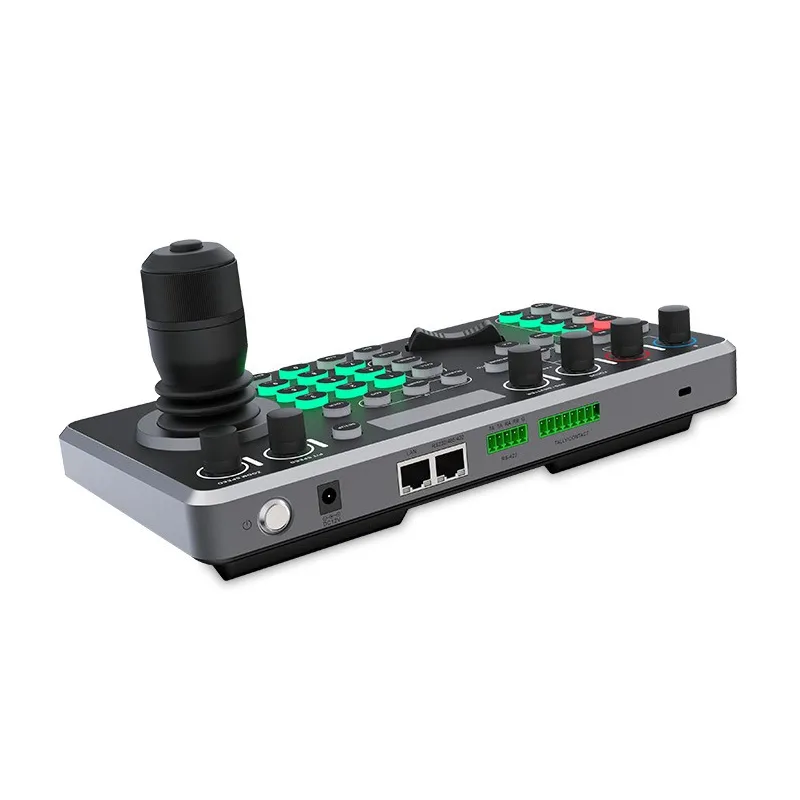

- Multiple control connectors LAN, RS232/RS485/RS422, TALLY/CONTACT
- Web-upgradeable firmware
- 1 Feelworld KBC20N Controller
- 1 Power Adapter
- 1 RS45-DIN8 Cable
- 1 Quick Start Guide
- LAN 1 RJ45
- RS232/RS485/RS422 1 RJ45 to 9-pin round male, 1 5-pin terminal
- TALLY/CONTACT 1 8-pin terminal
- Kensington Lock N/A
- Control Protocols NDI, ONVIF, IP VISCA, VISCA, Pelco-D, Pelco-P
- Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 115200
- Display LCD screen
- Key Tone ON/OFF
- Joystick 4D (up, down, left, right, zoom, rotation)
- Firmware Upgrade Web-based
- Power Input DC 12V
- Power Consumption Max 0.6 W
- Operating Temperature 0C to 50C
- Humidity 0 to 90
- Unit Size 270 135 110 mm
- Unit Weight 1.3 kg
- Outer Carton Qty 6 pcs
- Outer Carton Size 561 336 300 mm
- Gross Weight 11.5 kg
