Aputure Light Octadome 120 Softbox

Aputure Light Octadome 120

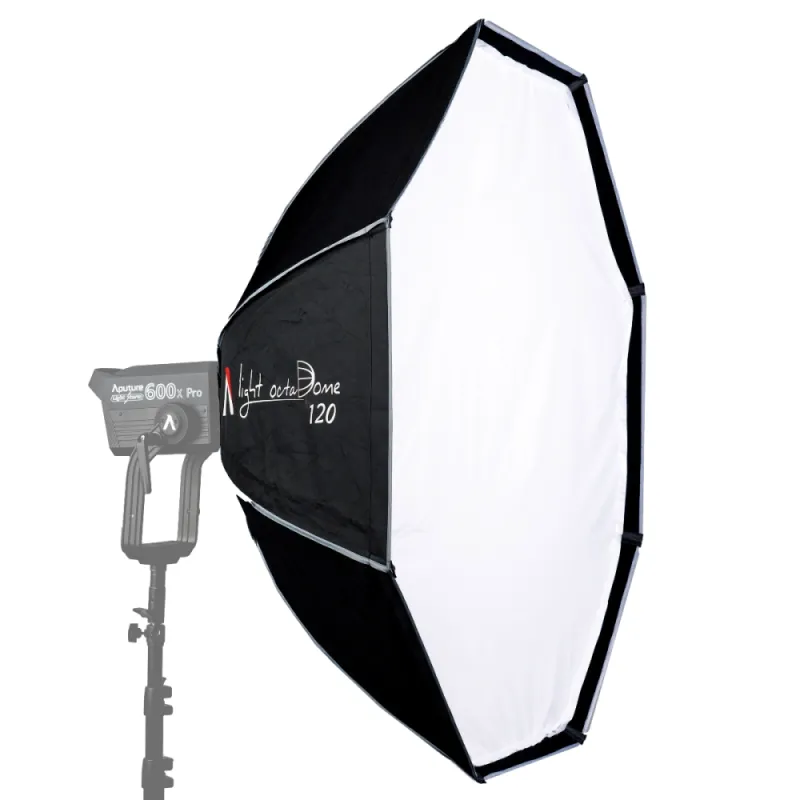

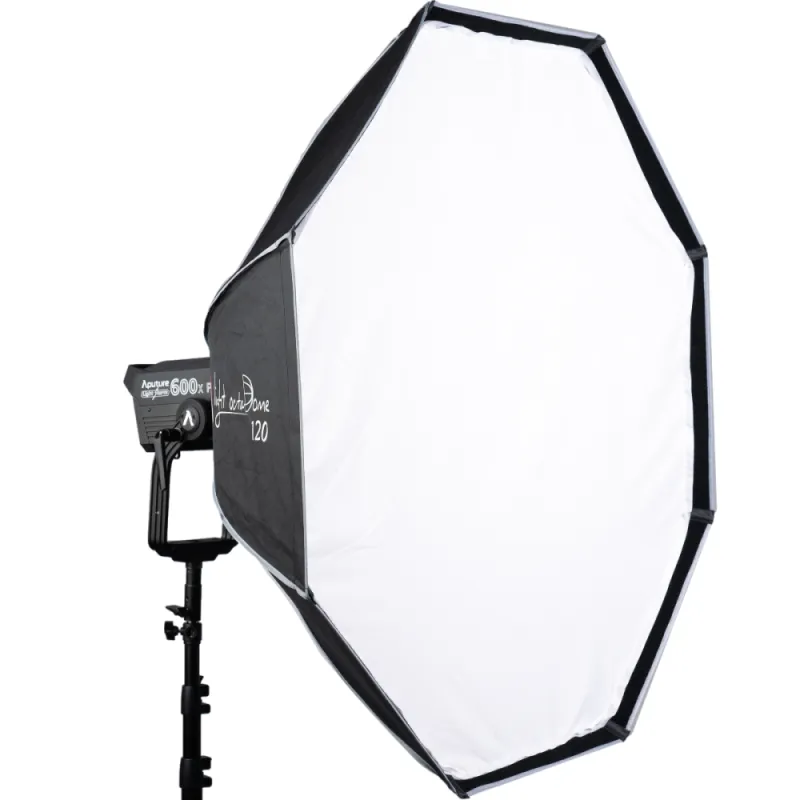

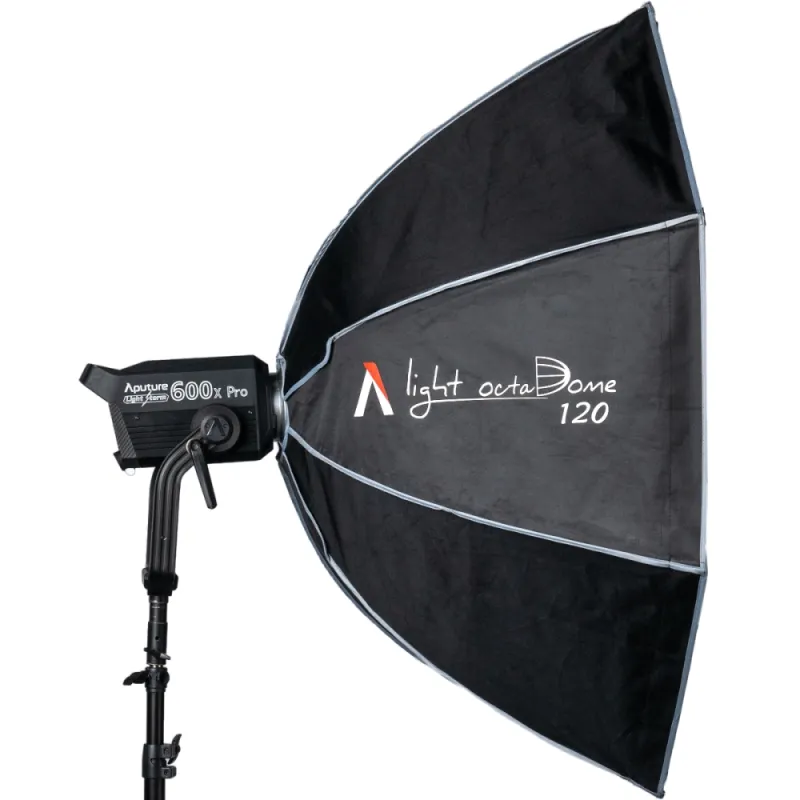

The Aputure Light Octadome 120 is an octagonal folding softbox with a diameter of 120 cm, designed to effectively diffuse and soften the spotlight of your lamp. It features compatibility with the Bowens mounting standard, allowing connection to Aputure Light Storm lights as well as other continuous and flash light sources supporting this popular system.

Included Accessories

• Up to 3 diffusion fabrics (one inner and two outer)
• A grid (honeycomb)
• A sturdy carry bag for convenient packing of all accessories

Main Product Features

• Diameter: 120 cm
• Fast and convenient assembly
• Lightweight construction for quick dismantling
• Alternative to diffusion panels and rectangular softboxes
• Constructed from strong, high-quality materials
• Supports the popular Bowens mounting system
• 3 different diffusers for fine-tuning light diffusion
• 45° grating for precise light beam orientation
• Transport bag made of thick material included
• Silver interior for excellent reflection and minimal light loss

Convenient Light Control

The 120 cm diameter provides soft, diffused light that envelops the shooting set. The silver interior enhances reflection, minimizing light loss.

Universal Bowens Mount

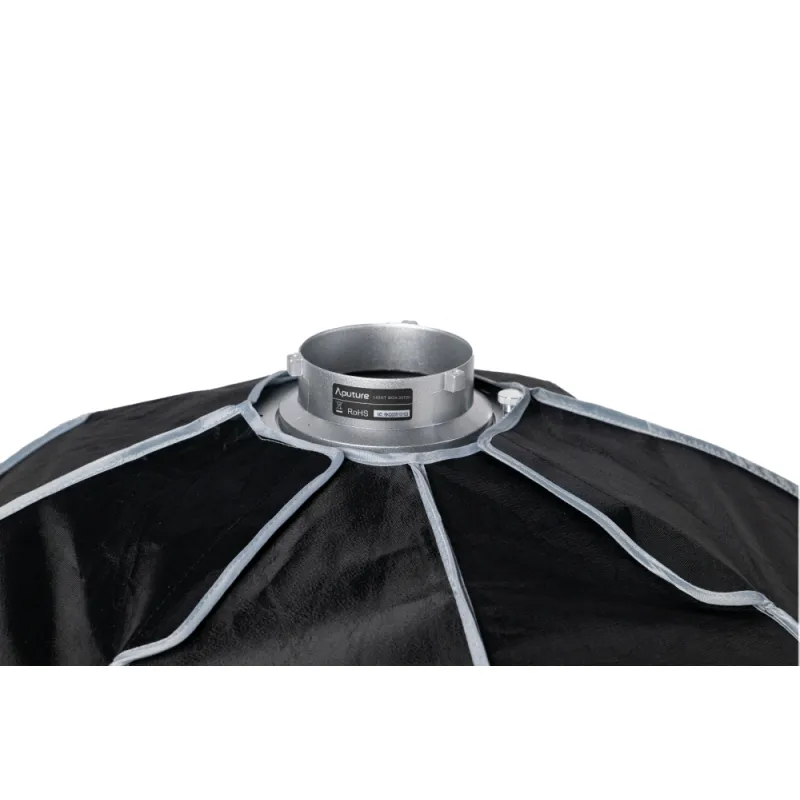

The Bowens mount ensures wide compatibility with various lamps used in film and photography, including Aputure Light Storm series and other industry-standard equipment.

Natural Light Output

The octagonal design produces a rounder, more natural light output compared to diffusion panels or rectangular softboxes. The grid and diffusers attach directly to the dome, eliminating the need for additional tripods or brackets.

Matched Light Diffusion

Includes three diffusion fabrics: an inner diffuser (-1.5 EV) and two outer diffusers (-1.5 EV and -2.5 EV). These can be combined to soften light and blur shadows as needed.

Precise Light Beam Control

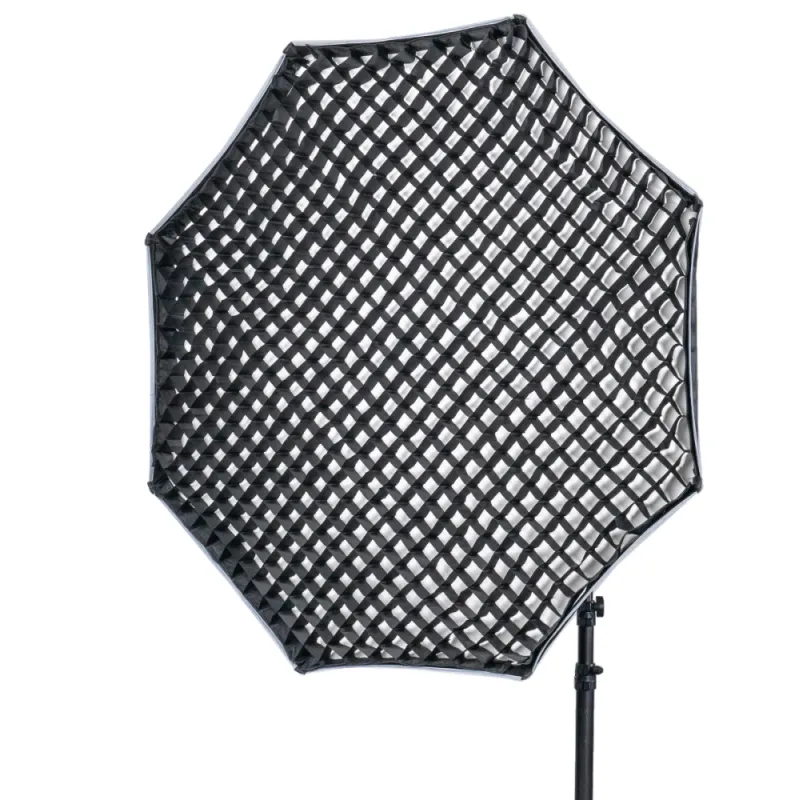

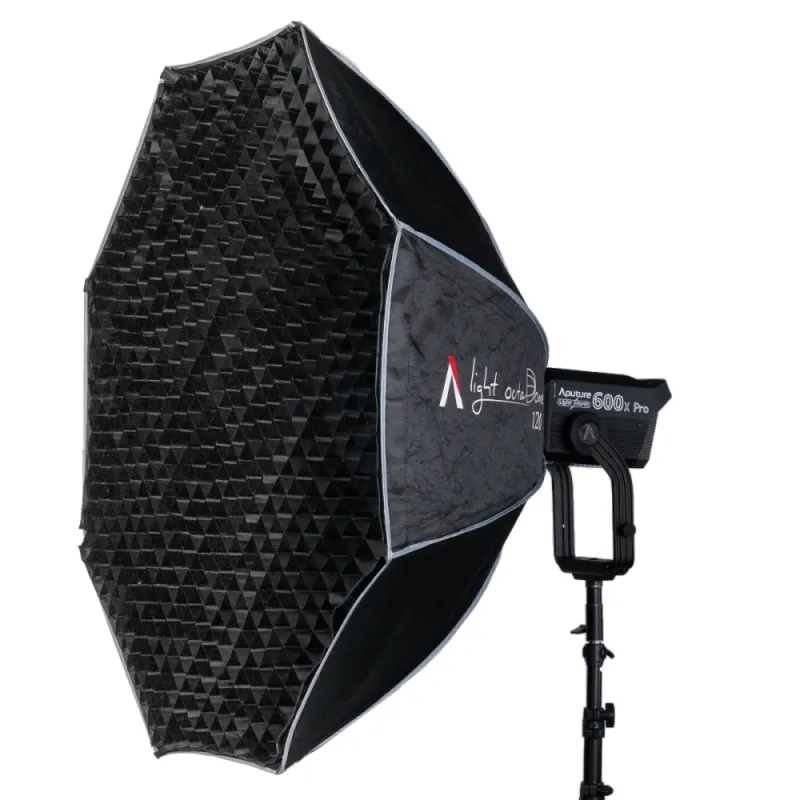

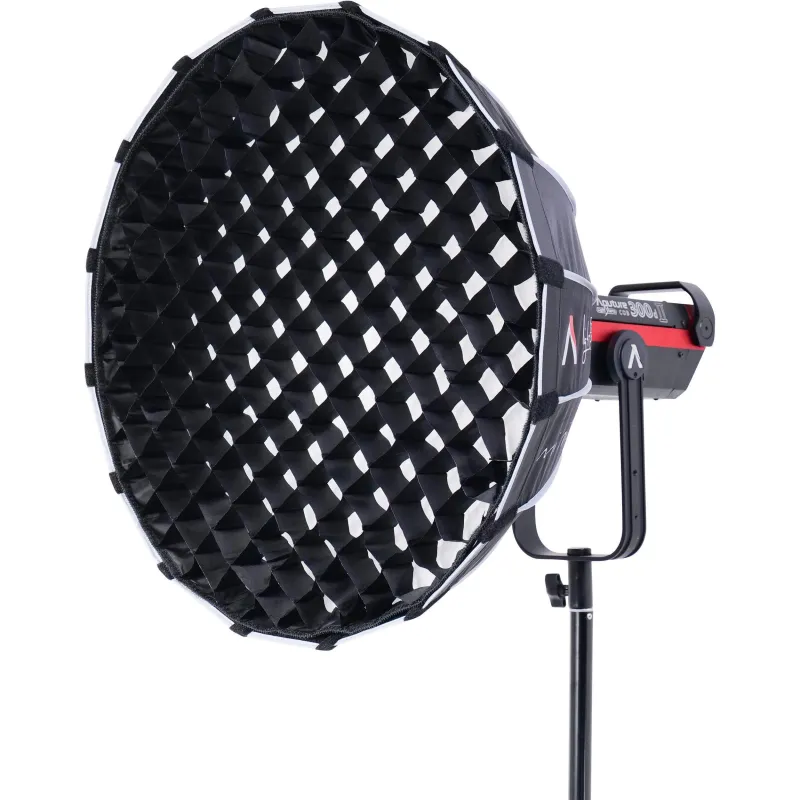

The included honeycomb grid allows precise illumination of subjects or spaces without light spill, enhancing contrast and directionality.

Fast Unfolding System

The softbox features a convenient mounting system with sturdy steel rods and strong fabrics. It folds compactly into a transport bag weighing 1.7 kg with all accessories.

Compatibility

• Aputure Light Storm series lamps with Bowens mount
• Other lights with Bowens mount

Specifications

• Model: Aputure Light Octadome 120
• Type: 8-sided softbox
• Mount: Bowens
• Dimensions (folded): 76 x 15 x 3 cm
• Dimensions (unfolded): 150 x 53 cm
• Weight: 1.7 kg
• Diffusers:
  • External diffuser -1.5 EV
  • External diffuser -2.5 EV
  • Internal diffuser -1.5 EV
• Grid: 45° angle of illumination, 120 x 5.3 cm

Set Contents

• Aputure Light Octadome 120 softbox
• Bowens mounting adapter
• External diffuser -1.5 EV
• External diffuser -2.5 EV
• Internal diffuser -1.5 EV
• Grid (honeycomb)
• Transport bag

Photometrics

Photometric values for various lamp models at different distances:

• LS 1200d Pro
  • 1 m: -1.5 EV: 20280 lx, -2.5 EV: 17670 lx
  • 3 m: -1.5 EV: 3280 lx, -2.5 EV: 2666 lx
  • 5 m: -1.5 EV: 1267 lx, -2.5 EV: 1012 lx
• LS 600d Pro
  • 1 m: -1.5 EV: 8830 lx, -2.5 EV: 8030 lx
  • 3 m: -1.5 EV: 1522 lx, -2.5 EV: 1231 lx
  • 5 m: -1.5 EV: 587 lx, -2.5 EV: 486 lx
• LS 300x
  • 1 m: -1.5 EV: 2660 lx, -2.5 EV: 2335 lx
  • 3 m: -1.5 EV: 416 lx, -2.5 EV: 347 lx
  • 5 m: -1.5 EV: 167 lx, -2.5 EV: 136 lx
• LS 300d II
  • 1 m: -1.5 EV: 4710 lx, -2.5 EV: 4120 lx
  • 3 m: -1.5 EV: 797 lx, -2.5 EV: 639 lx
  • 5 m: -1.5 EV: 298 lx, -2.5 EV: 246 lx
