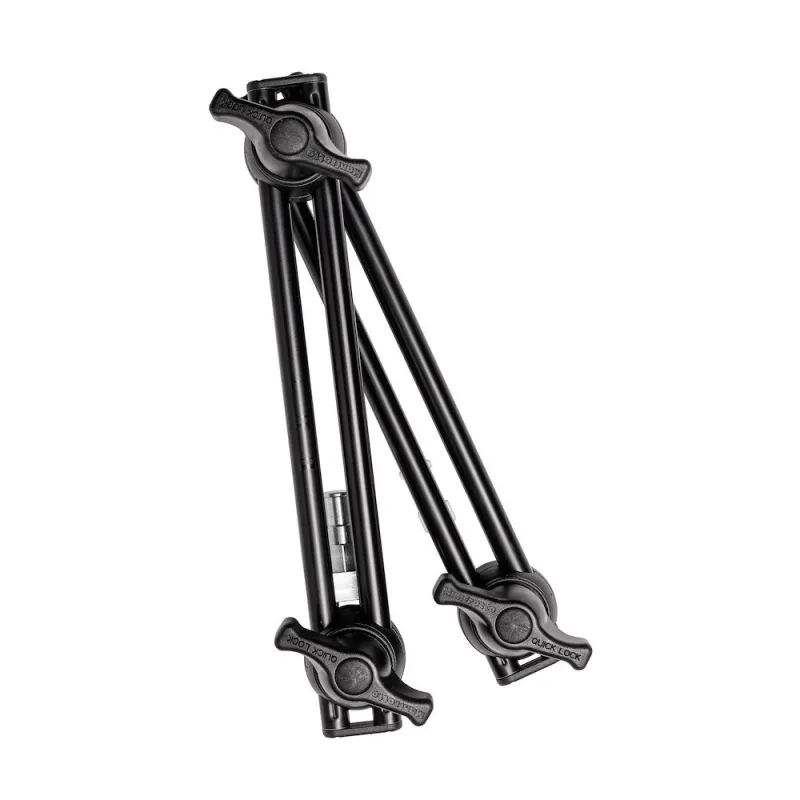

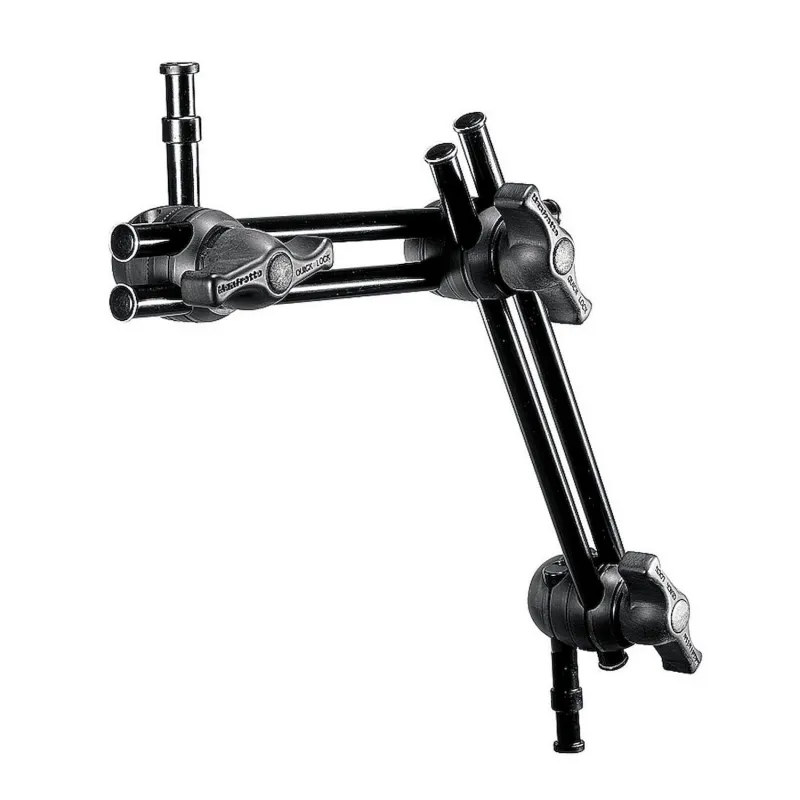

Manfrotto 396AB-2 Double Arm 2-Section

Overview

The Manfrotto 396AB-2 is a 2-section double articulated arm designed for professional use, offering robust support for loads up to 5 kg while remaining lightweight at just 0.5 kg. Its extendable sliding system and quick-lock mechanism provide flexible positioning, making it ideal for a wide range of photographic and lighting setups.

The Manfrotto 396AB-2 2-Section Double Articulated Arm delivers exceptional performance through a combination of robustness, lightness, and versatility. Designed to support heavier loads of up to 5 kg, it is stronger than the 196 series while maintaining high flexibility thanks to its extendable sliding arm system, which extends up to 62.5 cm. The quick-lock mechanism ensures secure and easy adjustments. The bottom attachment features a dual-purpose spigot combining a hexagonal anti-rotation section with a universal adapter, enabling compatibility with a wide range of stands, clamps, and accessories. The top attachment includes a 16mm spigot with a 3/8 female thread for versatile equipment mounting. Perfect for photographers and videographers who need a reliable, adaptable arm for lights, cameras, or other accessories.

Key Features

• Double articulated arm with two sections
• Supports loads up to 5 kg (11 lb)
• Lightweight 0.5 kg (1 lb)
• Max arm length 62.5 cm (24.6 in)
• Sliding extension for flexible positioning
• Quick-lock system for secure adjustments
• Top attachment 3/8 female thread, 5/8 (16mm) stud
• Bottom attachment Double-anchored 16mm hexagonal/universal spigot
• Color Black

Included in the Box

• Manfrotto Double Articulated Arm - 2 Sections Without Camera Bracket

Specifications

• Weight: 0.5 kg
• Payload: 5 kg
• Arm Length: 62.5 cm
• Top Attachment: 3/8 thread female, 5/8 (16mm) stud
• Bottom Attachment: 5/8 (16mm) stud
• Color: Black
