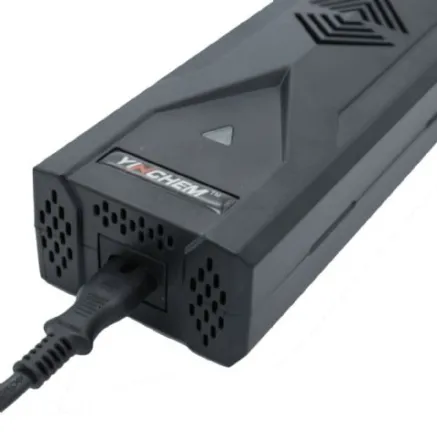

Rolux Fast Charger YC-ZNC for V-Mount Battery

The Rolux Fast Charger YC-ZNC for V-Mount Battery is a professional charger with a special self-adapt function. It recognizes the capacity of the battery and can charge it optimally. The YC-ZNC also has built-in protection for output short-circuit.

LED Indicator Lamp

The LED indicator lamp can show three different situations:

• LED light green: Charger is not used or battery is fully charged.
• LED light red: Charger is charging.
• LED light flashes red: Alarm abnormality, such as high temperature, output current exceeding 10.0A, or output voltage exceeding 17.8V. The charger stops charging and will only continue when the problem is resolved (e.g., when the temperature is normal again).

Usage of Rolux Fast Charger YC-ZNC for V-Mount Battery

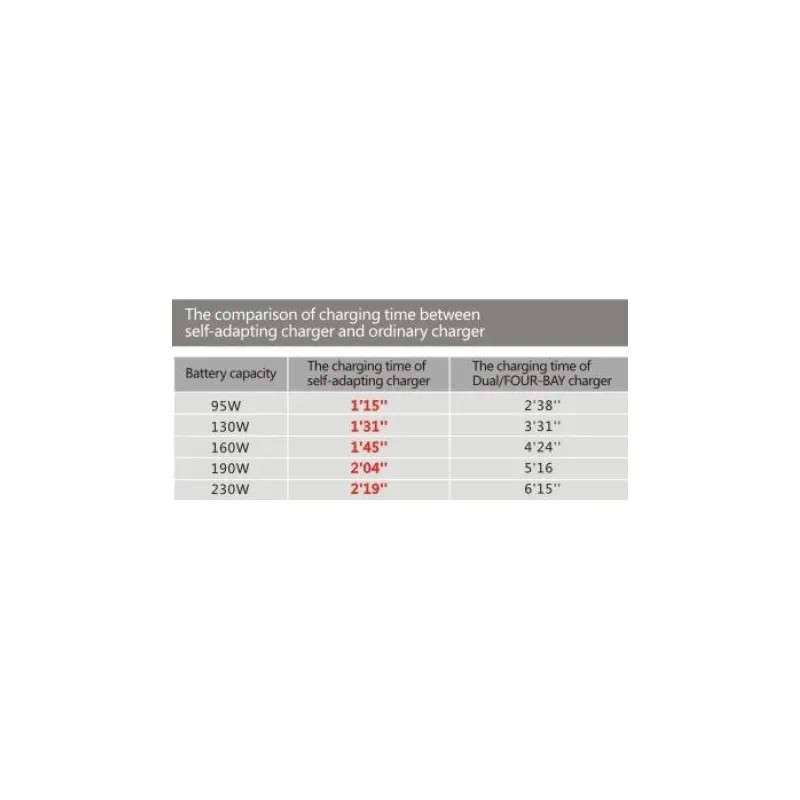

This charger is small and lightweight, but above all, it is extra fast. The YC-ZNC can charge a Rolux battery with a capacity of 130Wh in about 1.5 hours, whereas standard chargers need 3.5 hours. The charger can be used without problems with RL and RLC batteries from Rolux. It is also possible to connect the charger to batteries from Swit, Pro-X, and IDX. If your battery brand is not mentioned, please contact us for compatibility questions.

Technical Specifications YC-ZNC

• Input: AC 90V-240V
• Charging current: 8.0A (max)
• Charging power: 120W (max)
• Charging voltage: 16.8V
