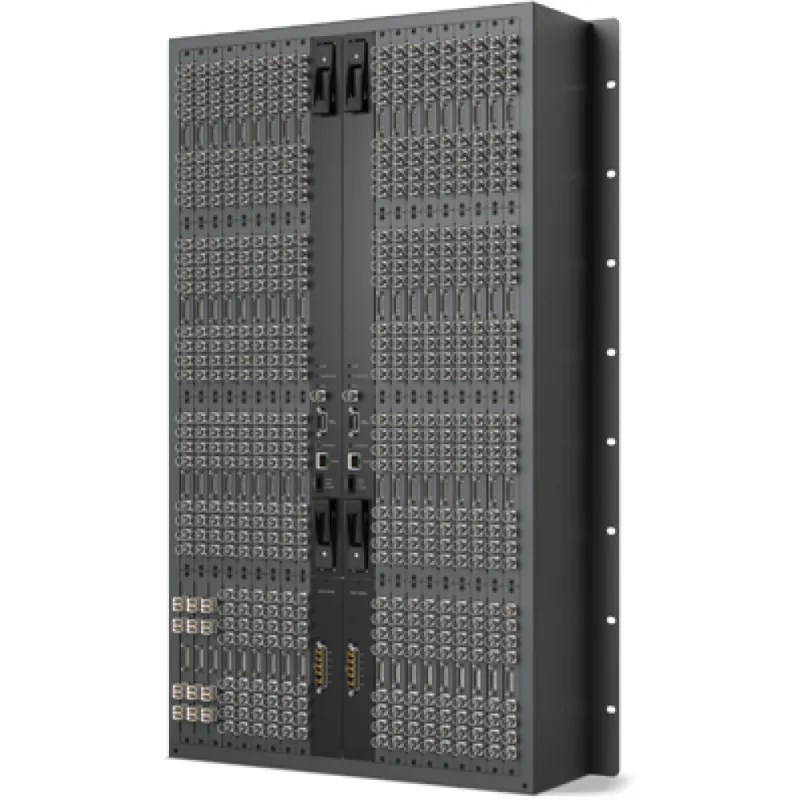

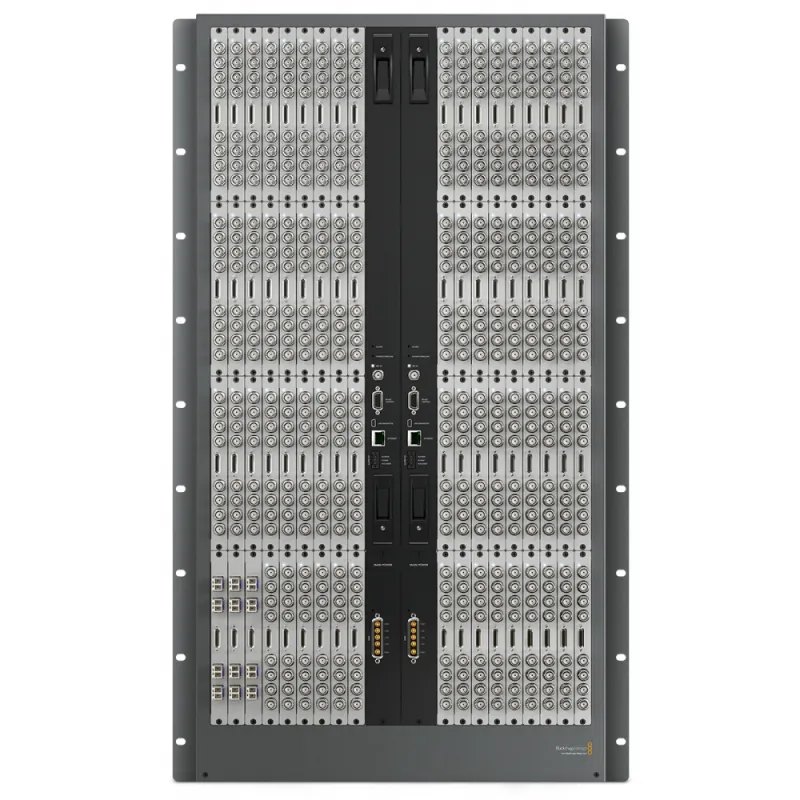

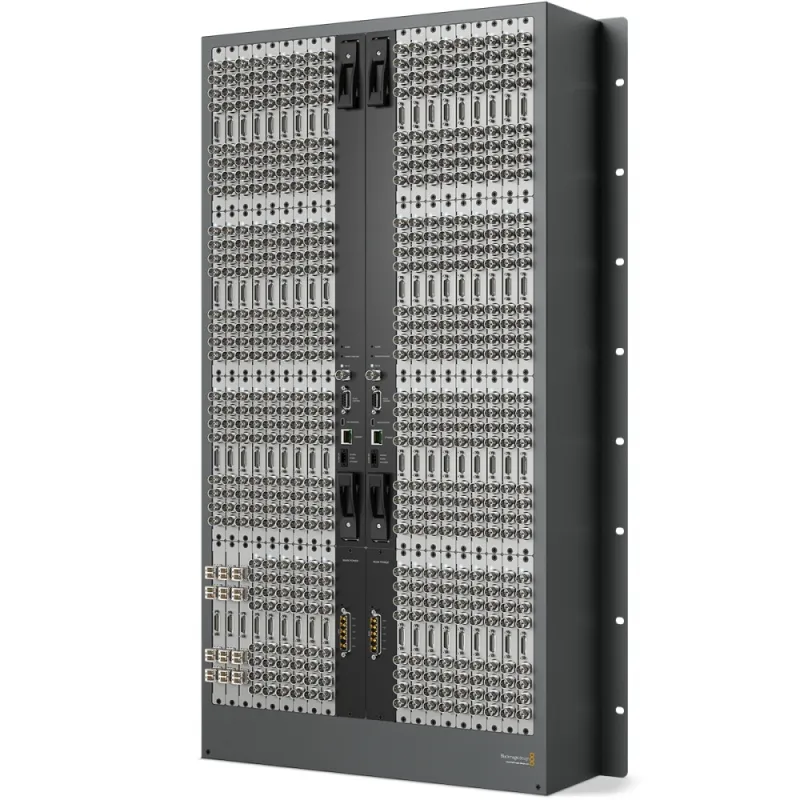

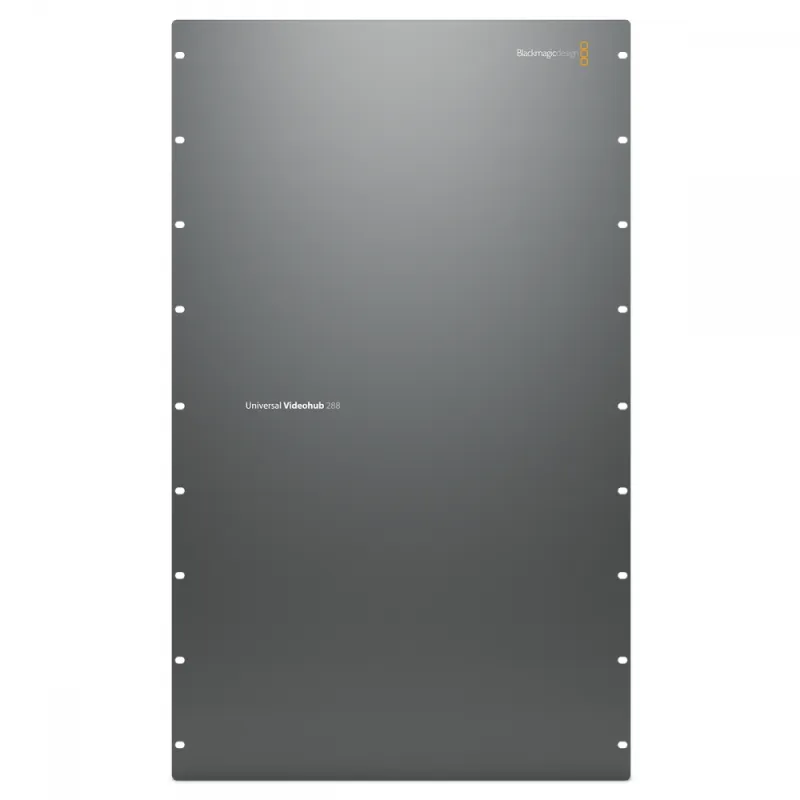

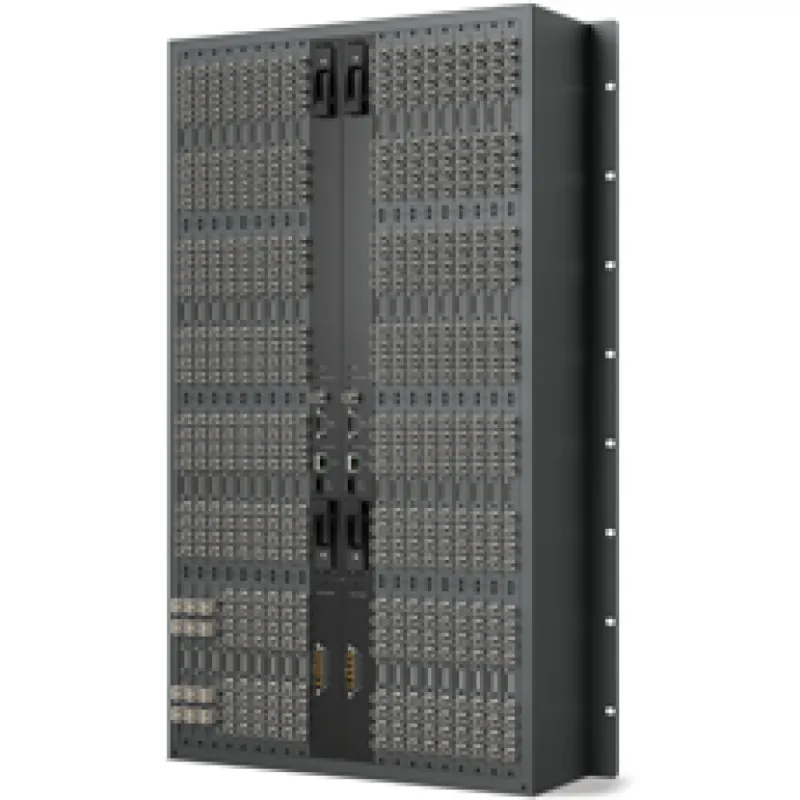

Blackmagic Design Universal Videohub 288 Mainframe (BM-VHUBUV-288CH)
Scalable SDI and Optical Fiber Routing Frame
This 18 rack unit (RU) mainframe allows integration of up to 72 BNC SDI or optical fiber SDI interface cards, supporting 3G/HD/SD video signals with full deck control. It supports either a single 72 x 72 crosspoint card or dual 288 x 288 crosspoint cards, enabling flexible scalability and redundancy options. The frame includes removable fan trays and fans for efficient cooling.
Key Features
- Supports up to 288 x 288 SDI and deck control routing
- Fully scalable with up to 72 interface cards
- Option to add single or dual crosspoint cards for redundancy
- Auto standards detection on all inputs
- All outputs are re-clocked for signal integrity

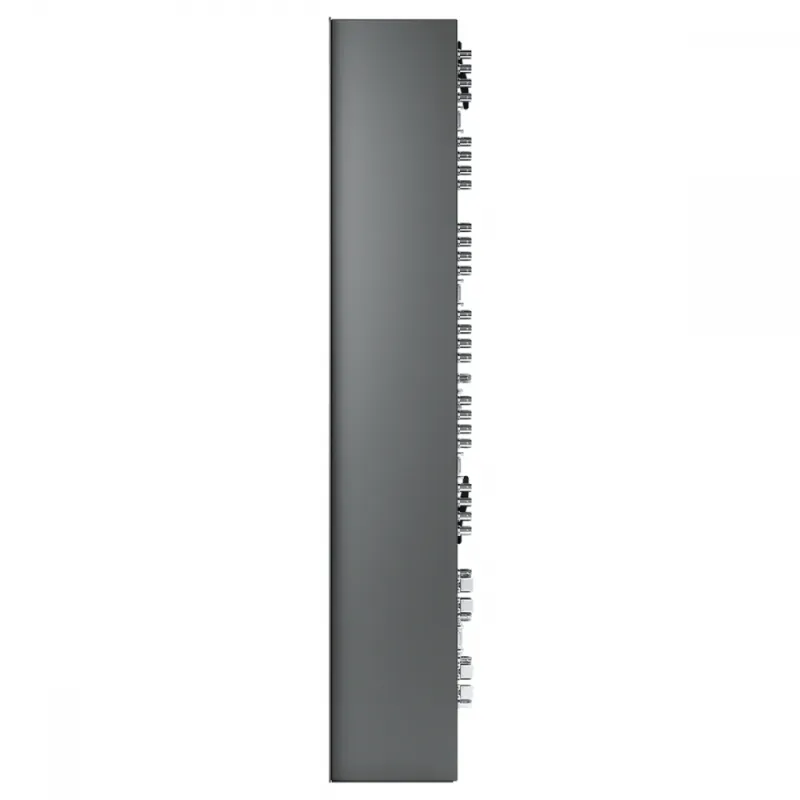

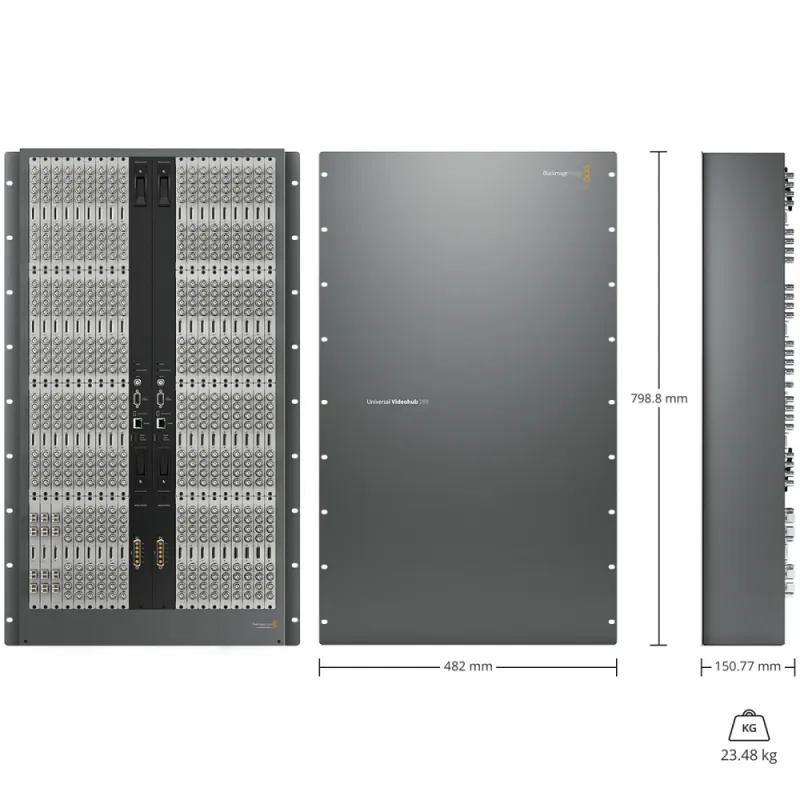

- Compact 18RU frame less than 15 cm deep
- Ethernet and serial connectivity for third-party control
- Redundant power supplies for 24/7 reliability
- Removable fan tray and fans for easy maintenance

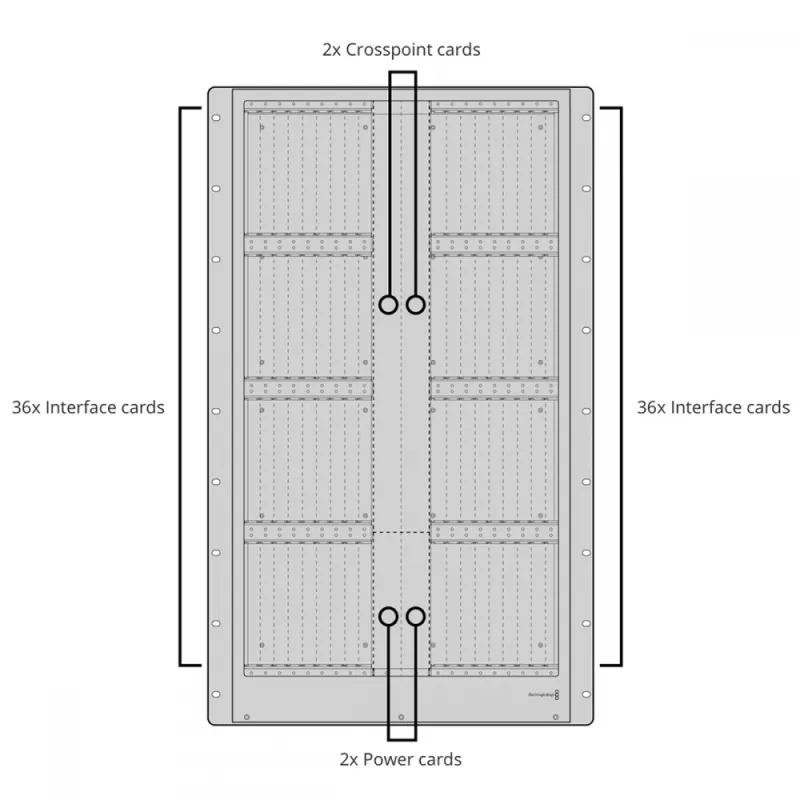

Modular System Components
Universal Videohub 288 Crosspoint Card
Supports up to 288 x 288 SDI video and deck control routing, including ethernet/serial router crosspoint control, genlock, alarm GPI, and alarm indicators. Compatible with the Universal Videohub 288 frame.
Universal Videohub SDI Interface Card
Provides 4 SDI inputs and 4 SDI outputs with 4 channels of deck control. Features full re-clocking and automatic switching between SD, HD, and 3 Gb/s SDI formats.
Universal Videohub Optical Interface Card
Includes 4 optical inputs and 4 optical outputs plus 4 deck control channels. Supports re-clocking and SD, HD, and 3 Gb/s SDI formats with 1310 nm laser drivers and receivers capable of up to 25 km transmission at 3 Gb/s.
Universal Videohub 800W Power Supply
Required for fully loaded configurations with mixed optical fiber and BNC SDI modules. Includes power cards, cables, and a 1RU power supply with dual redundant 800 Watt 12 V power supplies.
Universal Videohub Remote Cable
Enables addition of four independent remote control ports to either BNC SDI or optical fiber SDI interfaces for remote operation.
Usage and Expansion
The Universal Videohub 288 mainframe is designed for professional broadcast and production environments requiring high-density, reliable video routing with deck control. Start with a single crosspoint card for cost efficiency and expand to dual crosspoint and power cards for full redundancy and maximum uptime. The modular design allows hot-swappable interface cards and easy upgrades as system needs grow.
