Ultra-lightweight 0.3m flexible SDI cable with BNC connectors, ideal for short rack cabling.

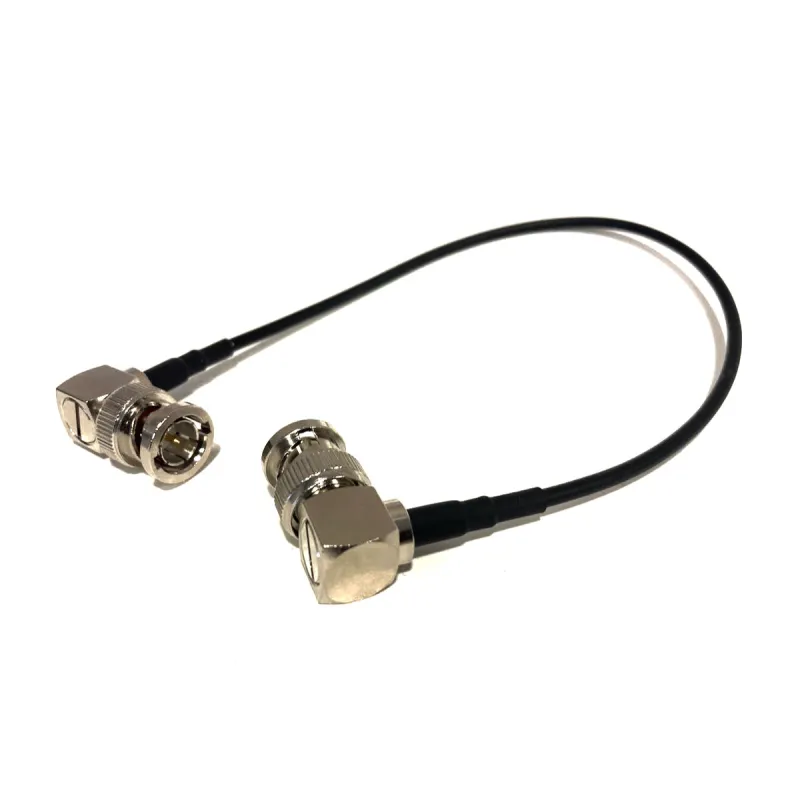

Infinitek L-1.5C2VS flexible SDI cable 0.3m BNC-BNC

Product ID: 21879
29,96 tax incl.
20-30
SKU: 21879
Model: I-15-MR/MR-BLK-03
Ean: 8586027491936
Condition: New product
Manufacturer: Infinitek

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductWires, cables for video
ConnectionsBNC to BNC
Lenght, m0.30
Weight, gr1.3
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek L-1.5C2VS flexible SDI cable 0.3m BNC-BNC

Infinitek L-1.5C2VS flexible SDI cable 0.3m BNC-BNC

Ultra-lightweight 0.3m flexible SDI cable with BNC connectors, ideal for short rack cabling.

Write a review

Product details

Canare L-1.5C2VS BNC (Male) / BNC (Male), finished thin flexible SDI coaxial cable, BNC-BNC. Cable diameter only 2.9 mm. The total cable length is given including connectors.

Canare L-1.5C2VS is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a cable center conductor, ideal for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on rectangular BNC (M) connectors on both ends.


Features

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Parameters

  • Standard manufactured lengths 200m
  • Sheath diameter (overall diameter) in mm 2.9
  • Cable weight in kg/100m 1.3
  • Central conductor - number and diameter of strands in mm 7/0.09
  • Total diameter of central conductor in mm 0.27
  • Foam dielectric - diameter in mm 1.6
  • Resistance of central conductor in /100m 41.9
  • Resistance of outer conductor in /100m 3.3
  • Static capacitance in pF/m 69
  • Attenuation in dB/100m 8.7
  • Impedance in 75
