Ultra-lightweight 75 ohm coaxial cable with BNC connectors, ideal for short rack cabling.
Infinitek L-1.5C2VS RED BNC 0.3m
Product ID: 21980
SKU: 21980
Model: I-15-M/M-RED-03
Ean: 8586027490717
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Cables |
| Type of Product | Wires, cables |
| Connections | BNC to BNC |
| Lenght, m | 0.30 |
| Weight, gr | 1.3 |
Product details

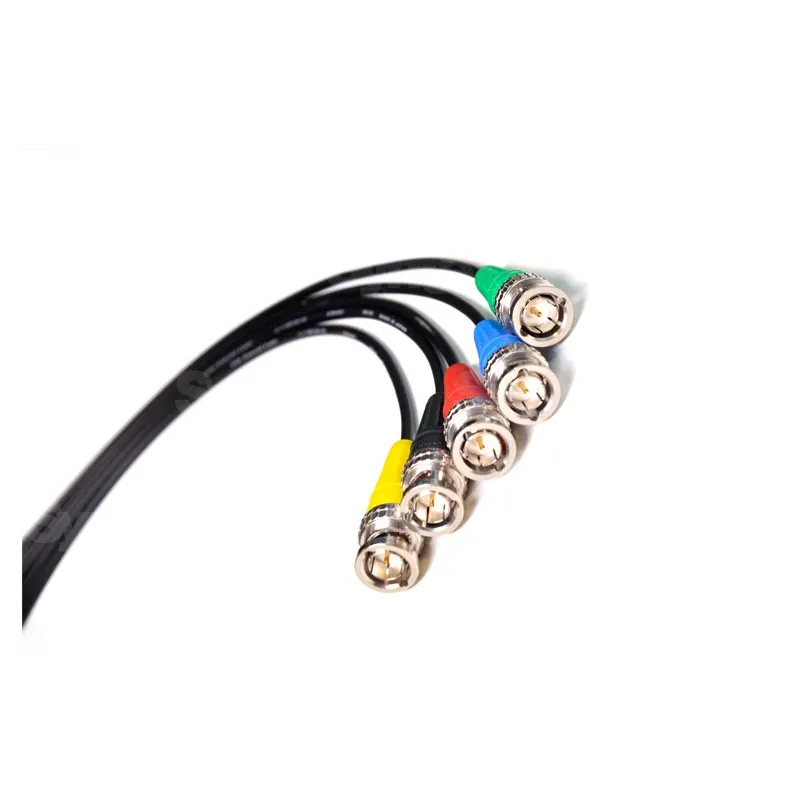

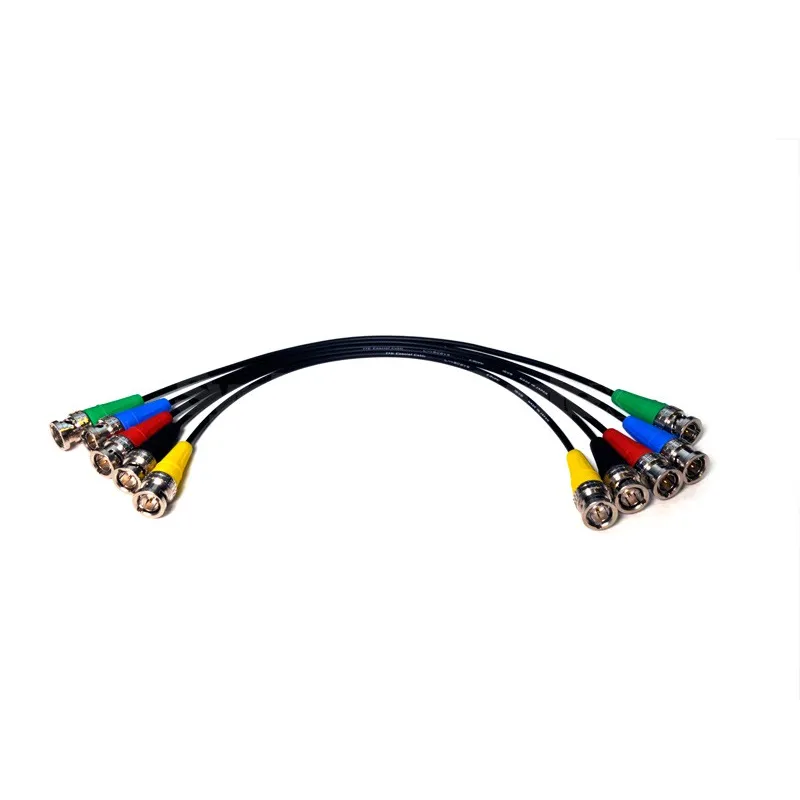

Infinitek L-1.5C2VS RED BNC (M) / BNC (M) 0.3m
Red boots
Canare L-1.5C2VS is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor, ideal for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. It features crimp-on BNC (M) connectors type BCP-C1 at both ends.
Features
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
Parameters
- Standard manufactured lengths: 200m
- Sheath diameter: 2.9 mm
- Cable weight: 1.3 kg/100m
- Central conductor: 7/0.09 mm
- Total diameter of central conductor: 0.27 mm
- Foam dielectric diameter: 1.6 mm
- Resistance of central conductor: 41.9 Ω/100m
- Resistance of outer conductor: 3.3 Ω/100m
- Static capacitance: 69 pF/m
- Attenuation: 8.7 dB/100m
- Impedance: 75 Ω
