Ultra-lightweight 75 ohm coaxial cable with BNC connectors, ideal for short rack cabling.

Infinitek L-1.5C2VS RED BNC 0.5m

Product ID: 21998
24,67 tax incl.
20-30
SKU: 21998
Model: I-15-M/M-RED-05
Ean: 8586027490700
Condition: New product
Manufacturer: Infinitek

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductWires, cables for video
ConnectionsBNC to BNC
Lenght, m0.5
Weight, gr1.3
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Infinitek L-1.5C2VS RED BNC 0.5m

Infinitek L-1.5C2VS RED BNC 0.5m

Ultra-lightweight 75 ohm coaxial cable with BNC connectors, ideal for short rack cabling.

Write a review

Product details

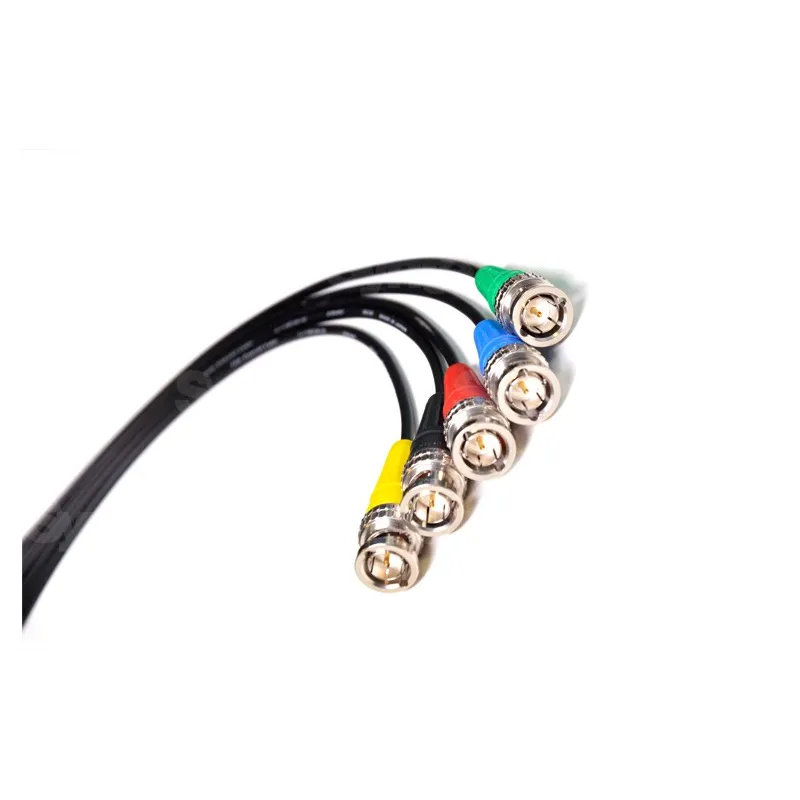

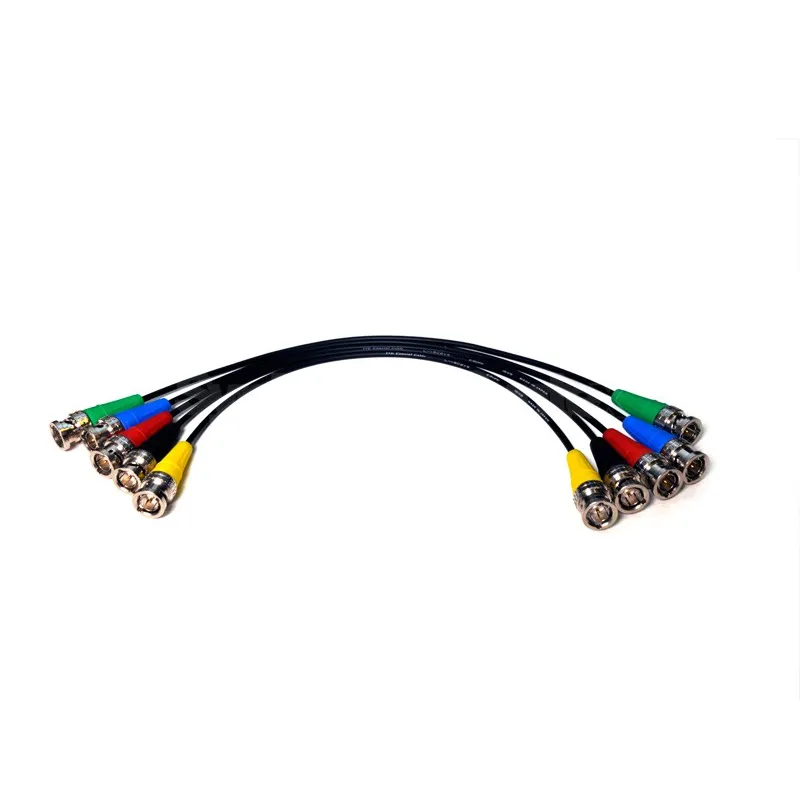

L-1.5C2VS RED BNC (M) / BNC (M) length 0.5m - Red boots

Canare L-1.5C2VS is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor, ideal for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors type BCP-C1 at both ends.

Features

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Parameters

  • Standard manufactured lengths 200m
  • Sheath diameter (overall diameter) in mm 2.9
  • Cable weight in kg/100m 1.3
  • Central conductor - number and diameter of stranded wire in mm 7/0.09
  • Total diameter of central conductor in mm 0.27
  • Foam dielectric - diameter in mm 1.6
  • Resistance of central conductor in /100m 41.9
  • Resistance of outer conductor in /100m 3.3
  • Static capacitance in pF/m 69
  • Attenuation in dB/100m 8.7
  • Impedance in 75
