The Canare L-1.5C2VS is a lightweight, flexible 75 ohm coaxial cable ideal for short rack cabling with BNC connectors.

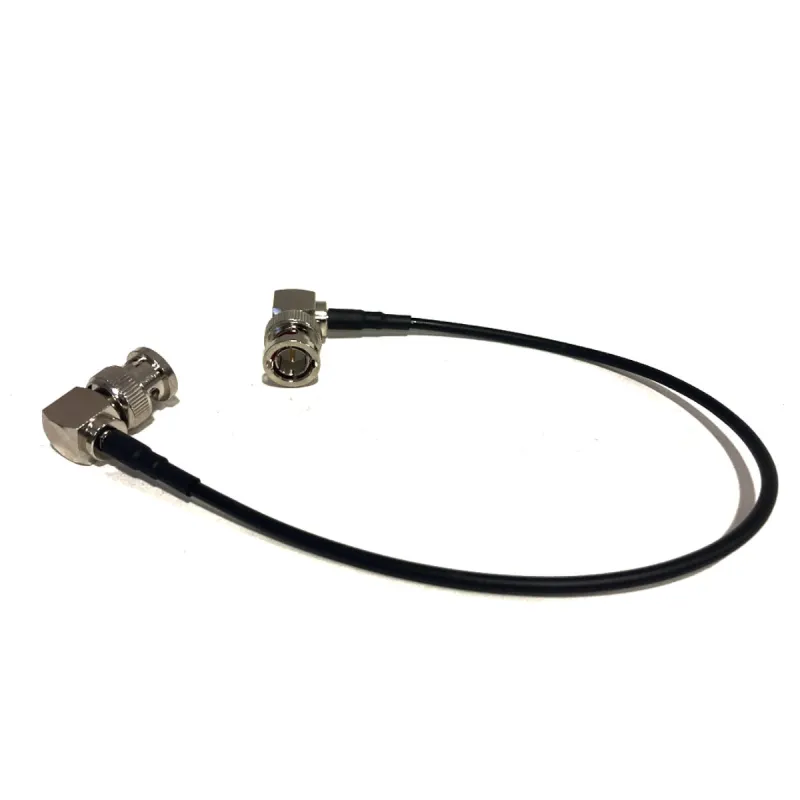

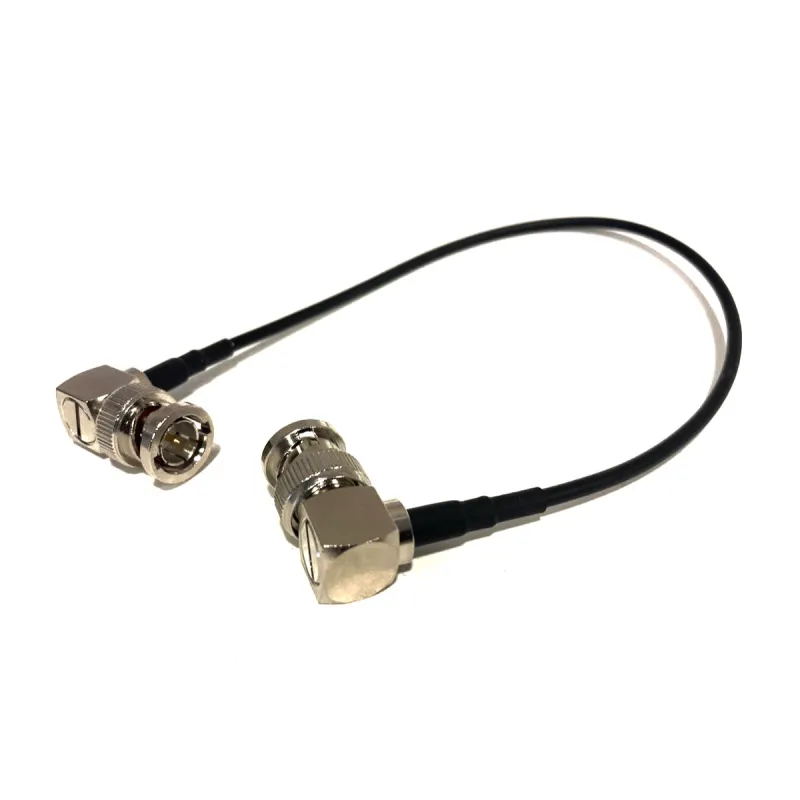

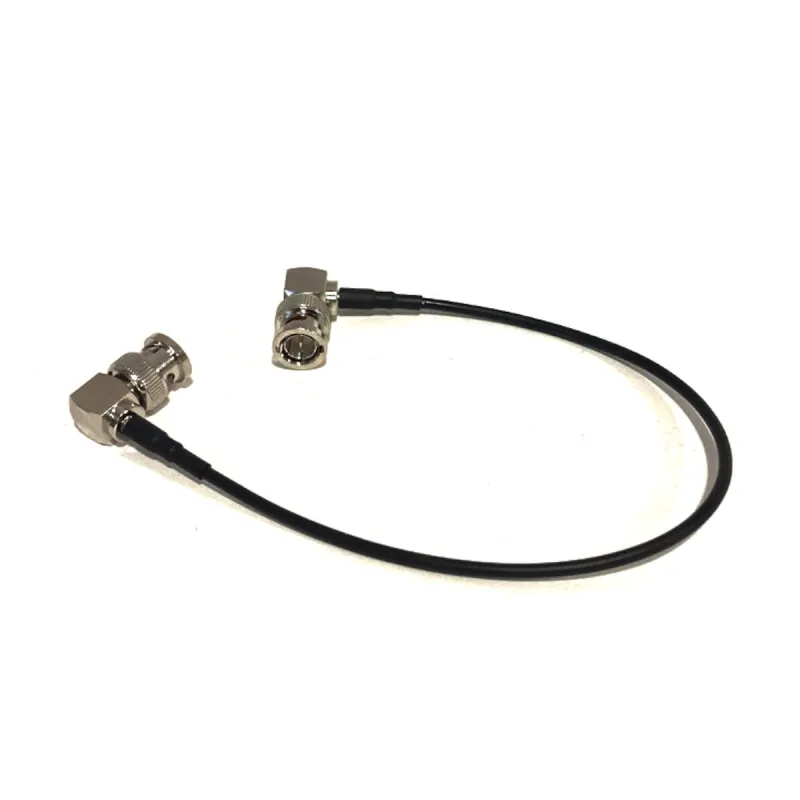

Infinitek L-1.5C2VS flexible SDI cable 2,9mm BNC-BNC 0,5m, BLK, right angle
Product ID: 60078
SKU: 60078
Ean: 8586027492391
Condition: New product
Manufacturer: Infinitec
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Audio Cable |
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 0.50 |
| Lenght, m | 0.5 |
Product details
Product description
Canare L-1.5C2VS BNC (Male) / BNC (Male), finished thin flexible SDI coaxial cable, BNC-BNC. Cable diameter only 2.9 mm. The total cable length is given including connectors.
Canare L-1.5C2VS is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a cable center conductor, ideal for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on rectangular BNC (M) connectors on both ends.
Features
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
Parameters
- Standard manufactured lengths 200m
- Sheath diameter (overall diameter) in mm 2.9
- Cable weight in kg/100m 1.3
- Central conductor - number and diameter of strands in mm 7/0.09
- Total diameter of central conductor in mm 0.27
- Foam dielectric - diameter in mm 1.6
- Resistance of central conductor in /100m 41.9
- Resistance of outer conductor in /100m 3.3
- Static capacitance in pF/m 69
- Attenuation in dB/100m 8.7
- Impedance in 75
