Ultra-lightweight 75 ohm coaxial cable with BNC connectors, ideal for short rack cabling.
Infinitek L-1.5C2VS YEL BNC 0.3m
Product ID: 22034
SKU: 22034
Model: I-15-M/M-YEL-03
Ean: 8586027490762
Condition: New product
Manufacturer: Infinitek
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 0.30 |
| Weight, gr | 1.3 |
Product details

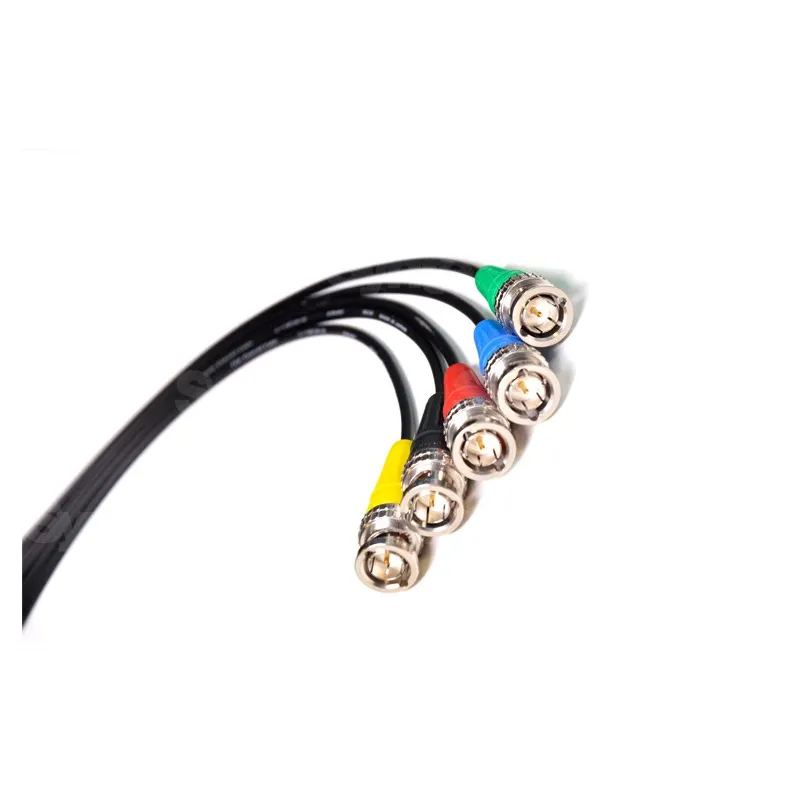

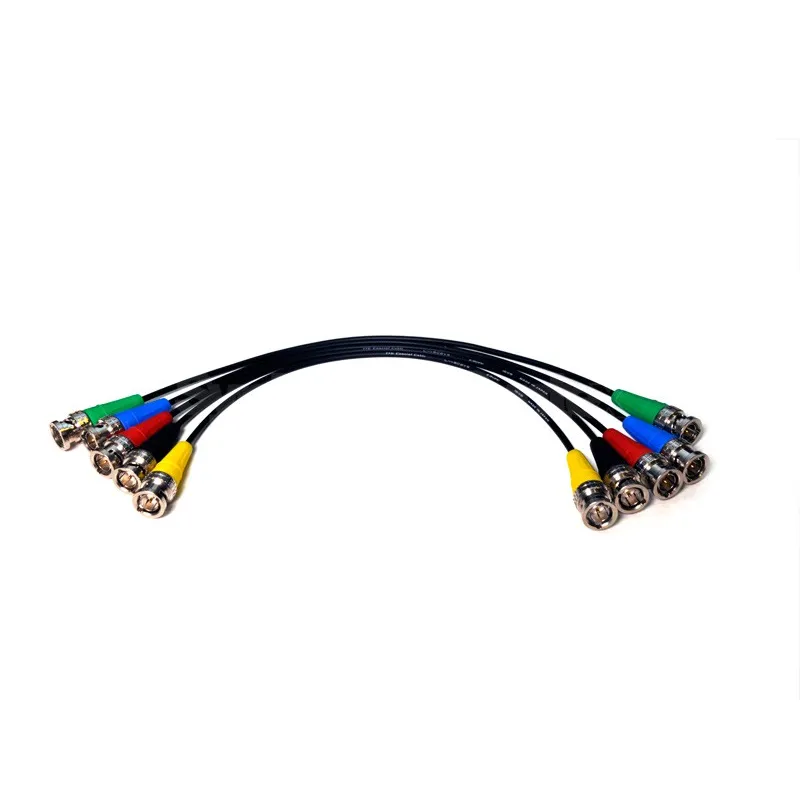

L-1.5C2VS YEL BNC (M) / BNC (M) length 0.3m - Yellow boots
Canare L-1.5C2VS is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor, ideal for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors type BCP-C1 at both ends.
Features
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
Parameters
- Standard manufactured lengths 200m
- Sheath diameter (overall diameter) in mm 2.9
- Cable weight in kg/100m 1.3
- Central conductor - number and diameter of stranded wire in mm 7/0.09
- Total diameter of central conductor in mm 0.27
- Foam dielectric - diameter in mm 1.6
- Resistance of central conductor in /100m 41.9
- Resistance of outer conductor in /100m 3.3
- Static capacitance in pF/m 69
- Attenuation in dB/100m 8.7
- Impedance in 75
