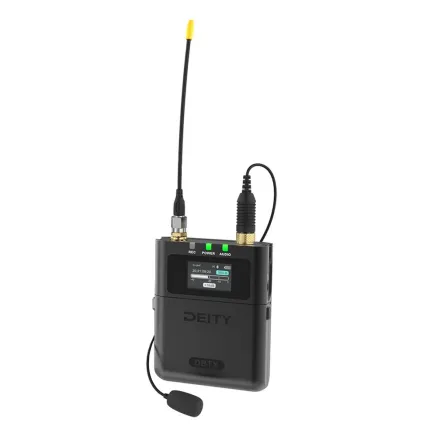

Deity THEOS DBTX Bodypack Transmitter

Deity THEOS DBTX Bodypack Transmitter

• Built-in 32-bit float recorder in the transmitter
• Recordings are saved to a Micro SD card; up to 128Gb
• Can wirelessly sync timecode from the Deity TC-1 timecode generator
• Can be remotely controlled via the Sidus Audio™ app
• Up to 14hrs of battery life with lithium batteries
• Full-color LCD screen
• CNC-milled aluminum chassis
• SMA antenna ports

The transmitters feature a built-in recorder for backup files. The onboard recorder features both 24-bit and 32-bit float formats so you never have to worry about gain staging on your backup WAV files. Recordings are saved to a Micro SD card, up to 128Gb in size. And Theos’ most unique feature is that the transmitter can be natively synced wirelessly from the Deity TC-1 timecode generator. Timecode ensures your backup WAV files will sync with your master file in post-production. Alternatively, the DBTX can be synced via the 3.5mm jack if you are using 3rd party timecode generators.

The black Deity W.Lav Pro is a miniature IP57 waterproof omnidirectional lavalier microphone with a microdot connector designed to deliver crisp, natural speech reproduction for film and video productions, even in challenging outdoor conditions. It’s 5.9 attached cable is terminated with a microdot connector for easy integration with a Microdot-equipped mic transmitter or to be used with microdot adapters. Microdot adapters from Deity Microphones allow you to adapt the W.Lav Pro to Sennheiser Locking 3.5mm, Sony UWP 3.5mm, Lectrosonics TA5F, Shure TA4F, various Lemo transmitters and Deity Connect. (Note: Microdot adapters are sold separately)

The W.Lav Pros pre-polarized condenser capsule offers an omnidirectional polar pattern with a wider frequency response and higher SPL handling than the W.Lav mic. The included foam windscreens allow you to overcome light wind noise and plosives. Being the same size as industry-standard lavalier microphones, the W.Lav Pro is compatible with common accessories from LMC, Ursa Straps, Bubblebee Industries, and more. And with new digital wireless systems, RF interference is an issue that will affect lavaliers. We added extra shielding inside the cable of the W.Lav Pro to help protect against digitally modulated RF signals that could cause you issues on your next shoot.

In the Box
1x THEOS DBTX Bodypack Transmitter
2x Antenna
1x Lavalier Mic W.lav pro (TRS)
1x USB cable
1x USB A-C converter
2x AA Battery
1x belt clip
1x 32GB SD card

Specifications

Transmitter (DBTX)

RF Modulation

Proprietary Digital RF Modulation

RF Power

10mW, 25mW, 50mW, 100mW**

RF Spectrum

550 ~ 940Mhz*

RF Frequency Step

100KHz

RF Spacing

700KHz

Antenna Connector

50 Ω SMA

Dynamic Range

123dB

Distortion

<0.5%

Frequency Response

20~20KHz

Low Cut

0FF/75Hz/100Hz/150Hz

Mic Power

MIC-3V, LINE

Mic Connector

3.5mm TRS

Input Gain

0 ~ +30dBV

ADC Bit-Depth

24

ADC Sampling-Rate

48

Timecode Reader / Generator

Clock Accuracy

0.15 PPM (1 Frame Out in 72 Hours)

Timecode Type

LTC (SMPTE)

Timecode Frame-Rates

23.98, 24, 25, 29.97, 29.97DF, 30, 30DF

Internal Recording

Media

MicroSD Card (Flash Memory)

File Format

.wav BWF

Record Format

24/32bit float

EIN

-132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)

Lavalier Mic W.lav pro (TRS)

Color

Black

Sound Field

Mono

Frequency Response

20Hz – 20KHz

Polar Pattern

Pre-Polarized Condenser

Capsule Type

Omni

Sensitivity

40dB

Maximum SPL

>110dB SPL*

Dynamic Range

110dB typical

Weatherproof Standard

IP57

Mic Head Size

4mm*17mm

Cable Length

1.8m

Connect Type

Microdot

*Some microdot adapters may allow for higher SPL amounts
