Godox MoveLink II M2 bezvadu mikrofonu komplekts 2+1 3.5mm

Godox MoveLink II M2

Raidītājs un uztvērējs

• Katrs M2 raidītājs sver mazāk nekā 30 gramus.
• Iebūvēts klips un daudzvirzienu mikrofons ērtai piestiprināšanai

Funkcijas

• 2,4 GHz frekvenču joslas platuma sistēma ar maksimālo diapazonu 100 metri
• 3,5 mm TRS (stereo mini jack) izeja savienošanai ar kamerām, audio ierakstītājiem vai citām iekārtām
• Frekvenču diapazons no 50 Hz līdz 20 kHz
• 90 dBA jutība skaļu skaņu ierakstīšanai bez kropļojumiem
• Iekšējās uzlādējamās litija jonu baterijas ar C tipa USB uzlādi ports

MoveLink II RX

• Simulētā izeja: 3,5 mm TRS
• Frekvenču diapazons: 50 Hz - 20 kHz
• Signāla un trokšņa attiecība: 70dB vai augstāka
• Stiprinājuma metode: Aizmugurējais klips (uzstādīts uz kameras hot shoe)
• Displejs: TFT displejs
• Dinamiskais diapazons: 90 dBA (mikrofona priekšpastiprinātājs)
• Darbības diapazons: 1,5 mm (1,5 mm): Maks. 100 m (bez pajumtes)
• Barošanas avots: Iebūvēta litija baterija
• Darba laiks: RX Aptuveni 8 h, TX Aptuveni 10 h (mainās atkarībā no vides)
• Akumulatora ietilpība: 300 mAh
• Pārraides veids: 2,4 GHz frekvences pārlēcienu sistēma
• Skaņas uztveršanas režīms: Visvirziena
• Darba vides temperatūra: 10-50°C
• Izmēri: Garums 50 mm x platums 40 mm x biezums 14 mm
• Svars: 27g

MoveLink II TX

• Jutība: 32 dB/2 dB
• Maks. SPL: 110 dB
• Imitētā ieeja: 1: 3,5 mm TRS lavalier mikrofona ieeja

Komplektā ietilpst

• 2x MoveLink II TX (raidītājs)
• 1x MoveLink II RX (uztvērējs)
• 2x daudzvirzienu Lavalier mikrofons
• 2x Windscreen
• 1x 3,5 mm TRS TRS audio savienojuma kabelis (kamerai)
• 1x 3,5 mm TRS TRRS audio savienojuma kabelis (viedtālrunim)

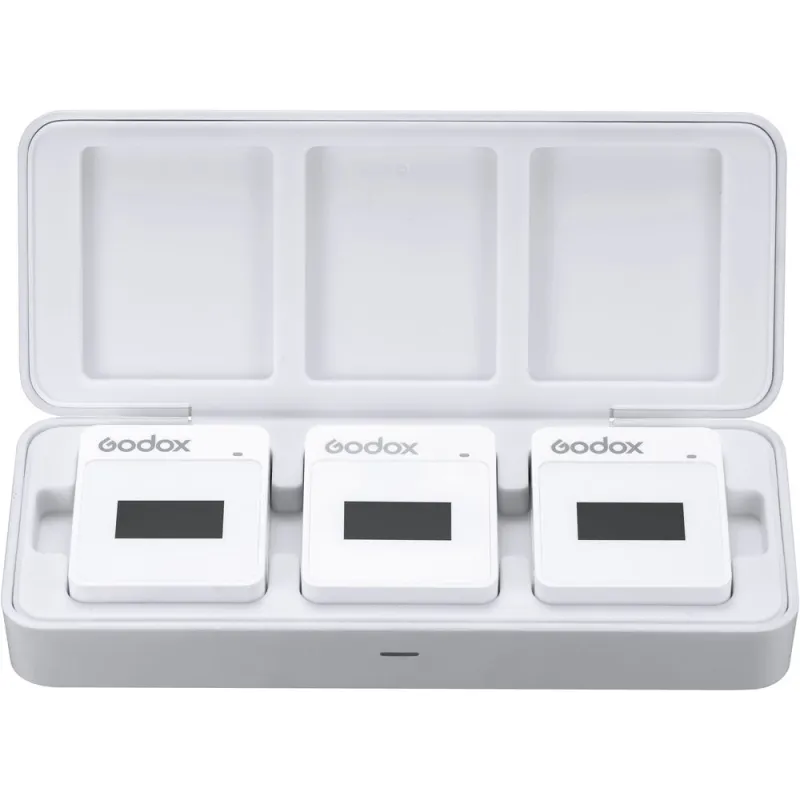

• 1x MoveLink II uzlādes futrālis ML C3
• 3x C tipa USB kabelis
• 1x aproce uz rokas
• 3x Dzelzs plāksne

Godox MoveLink II M2
The Movelink II M2 is a wireless microphone system which can be used for various applications, such as recording audio for video productions, presentations, interviews, and so on. It is a useful tool for anyone looking for a wireless microphone system with good sound quality and reliable performance.


Consisting of a transmitter and receiver, each transmitter of the M2 weighs less than 30 grams and has a built in clip and an omnidirectional microphone, so it can be easily attached to a lapel or shirt for quick and easy wireless audio recording.


With a frequency of 2.4 GHz bandwidth system, the M2 has a maximum range of 100 metres.
The microphone itself has a 3.5mm TRS (stereo mini jack) output, which can be connected to a camera, audio recorder or other equipment with a 3.5mm audio input.


The frequency response of the Movelink II M2 is 50 Hz to 20 kHz, meaning the microphone can record audio in a wide frequency range. The sensitivity of the microphone is 90 dBA, meaning it is capable of recording relatively loud sounds without distortion.


The transmitters and receiver are equipped with internal rechargeable lithium ion batteries, which last throughout the day. They can be charged via the USB Type C ports.,
MoveLink ll RX

Simulated Output: 3.5mmTRS
Frequency Range: 50Hz 20KHz
Signal to noise Ratio: 70dB or higher
Fixing Method: Back clip (installed onto cameras hotshoe)
Display: TFT Display
Dynamic Range: 90dBA (microphone preamplifier)
Working Range: Max.100m (in no shelter situation)
Power Supply: Built in lithium battery
Working Time: RX: Approx.8h   TX: Approx.10h (the working time of TX and RX will vary depending on different environments)
Battery Capacity: 300mAh
Transmission Type: 2.4GHz Frequency hopping system
Sound Pick up Mode: Omnidirectional
Working Environment Temperature: 10~50
Dimension: Length 50mm x width 40mm x thickness 14mm
Weight: 27g



Movelink II TX

Sensitivity: 32dB=/ 2dB
Max. SPL: 110dB
Simulated input: 3.5mm TRS lavalier microphone input
,

2x Movelink II TX (Transmitter)
1x Movelink II RX (receiver)
2x Omnidirectional  Lavalier Microphone
2x Windscreen
1x 3.5mm TRS TRS Audio Connect Cable( for Camera)
1x 3.5mm TRS TRRS Audio Connect Cable (For smartphone)
1x Movelink II Charging Case ML C3
3x USB Type C Cable
1x Wrist wrap
3x Iron plate
