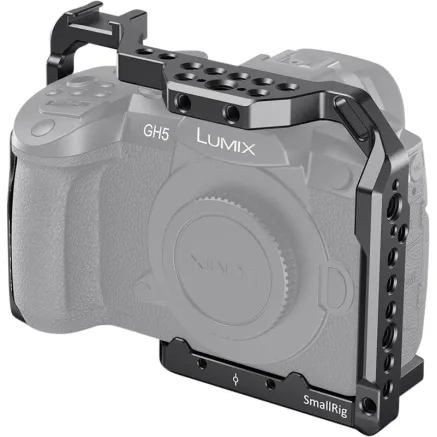

SmallRig 2646 Panasonic Lumix GH5/GH5S Cage CCP2646

SMALLRIG 2646 Cage for Panasonic GH5 & GH5S

The cage secures to the camera via a 1/4"-20 screw and each side features an M2.5 thread for further security to prevent twisting.

Featuring multiple 1/4"-20, 3/8"-16, and ARRI 3/8"-16 accessory threads for accessories, such as SmallRig Top Handle 2165, Side Handle 2093, and Monitor Mount 2348.

You can also attach SmallRig HDMI Cable Clamp 1822 to protect the HDMI cable.

The cage integrates with a cold shoe on the top for microphone and light, and features a NATO rail on the left side for SmallRig NATO Handle 2187.

A flat head screwdriver is included to secure the camera screw and stores on the bottom of the cage.

The 1/4"-20 threaded hole in the bottom front is for attaching a 15mm Rod 915 for follow focus.

Besides, the cage provides a strap slot on each side for carry strap.

Optional SmallRig DMW-XLR1 Helmet Kit 2367 is sold separately allows for mounting more accessories on the top.

Note:
Please take off the triangle split ring on each side of the camera before installing the cage.

Package Includes: 1 x Cage
2 x M2.5 Screw
1 x Allen Wrench

SmallRig 2646 Panasonic Lumix GH5/GH5S Cage
The SmallRig 2646 Cage for Panasonic GH5 and GH5S CCP is a formfitting full cage designed to provide protection and accessory mounts for GH5/GH5S. The cage secures to the camera via a 1/4 20 screw and each side features an m2.5 thread for further security to prevent twisting. Featuring multiple 1/4 20, 3/8 16, and ARRI 3/8 16 accessory threads for accessories, such as Top Handle 2165, Side Handle 2093, and Monitor Mount BSE2348. You can also attach the HDMI Cable Clamp 1822 to protect the HDMI cable. The cage integrates with a cold shoe on the top for microphone and light, and features a NATO rail on the left side for NATO Handle 2187. A flat head screwdriver is included to secure the camera screw and stores on the bottom of the cage. The 1/4 20 threaded hole in the bottom front is for attaching a 15mm Rod 915 for follow focus. Besides, the cage provides a strap slot on each side for carry strap. Optional DMW XLR1 Helmet Kit HTS2367 is sold separately allows for mounting more accessories on the top.


NotePlease take off the triangle split ring on each side of the camera before installing the cage.
,

Formfitting Full Cage for Panasonic GH5 and GH5S
Multiple 1/4 20 & 3/8 16 & ARRI 3/8 16 Accessory Threads
Integrated Cold Shoe & NATO Rail
Locks Camera via 1/4 20 & M2.5 Screw to Prevent Twisting
Built in Flat Head Screw Driver on the Bottom
2 year warranty
,

1 x Cage
2 x M2.5 Screw
1 x Allen Wrench
,

Panasonic GH5 en GH5S camera
