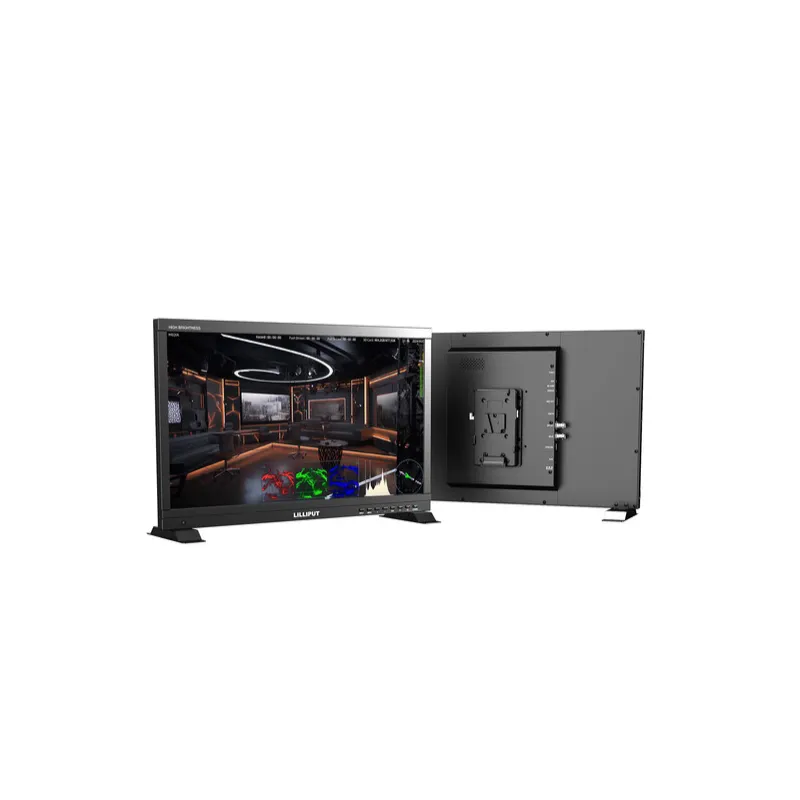

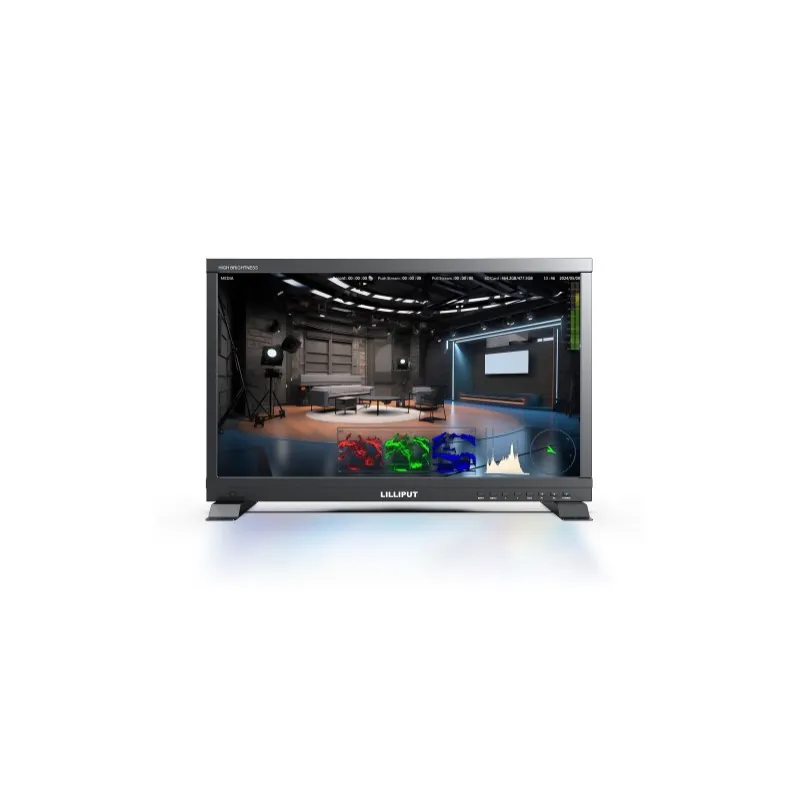

The Lilliput PVM220S-E is a 21.5" professional live stream recording monitor with 1000 cd/m² brightness, 1920x1080 resolution, 3G-SDI and HDMI 2.0 I/O, direct 1080p recording to SD card (up to 512GB), advanced monitoring tools including waveform, vectorscope, 3D LUT, HDR (HLG), and false color, powered via 9-24V DC or integrated V-Mount plate, making it ideal for broadcast-quality on-set monitoring and recording.
The PVM220S-E 21.5" Live Stream Recording Monitor from Lilliput is a professional monitor designed for live streaming and recording. Boasting 1000 cd/m² brightness and 1000:1 contrast, it offers a range of input options, including 3G-SDI and HDMI 2.0, ensuring compatibility with various devices for broadcast-quality monitoring. This monitor can record up to 1080p HDMI or SDI video signals directly to an SD card with a maximum capacity of 512GB. It is rich in advanced features like precise waveform and vector functions, 3D LUT and HDR support, and full-screen waveform and vectorscope functions, making it ideal for accurate color grading and picture analysis. The PVM220S-E can be powered with the included 15 VDC, 4A power adapter, and it comes with an integrated V-mount battery plate. With 178° viewing angles, loop-through SDI/HDMI outputs, 3.5mm audio I/O, built-in mono speaker, and VESA 75/100mm mounting, it delivers reliable performance in professional video environments.
Key Features
- 21.5" 1000-nit Full HD (1920x1080) display
- 3G-SDI and HDMI 2.0 input/output with loop-through
- Direct recording to SD card (up to 1080p, 512GB max)
- Waveform, vectorscope, false color, focus peaking, 3D LUT, HDR (HLG)
- Integrated V-Mount battery plate
- USB-A for LUT/firmware, RJ45 LAN, ambient light sensor
- VESA 75x75 / 100x100 mm mounting
- Lilliput PVM220S-E 21.5" Live Stream Recording Monitor (V-Mount)
- 15 VDC, 4A Power Adapter
- 2 x Base Bracket
- Limited 1-Year Manufacturer Warranty
- Display
- Panel Type: LCD
- Size: 21.5" / 54.6 cm
- Native Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Brightness: 1000 nits / cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle (H/V): 178° / 178°
- HDR Support: Hybrid Log Gamma
- Video I/O
- Inputs: 1x HDMI 2.0, 1x BNC (3G-SDI)
- Outputs: 1x HDMI 2.0, 1x BNC (3G-SDI)
- Embedded Audio: HDMI 8-ch, SDI 2-ch
- Supported Formats
- HDMI: UHD 4K 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
- SDI: 1080p 60/50/30/25/24, 1080PsF 30/25/24, 1080i 60/50
- Recording
- Media: SD/SDHC/SDXC (512GB max)
- Resolution: Up to 1080p
- Audio
- I/O: 1x 3.5mm Input, 1x 3.5mm Headphone Output
- Built-In Speaker: 1 (Mono)
- Connectivity
- Other I/O: 1x USB-A (Firmware/LUT), 1x USB-C (Firmware), 1x RJ45 (LAN)
- Power
- Input: 9 to 24 VDC
- Consumption: 53 W
- Battery: 1x V-Mount (fixed plate)
- Adapter: 15 VDC, 4A
- Mounting
- VESA: 75 x 75 mm, 100 x 100 mm
- Environmental
- Operating: 0 to 50°C
- Storage: -20 to 60°C
- Physical
- Dimensions: 20 x 12.6 x 1.9" / 508 x 321 x 47 mm
- Weight: 10.47 lb / 4.75 kg
