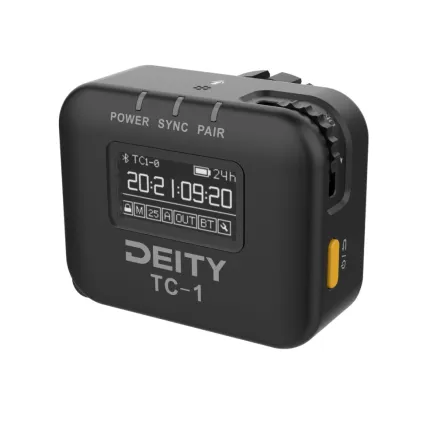

Deity TC-1 Timecode device

The Deity TC-1 is a wireless timecode box designed to feel familiar. The on-board menu and display allow you to operate the unit and wireless sync multiple TC-1 units at the same time. With the free Bluetooth® app, users are able to control every aspect of the TC-1 as well as other products from Deity from the Sidus Audio family of products. The locking 3.5mm timecode port means you don’t have to worry about your cables becoming unplugged after a unit has been mounted on a camera. The TC-1 takes the best features people love about other timecode boxes and combines all of it into a unified piece of gear. The TC-1 was designed to adapt to different workflows.

Features
• Up to 28hrs of Battery Life
• Wireless Bluetooth® Phone App Syncing; 250ft Range
• 150 DPI OLED Display
• Locking 3.5mm TC I/O Port
• On-Board Microphone For Reference Audio
• Built-In Menu; On-board Navigation

Included in delivery:
• Deity TC-1 Wireless Timecode Box
• Deity Timecode Cold Shoe Mount
• Locking 3.5mm TRS to TRS Cable
• USB-C to TRRS Cable
• USB-C to Type A Firmware Adapter
• 1/4” to 3/8” Thread Adapter
• Warranty Card and Manual

Specifications

Timecode

SMPTE

Wireless Type

2.4G RF / Bluetooth 5.0

Wireless Range

~9m 2.4G RF / ~75m Bluetooth 5.0

Wireless RF Channels

8

Drift

< 1 Frame/24h

Frame Rates

23.98, 24, 25, 29,97, 29.97DF, 30

Timecode Input / Output

Locking 3.5mm TRS

Audio Track

Built-In Omni Microphone

Battery Life

Up to 24Hrs

Battery Type

LiPo

Battery Capacity

950mAh

Charging Port

USB-C

Charging Time

3h

Mounting

Hook-n-Loop

Dimensions

53.4 x 40 x 21.8 mm

Weight

41g
