SmallRig Mounting Plate for DJI Ronin S (pair) 2234

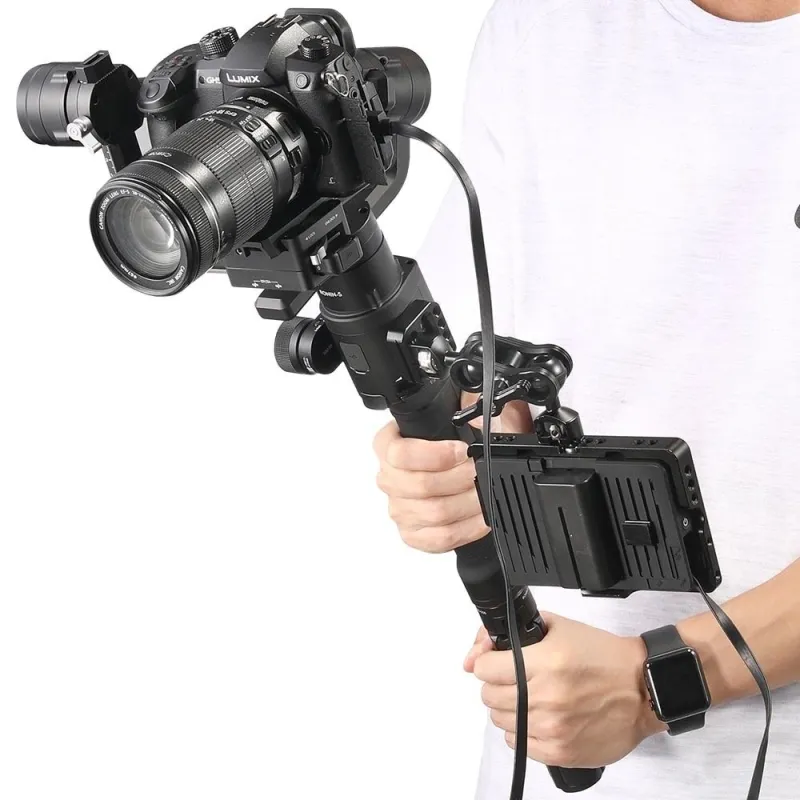

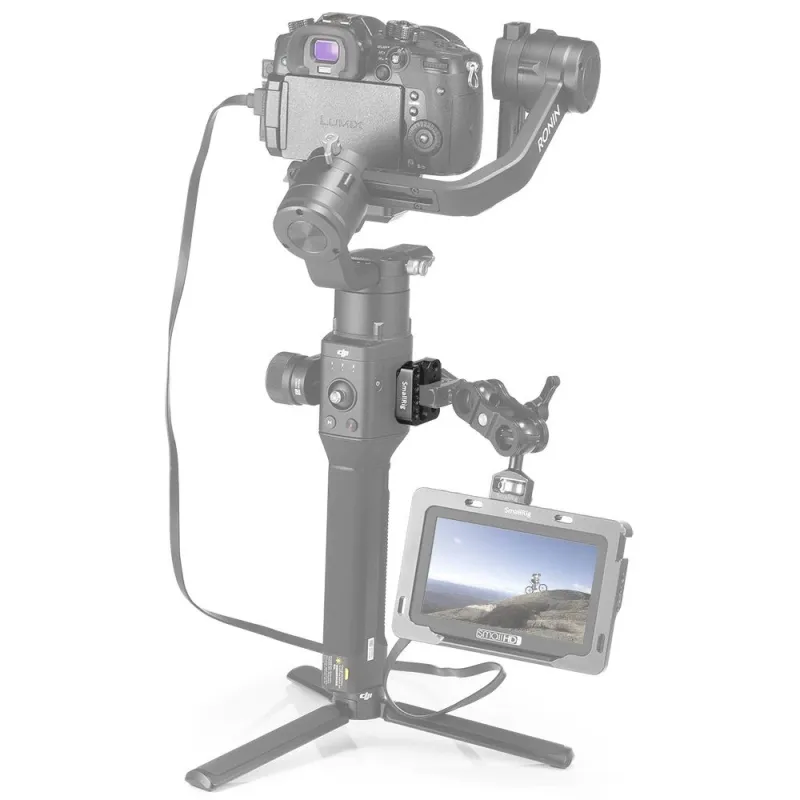

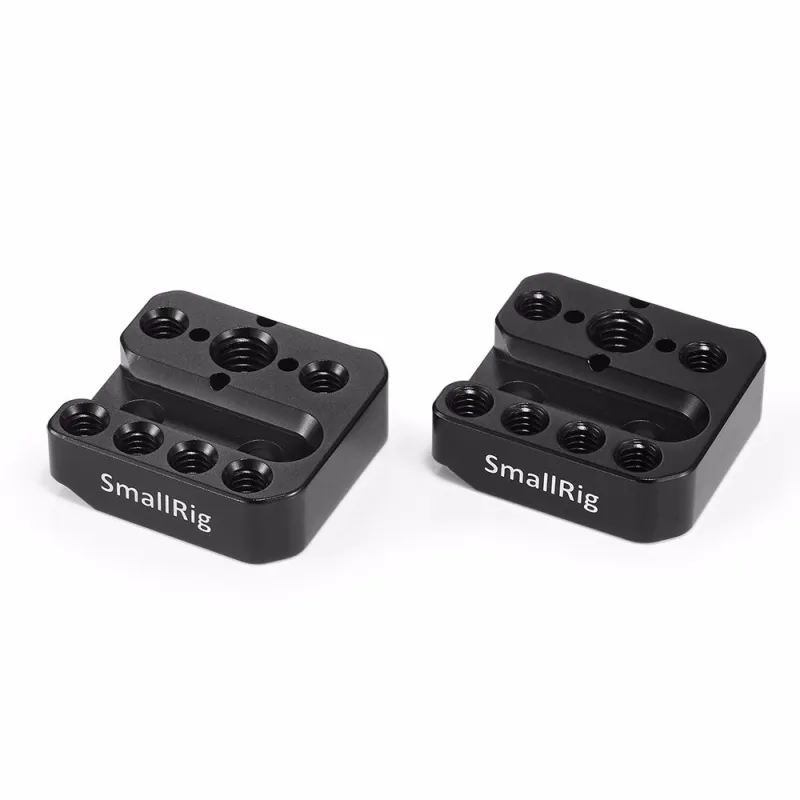

SmallRig Mounting Plate for DJI Ronin S (pair) 2234 is designed to provide multiple mounting points for accessories attachment. It is fixed on the side of Ronin S via two M4 screws after taking off the small DJI plate which covers the electronic contacts or focus wheel. There are multiple 1/4”-20 threaded holes and one 3/8”-16 threaded hole for magic arm or cold shoe mount for monitor and microphone. It also allows for mounting any accessories with nato rail directly because there is a nato rail on the plate.

Key Features:
1.Compatible with DJI Ronin S Handheld Gimbal.
2.Multiple 1/4”-20 threaded holes for accessory attachment.
3.Features a nato rail allows for mounting nato clamp accessories.
4.Arri 3/8”holes for mounting products with arri locating pins.
5.Lightweight and multifunctional design.

Compatibility:
DJI Ronin S

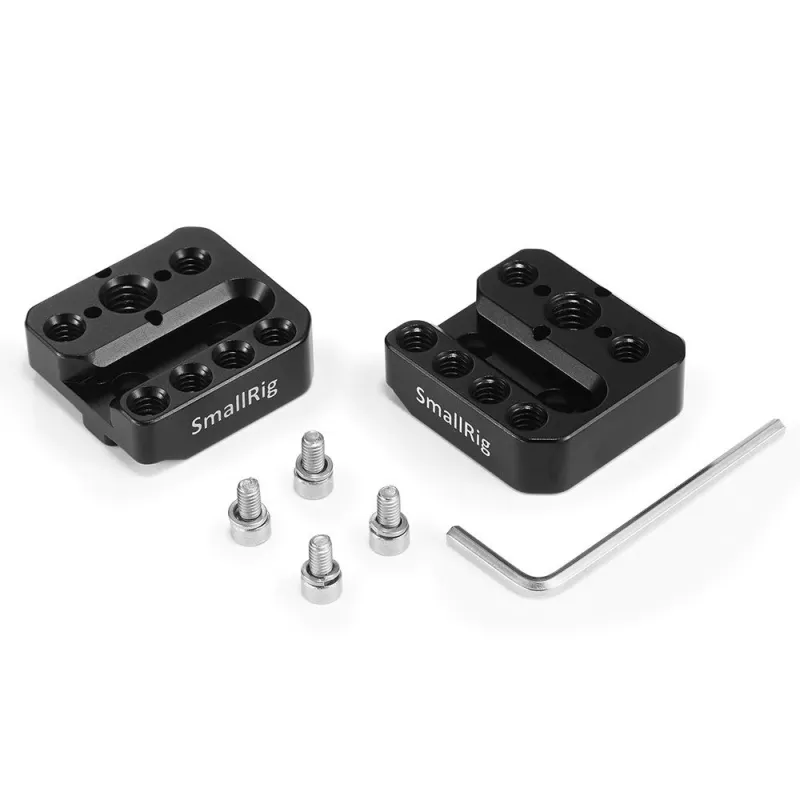

Delivery Content:
2 x Mounting Plate
1 x Hex Spanner
2 x M4 Screw
4 X Washer

Specifications:

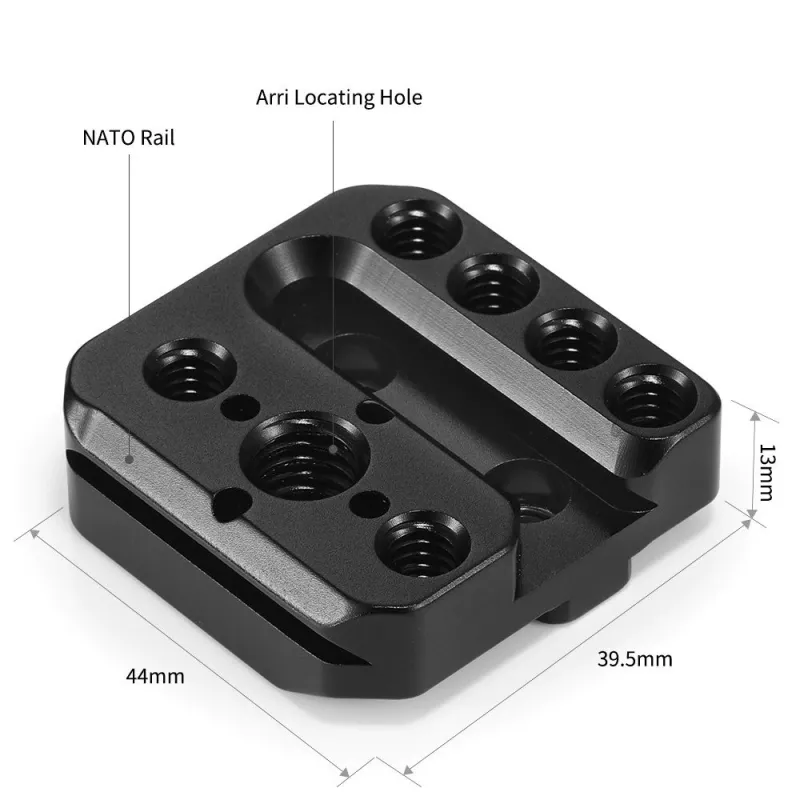

Product Dimensions:

39.5 X 44X 13mm

Net Weight:

72g

Package Weight:

90g

Material(s):

Aluminum Alloy
