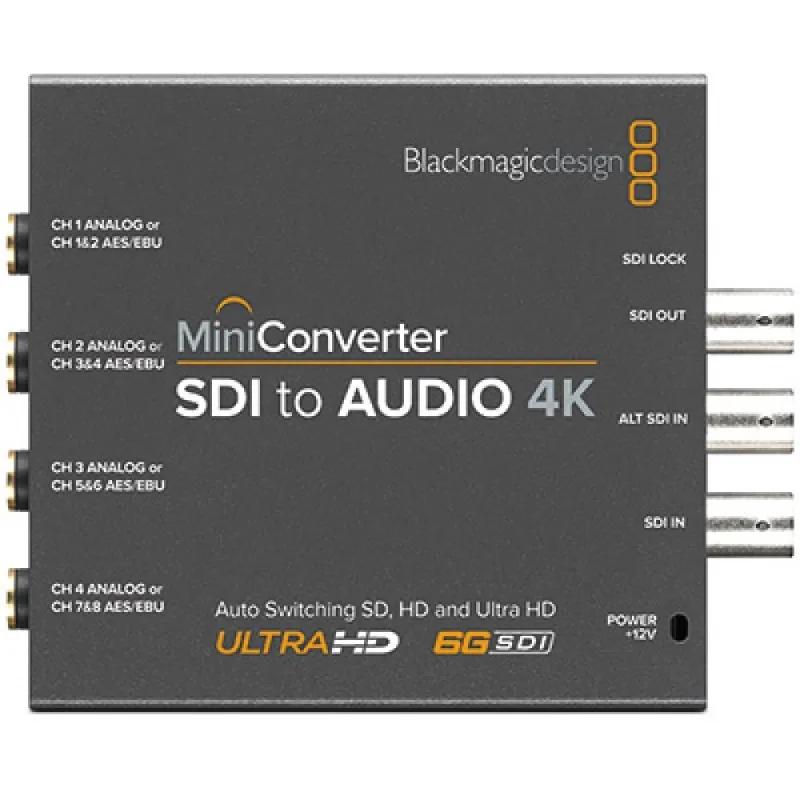

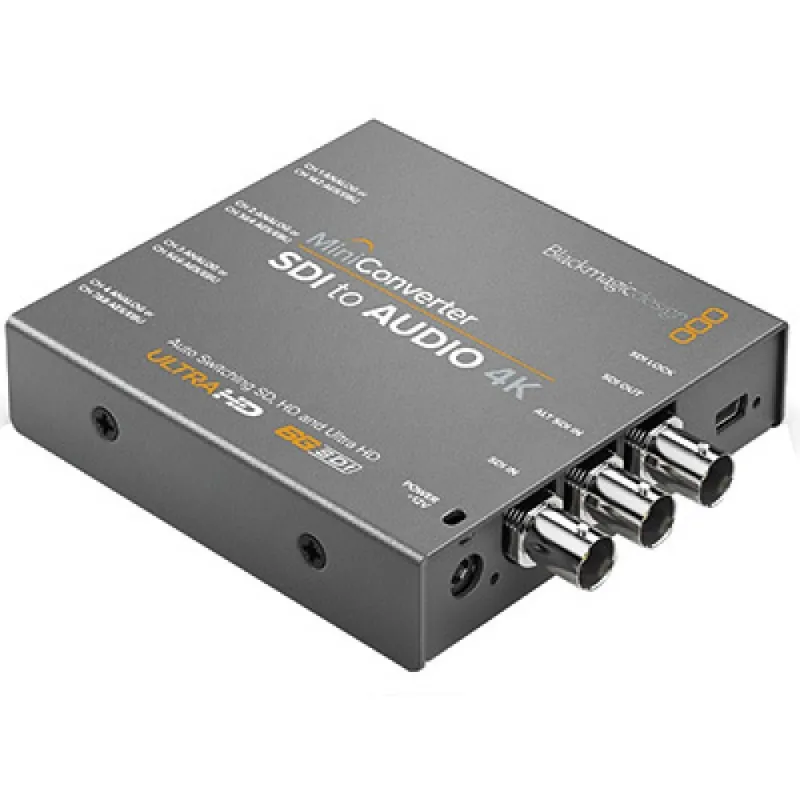

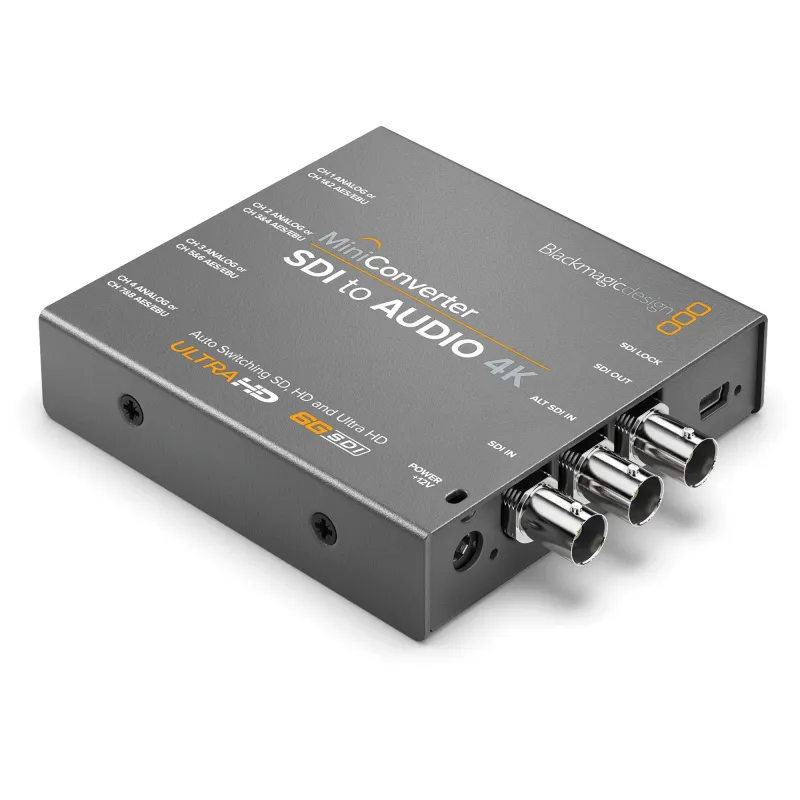

Blackmagic Mini Converter SDI - Audio 4K (BM-CONVMCSAUD4K)

Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

Delivery Contents:
– Mini Converter SDI to Audio 4K
– 12V universal power supply with international socket adapters
– Warranty (3 Year Limited Manufacturers Warranty)

Specifications

Connections

SDI Video Input

Switchable between SD, HD, 3G and 6G-SDI.

SDI Video Output

Automatically matches the SD, HD, 3G and 6G-SDI video input.

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Analog Audio

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio

8 channels of professional balanced digital with standard 1/4 inch jack connections.

Multi Rate Support

Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.

Updates and Configuration

USB

Reclocking

Yes

Standards

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE ST-2036

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2, 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2, 4:4:4

SDI Color Space

YUV, RGB

SDI Auto Switching

Automatically selects between SD, HD, 3G and 6G-SDI.

SDI Format Support

525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p, 29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.

Software

Software Control

Mac OS X™ and Windows™ software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later, Windows 7 or Windows 8

Settings Control

Mini Switches or USB software.

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

5.52 Watts

Operational Voltage Range

12V - 31V DC

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 60° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Mini Converter SDI to Audio 4K de-embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more.

World's Most Advanced Converters
Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD, and 4K models switch up to Ultra HD resolutions with 6G-SDI video standards! Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of many different models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.

Easy To Use Features

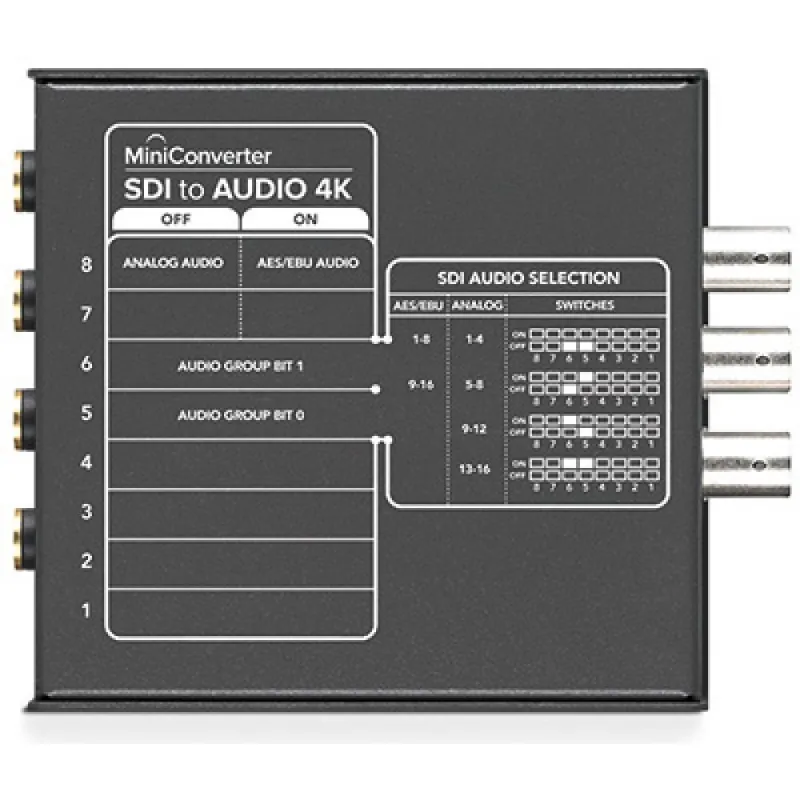

Broadcast, post production and professional A/V environments are built using SDI equipment and cabling. It’s essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard connections, so you get the convenience and cost savings of using your own cables!



Latest SDI Technology
Mini Converters 4K models feature the latest 6G-SDI technology that operates at four times the data rate of normal HD-SDI. 6G-SDI is fully compatible with all SD-SDI and HD-SDI equipment, so you can connect to your existing equipment. Mini Converters detect the video input and automatically switch between formats.
