SMALLRIG 2991 BATTERY PLATE V-MOUNT W ADJ ARM 2991

SmallRig 2991 Battery Plate V-Mount with Adjustable Arm

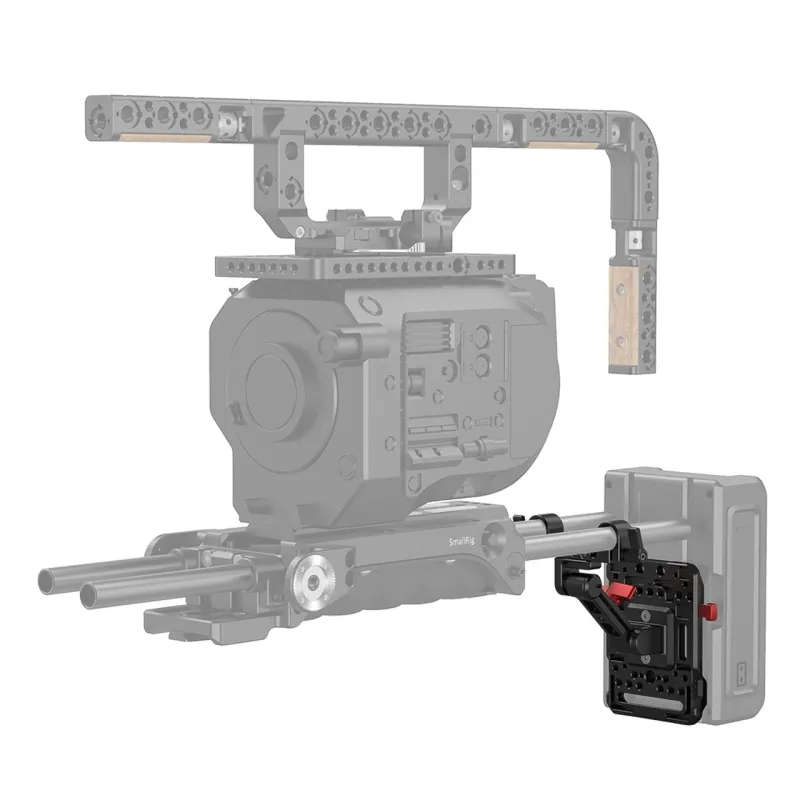

It comes with a dual 15mm rod clamp with an adjustable arm to help mount the plate to your 15mm LWS rod system and adjust the V mount battery's position as needed in a variety of different installation ways.

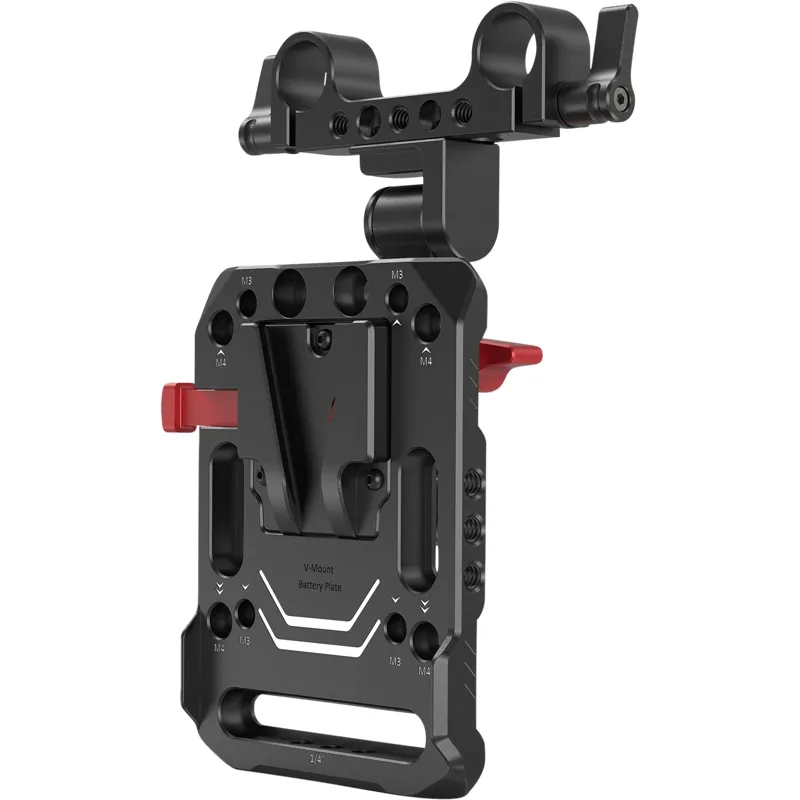

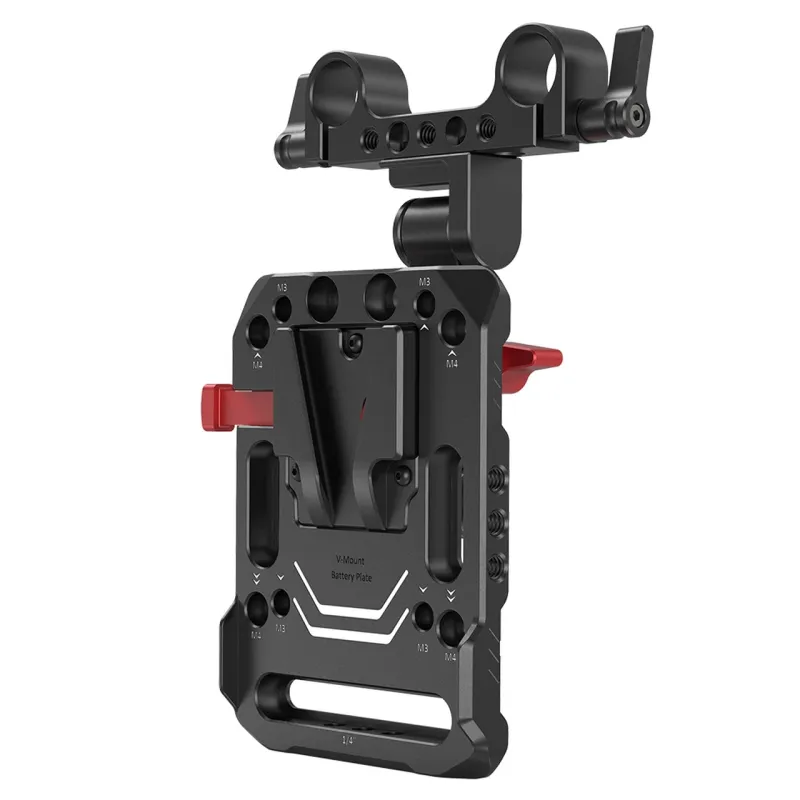

The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.

Two stoppers will prevent the battery from twisting when attached.

The plate is also compatible with the Blackmagic URSA mini.

Note:

1. No V-Lock part (male) provided with the plate.
2. This is purely a mounting solution for a V-mount battery — no power ports on the plate.

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

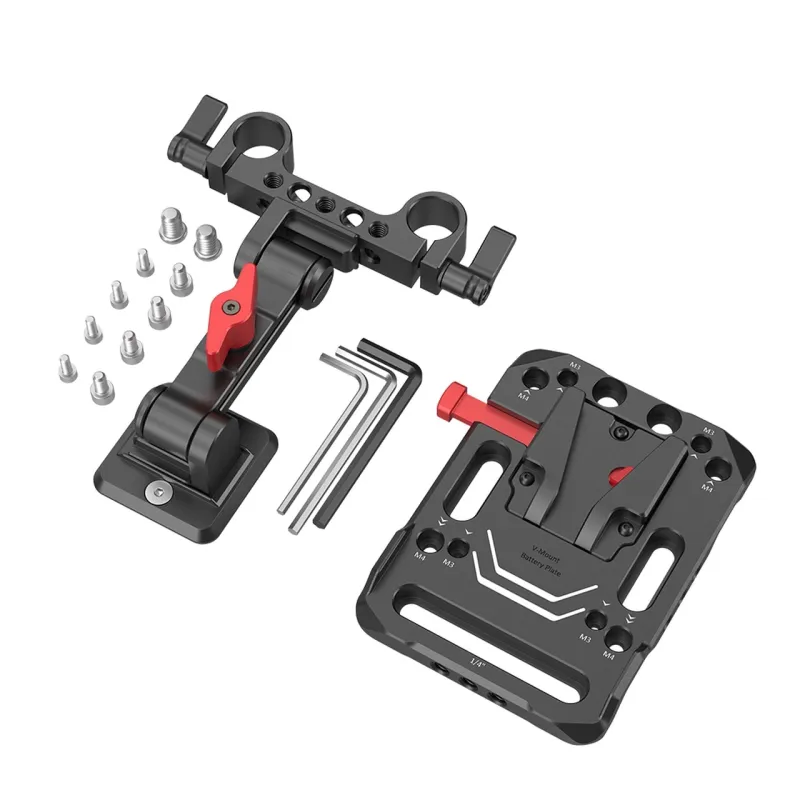

Package Includes:
1 x V Mount Battery Plate
1 x Dual 15mm Rod Clamp with Adjustable Arm
3 x Allen Wrench
2 x 1/4-20" Screw (short)
2 x 1/4-20" Screw (long)
4 x M4 Screw
4 x M3 Screw

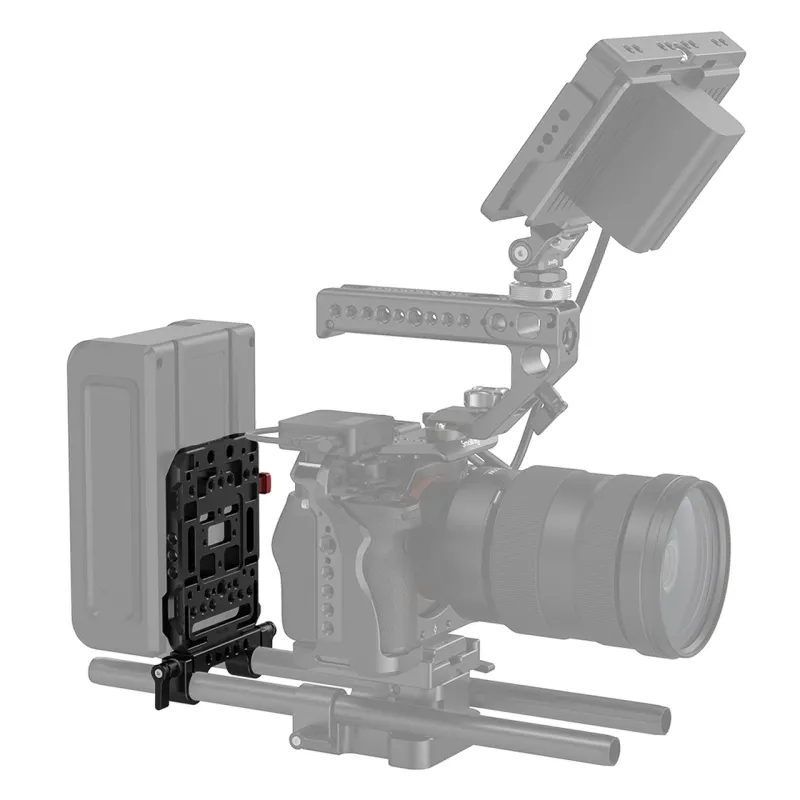

SmallRig V Mount Battery Plate with Adjustable Arm 2991 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp with an adjustable arm to help mount the plate to your 15mm LWS rod system and adjust the V mount battery's position as needed. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

• 1 x V Mount Battery Plate
• 1 x Dual 15mm Rod Clamp with Adjustable Arm
• 3 x Allen Wrench
• 2 x 1/4-20" Screw (short)
• 2 x 1/4-20" Screw (long)
• 4 x M4 Screw
• 4 x M3 Screw

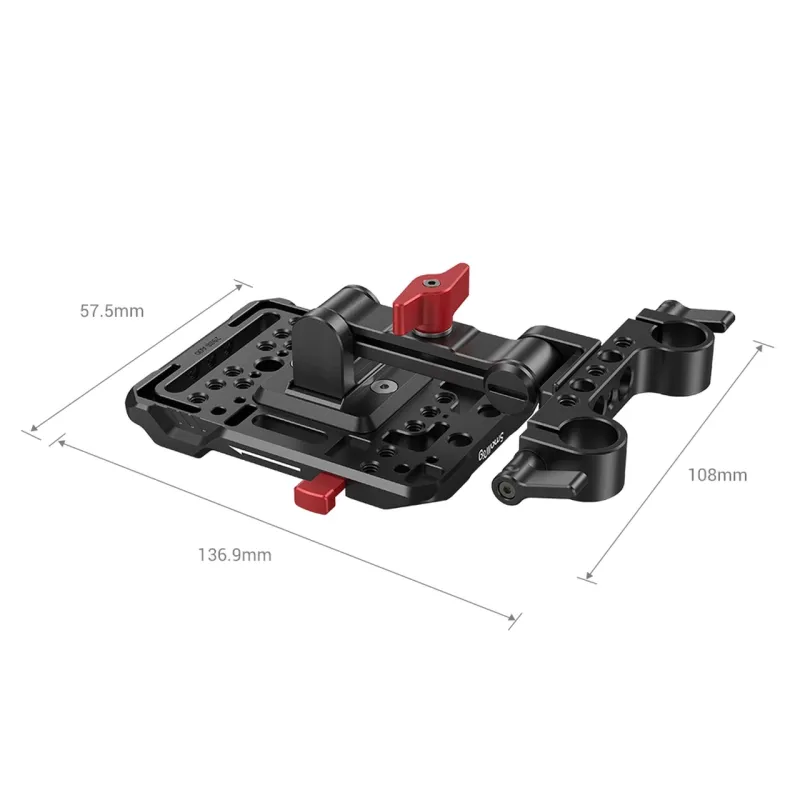

• Product Dimensions: 136.9 x 108 x 57mm
• Package Dimensions: 143 x 100 x 55mm
• Net Weight: 310g±5g
• Package Weight: 363g±5g
• Material(s): Aluminum Alloy
