SmallRig L-Shape Mount Plate for Canon EOS R5 Mark II 4983

SmallRig L-Shape Mount Plate for Canon EOS R5 Mark II 4983

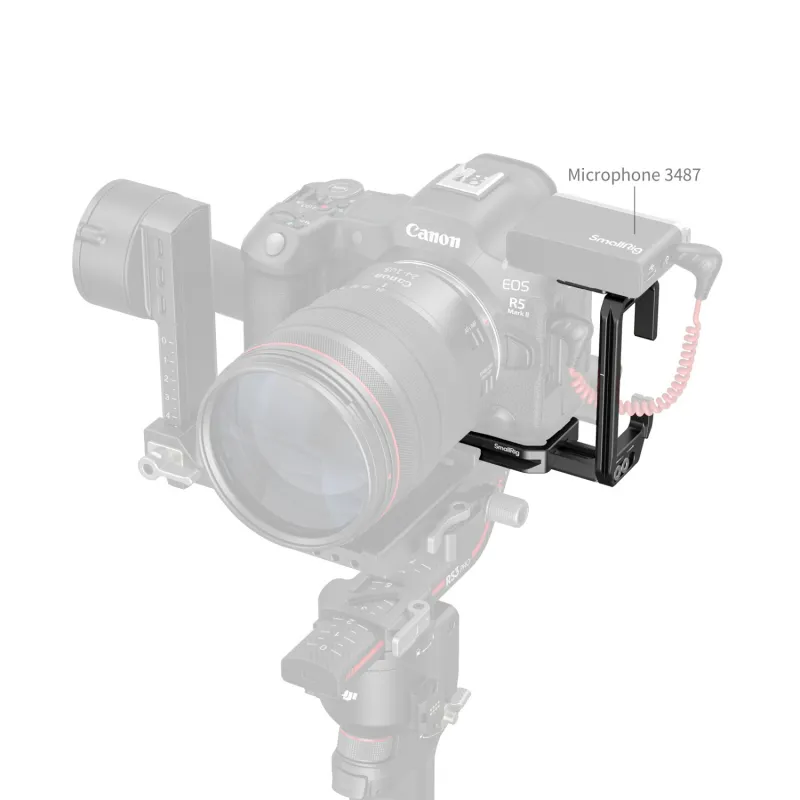

The SmallRig L-Shape Mount Plate is designed to enhance the grip of the Canon EOS R5 Mark II camera body and facilitate quick switching between landscape and portrait orientations. It firmly secures to the camera using a 1/4-20 screw at the base and two locating blocks on the sides to prevent deviation, with built-in silicone pads to protect the camera from scratches.

Key Features

• Built-in Arca-Swiss Quick-Release Plates: Located on both the base and side panels, enabling fast transitions between landscape and portrait shooting orientations.
• Three-Point Locking System: Ensures stability and precision with a 1/4-20 screw at the base and two locating blocks.
• Cold Shoe Locating Block: Stabilizes vertical shooting by preventing side panel deformation and maintains a steady centered frame. It also accommodates various cold shoe accessories such as microphones, video lights, transmitters, and flashes.
• Adjustable Side Panel: Extends by 22.5 mm and adjusts front and back by 7.8 mm without obstructing camera interfaces, facilitating cable management during vertical shooting.
• Versatile Expansion Interfaces: Includes multiple 1/4-20 threaded holes, quick-detach (QD) interface, cold shoe mounts, and strap slots to support diverse shooting scenarios and accessories like QD shoulder straps, microphones, and tripods.
• Compatibility: The Arca-Swiss quick-release baseplate is compatible with Arca-type tripods and DJI stabilizers including RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, and RS 4 Pro, allowing swift transitions between stabilizer, handheld, and tripod setups.
• Screen Protector: Comes with a durable, scratch-resistant tempered glass screen protector featuring 9H surface hardness and IK03 impact resistance. The protector is slightly smaller than the screen edges to prevent dust accumulation, which is a normal design feature.

The side panel design allows the camera screen to rotate approximately 100° front and back and does not obstruct camera buttons, battery compartment, card slot, or angled cable use. The mount plate also includes a magnetic dual-head wrench at the bottom for easy assembly and disassembly.
