Dual 8-Inch LCD Screens

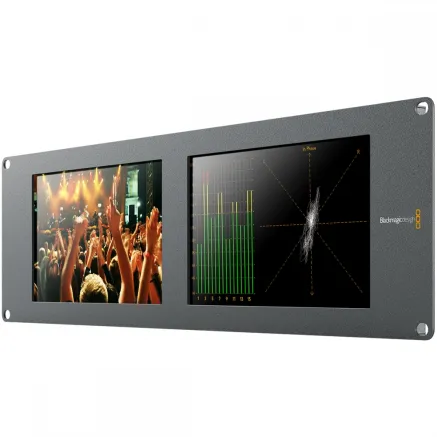

The Blackmagic SmartView Duo 2 features two large independent 8-inch LCD screens housed in a compact 3RU rack mount design. It supports SD, HD, and 3Gb/s SDI video standards, making it ideal for post production, broadcast, and live event monitoring.
High-Quality SDI Monitoring
SmartView monitors provide high-end broadcast monitoring with advanced filtering and scaling to preserve fine image detail. The fully digital design with high-quality SDI inputs ensures precise color reproduction, facilitating consistent color management across multiple displays.
Remote Control and Network Integration
All screens can be remotely adjusted via an Ethernet connection. The included SmartView software utility for Mac OS X and Windows allows centralized control of multiple monitors from a single computer. Integrated tally support is compatible with many switchers and automation systems.
Compact and Lightweight Rack Design
Designed for modern broadcast environments with limited space, the SmartView Duo 2 is less than 25 mm thick, minimizing rack depth requirements. Its lightweight aluminum construction is ideal for mobile racks and fly-away kits. The LCD screens can be installed in any rack position and easily rotated for optimal viewing angles. The monitor automatically detects screen rotation and flips the image accordingly.
Connections
- SDI Video Input: Automatically switches between SD, HD, and 6G-SDI with reclocked loop-through output.
- SDI Video Output: One 10-bit loop-through output switchable between SD, HD, and 6G-SDI.
- SDI Audio Input/Output: 16 channels embedded audio in SD, HD, and UHD formats.
- Multi-Rate Support: Supports standard definition SDI, high definition SDI, and 6G-SDI.
- Tally: 9-pin D connector for tally integration.
Supported Video Standards
- SD Formats: 525i29.97 NTSC, 625i25 PAL.
- HD Formats: 720p50, 59.94, 60; 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1080PsF23.98, 24, 25, 29.97, 30; 1080i50, 59.94, 60.
- 2K Formats: 2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF.
- Ultra HD Formats: 2160p23.98, 24, 25, 29.97, 30.
- SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level B, and 425M.
Audio and Video Specifications
- Audio Sampling: 48 kHz television sample rate.
- Video Sampling: 4:2:2 and 4:4:4.
- Color Precision: 8-bit.
- Color Space: YUV and RGB.
- Colorspace Conversion: Hardware-based real-time conversion.
Scopes and Monitoring Tools
Includes luminance waveform, vectorscope, RGB parade, YUV parade, histogram, and audio phase and level monitoring.
Software and Firmware
- Configuration utility compatible with Mac OS X and Windows.
- Internal software upgrades via included firmware updater.
Physical and Environmental Specifications
- Physical Installation: 3RU rack unit.
- Operating Temperature: 0° to 40° C.
- Storage Temperature: -20° to 45° C.
- Relative Humidity: 0% to 90% non-condensing.
Power Requirements
- 12V universal power supply included with international socket adapters.
- Power consumption less than 20 Watts.
- Operational voltage range: 12V to 15V.
Operating System Compatibility
- Mac OS 10.15 Catalina, Mac OS 11.1 Big Sur or later.
- Windows 10, 64-bit.
Warranty
Includes a 12-month limited manufacturer's warranty.
