The Roland VC-1-DMX converts video and audio signals into dynamic DMX lighting control for events.

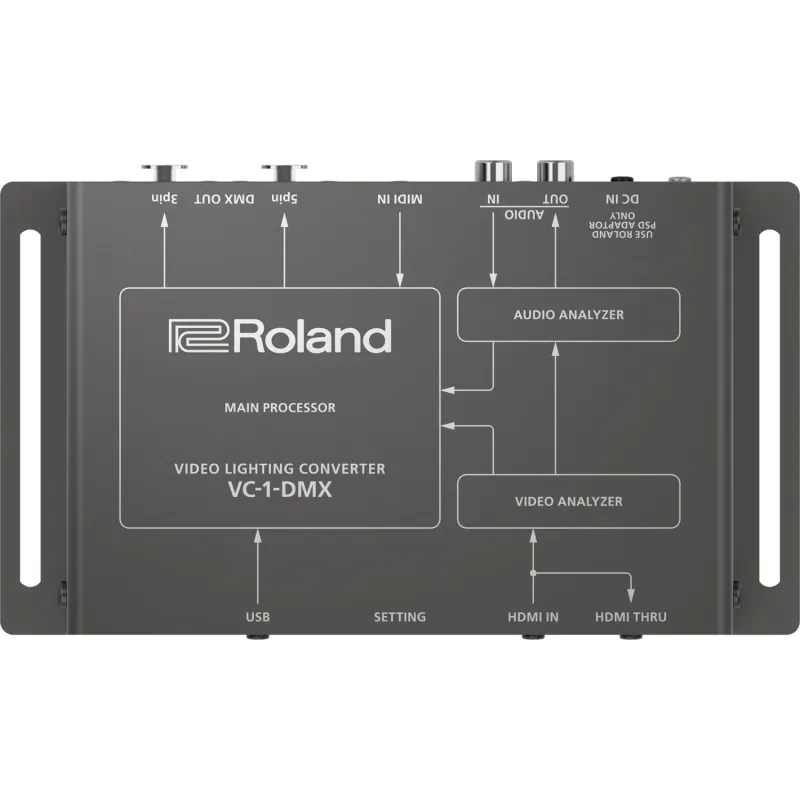

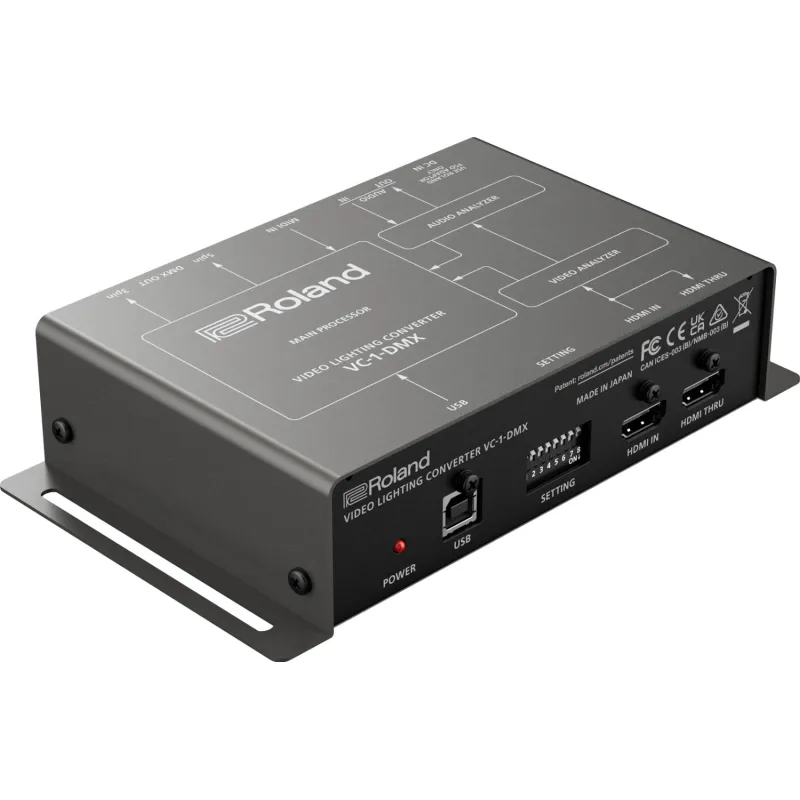

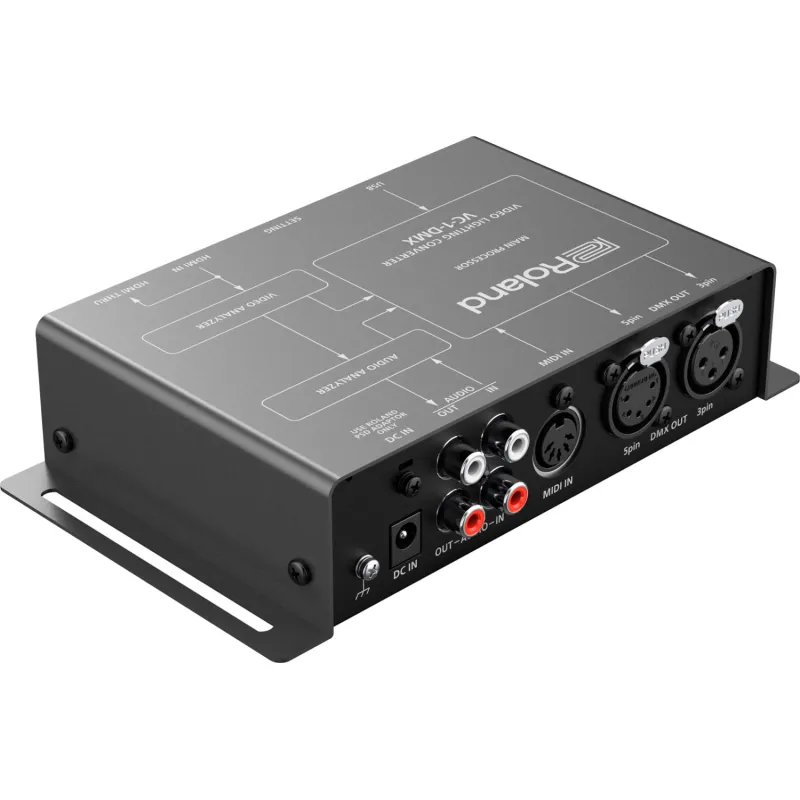

Roland VC-1-DMX - Video Lighting Converter with DMX control
Product ID: 51166
SKU: 51166
Model: VC-1-DMX
Ean: 4957054517908
Condition: New product
Manufacturer: Roland
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video Mixer |
| Accessories for video cameras | pārraide |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Dynamic lighting elevates the energy and excitement of any interactive event, from music concerts and dance clubs to house parties and the local karaoke bar. With the VC-1-DMX Video Lighting Converter, it's never been easier to bring the impact of a pro light show to any event you put on.
The VC-1-DMX automatically generates control commands for your DMX lighting setup based on input from video and audio sources, eliminating the need for a dedicated lighting operator. Color and brightness change based on the current video image, and lights and mirror balls operate in sync with the music tempo. And if you want to dive deeper, the VC-1-DMX supports external MIDI operation from hardware control surfaces, electronic musical instruments, and computer-based production software.
- Automatically generates dynamic lighting effects to enhance any event
- Outputs a DMX signal synchronized with incoming video and audio signals
- Real-time analysis and lightning-fast processing with advanced Roland technology
- Connect your A/V source to the HDMI input for analysis and distribute the unprocessed signal to a monitor or switcher via HDMI thru
- Analog audio also supported with stereo I/O
- Supports external MIDI control via dedicated MIDI input and USB MIDI
- Customize DMX settings with dedicated software for macOS and Windows
- Remotely choose maps with the default settings of the BOSS FS-1-WL MIDI footswitch (a TRS to 5-pin MIDI cable such as the BOSS BMIDI-5-35 is required for connection)
Video
- Input Connector HDMI IN (Type A)
- HDCP Supported
- Multi-format Supported
- Output Connector HDMI THRU (Type A)
- Video Formats Supported
- SD/HD 480i/576i, 480p/576p, 720p (50/59.94 Hz), 1080i (50/59.94 Hz), 1080p (50/59.94 Hz)
- VESA Formats VGA (640480/60 Hz), SVGA (800600/60 Hz), XGA (1024768/60 Hz), HD (1280720/60 Hz), WXGA (1280800/60 Hz), SXGA (12801024/60 Hz), FWXGA (1366768/60 Hz), SXGA+ (14001050/60 Hz), UXGA (16001200/60 Hz), FHD (19201080/60 Hz)
- Refresh rate max per resolution
- Conforms to CEA-861-E, VESA DMT 1.0 Rev 11
Audio
- Input Connectors
- RCA phono (AUDIO IN)
- HDMI IN (Type A)
- Output Connectors
- RCA phono (AUDIO OUT)
- HDMI THRU (Type A)
- Digital Audio Format Linear PCM, 48 kHz, 24-bit, stereo
- Audio Processing 48 kHz, 24-bit
- Nominal Input Level -10 dBu (Max +8 dBu)
- Nominal Output Level -10 dBu (Max +8 dBu)
- Input Impedance 15 k
- Output Impedance 1 k
DMX Lighting Control

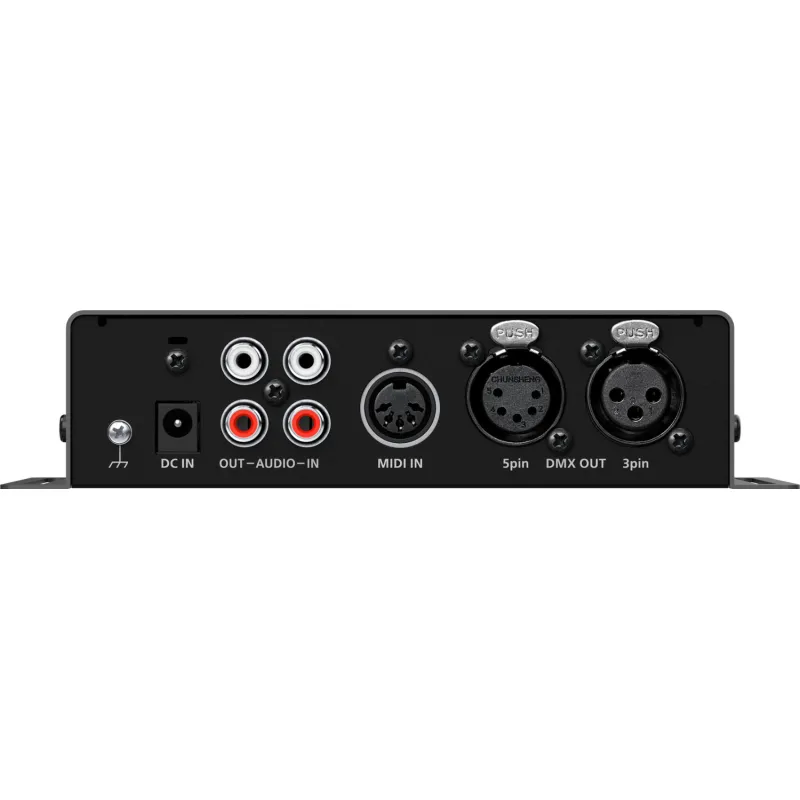

- Output Connectors
- 3-pin XLR (DMX OUT)
- 5-pin XLR (DMX OUT)
- Channels 512 (1 Universe)
Other Functions & Controls
- Control Terminal MIDI IN, USB
- Switches 8-position SETTING switch
- Indicators POWER
- Functions
- Video/Audio/MIDI synchronized lighting control
- Lighting speed control
- HDMI audio de-embedding
Power & Environmental
- Power Supply AC adaptor
- Current Draw 1,000 mA
- Power Consumption 5.7 W
- Operating Temperature 0-40°C / 32-104°F
Dimensions & Weight
- Size (W x D x H) 180 x 115 x 41 mm / 7-1/8" x 4-9/16" x 1-5/8"
- Weight 570 g / 1 lb 5 oz (excluding AC adaptor)
Included Accessories
- AC Adaptor
- Owners Manual
- Safety Leaflet
- Plug Holder
- Rubber Feet
