Overview

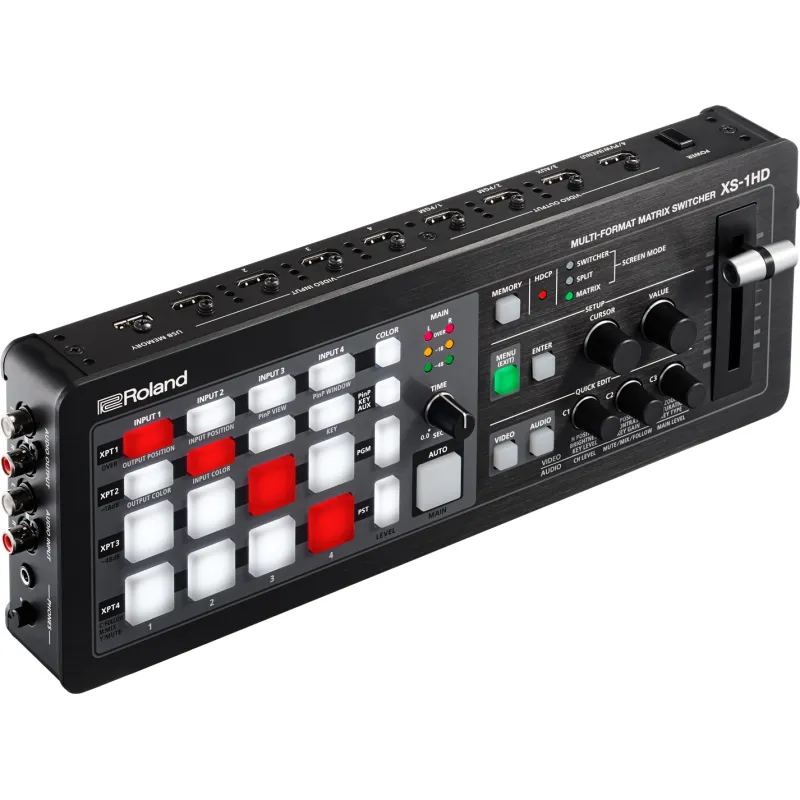

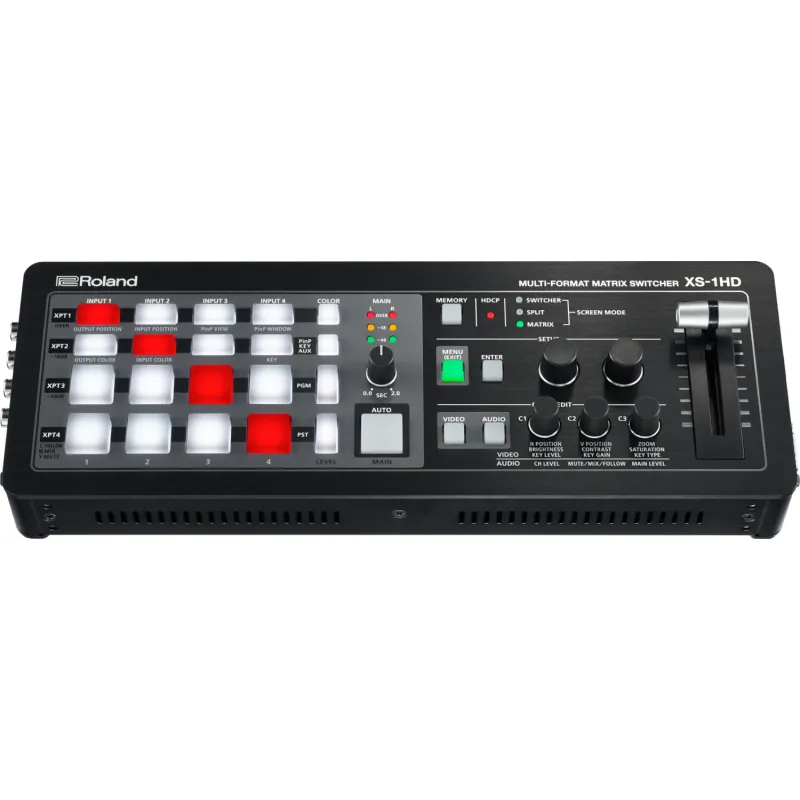

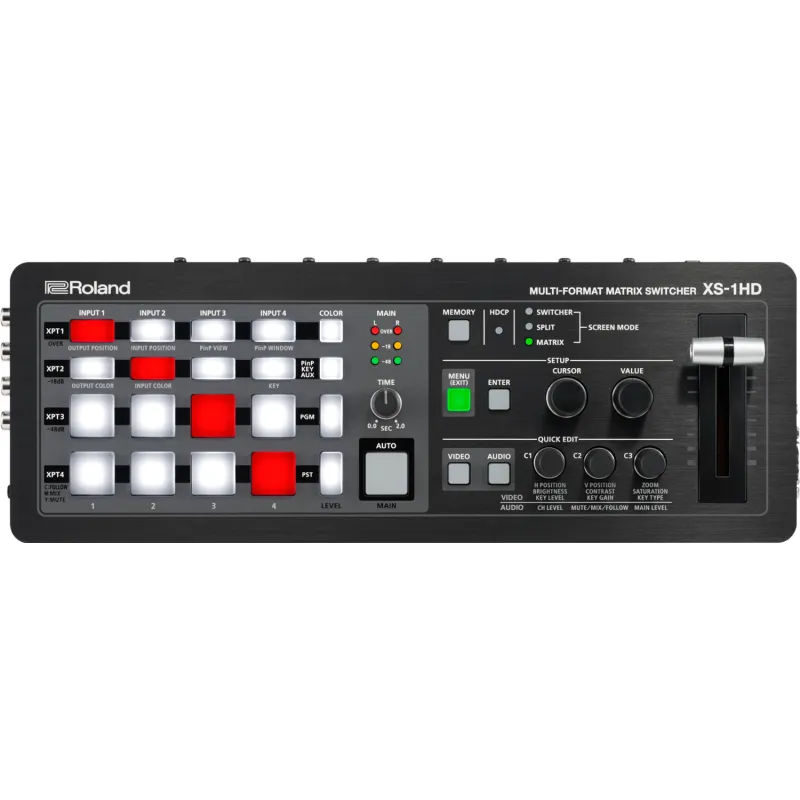

A versatile and compact switcher with multi-screen output and video compositing. A multi-format matrix switcher with scalers that supports up to full HD.
Features
- Table-top matrix switcher the width of a 13" laptop, equipped with four HDMI inputs and outputs
- High-quality 444/10-bit processing at up to WUXGA/1080p
- Frame synchronizer and scaler on all inputs
- Three operation modes: Matrix Mode allows switching of 4 sources to any of 4 outputs
- Switcher Mode allows PinP, key-compositing, and dissolve transitions
- Split Mode allows PinP of up to three inset windows

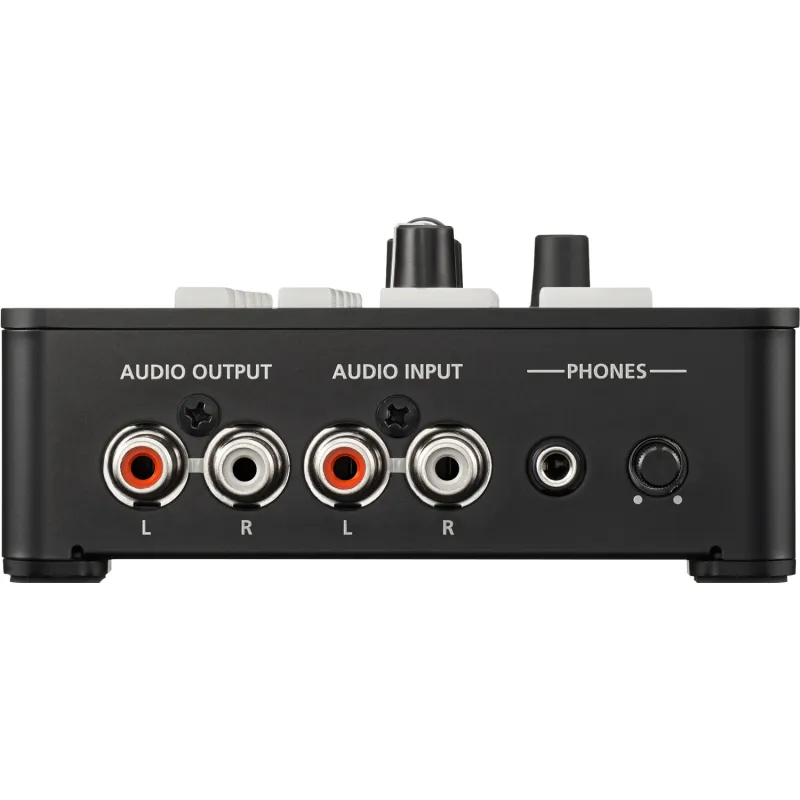

- Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input
- Built-in EDID emulator, and HDCP-compliant
- Still images can be loaded from a USB flash drive
Usage
The XS-1HD is ideal for supporting live event productions that involve a variety of video signals. A high-quality scaler is provided on each input, allowing for fast setup. At only the width of a 13" laptop computer, the XS-1HD allows real-time operation in even the most space-limited working environments.
The XS-1HD can switch video from up to four sources such as cameras, computers, or media players, and freely assign them to LCD displays or projectors. A built-in scaler on each input means that the position or zoom can be adjusted even if the video signals being input have different formats. Since an EDID emulator is built-in, the correct resolution will be sent from computers to the switcher. You can instantly change what is being sent to any display by recalling previously-saved preset memories as the event progresses or when appropriate for the situation.
Matrix mode lets you switch to a total of four output destinations, such as a main screen, a secondary screen, a monitor for the presenter, and a digital signage for general information. Switcher mode is convenient when the operator requires traditional real-time switching capability with a multiview preview, PinP, key-compositing, and dissolve transitions.
Even with its compact footprint, the XS-1HD lets you operate its powerful functions using only the operation panel. Since HDMI input/output and the controls are integrated into a single unit, it can be used in a variety of situations such as on a small desk or podium, or on a media cart.
The XS-1HD provides three screen modes for a variety of applications. In addition to the matrix switcher mode, there's a Switcher mode that lets you use PinP or key-compositing, dissolve transitions and provides a multi-view output, and a Split mode that can display up to three PinP images.
All contained in a compact format, the XS-1HD includes a switcher, scalers, and audio mixer in a single unit. Additionally, high-quality image processing allows output to large high-resolution screens, without any degradation of quality.
