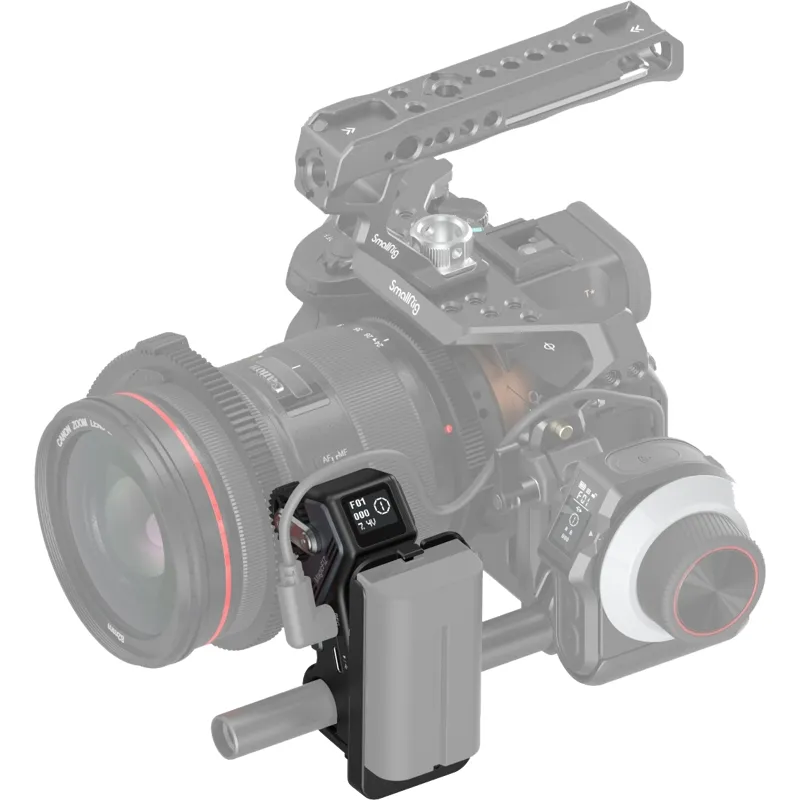

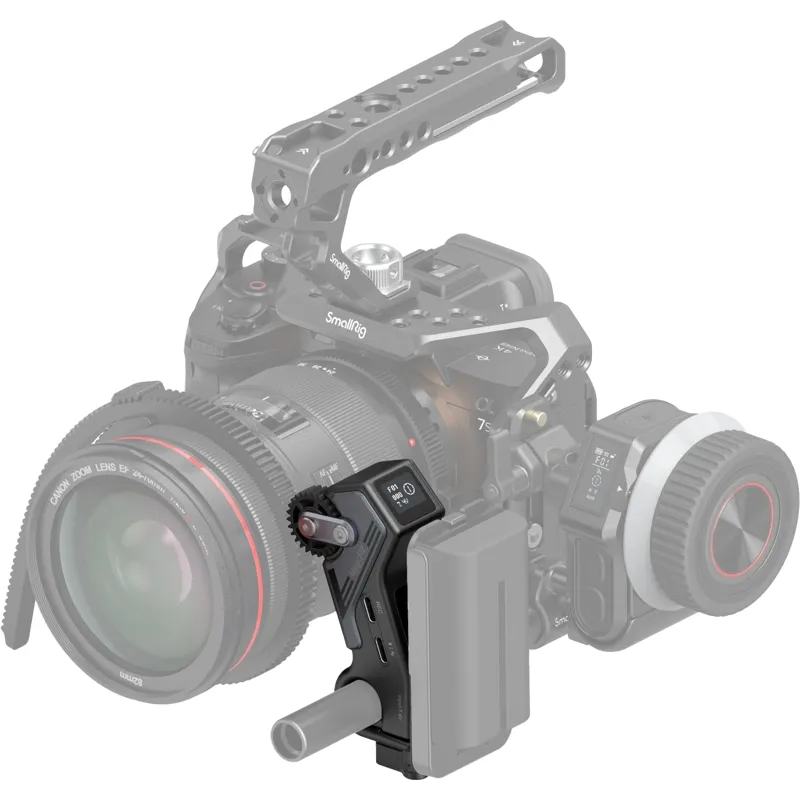

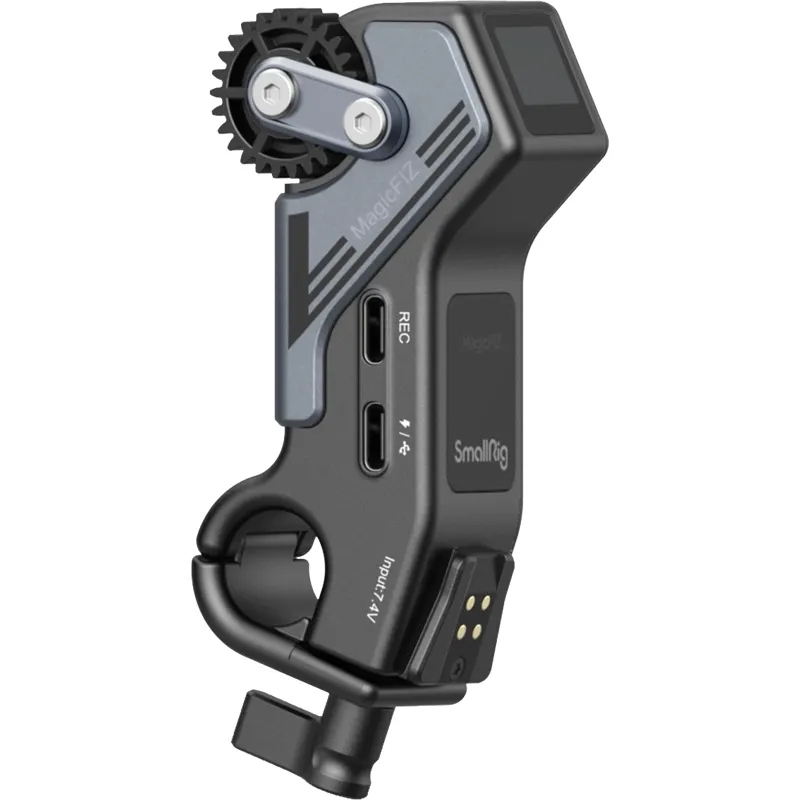

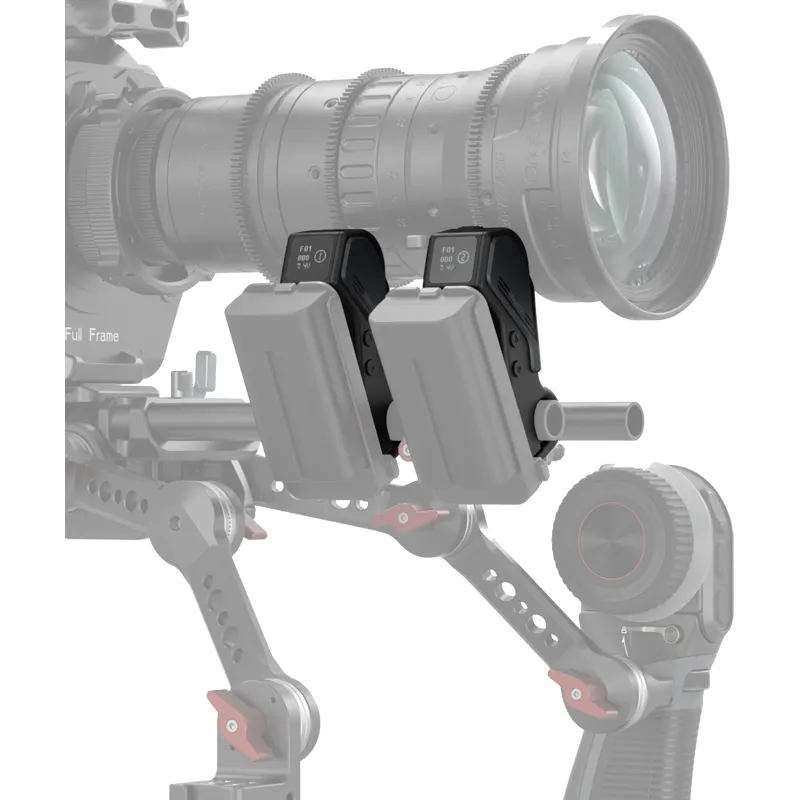

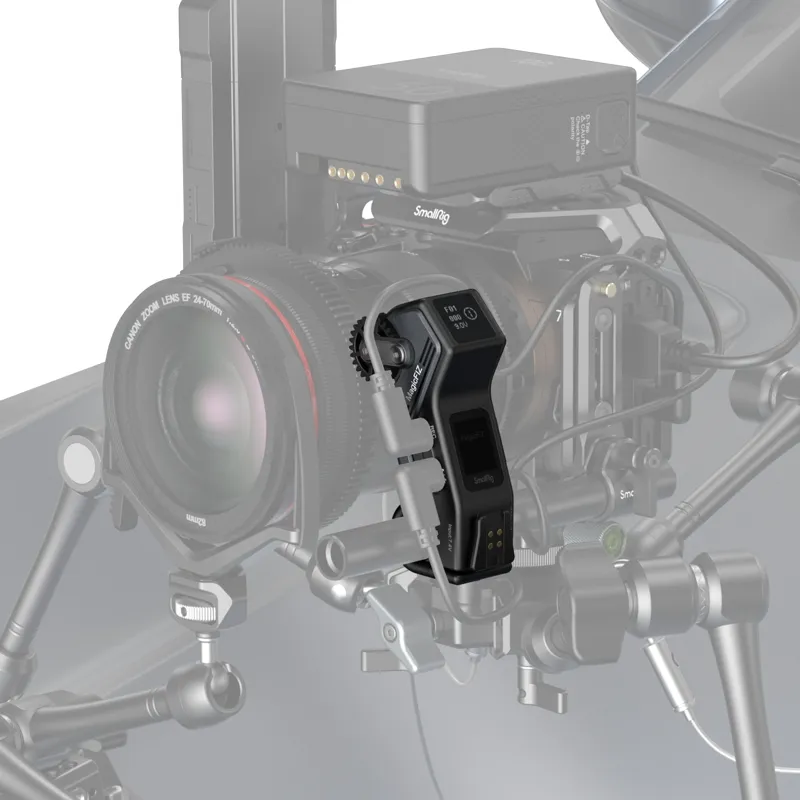

SmallRig 3263 Wireless Receiver Motor

SmallRig 3263 Wireless Receiver Motor

It can be powered by Smallrig Battery Plate 3777 with NP-F batteries, or by USB-C to D-Tap Cable 3266 and USB-C to DC cable 3268 with V-Mount batteries.

The Wireless Receiver Motor features an open-end rod clamp to avoid any obstacles on Φ15mm rod and allows for handheld and over-the-shoulder shooting for precise follow focus when working with SmallRig Multi-Functional Wireless Handgrip 3917.

It connects Wireless Handwheel Controller via control cables 3325, 2971, 2970 (depending on your camera type) for wireless REC start/stop.

Also, in cabled mode, it has ultra-low delay of about 5ms.

Compatibility:
1: Φ49/52/55/58/62/67/72/77/82/86mm DSLR camera lenses and Φ80/85/90/95/114mm cine lenses
2: Φ15 rail support system
3: M0.8 lens and follow focus lens gear ring
4: Not compatible with non-SmallRig wireless follow focus system
5: NP-F batteries
6: PD / QC fast charging protocol
7: NATO rail and ARRI mount

Package includes:
1 x Wireless Receiver Motor

SmallRig 3263 Wireless Receiver Motor
The SmallRig 3263 Wireless Receiver Motor, an accessory of wireless follow focus system, comes with an ultra low power 0.52 OLED screen, supports 5V 16.8V wide input voltage , fast charging and provides 9V/18W and 0.5N.m torque output. It can be powered by Battery Plate (ID: 3777) with NP F batteries or by USB C to D Tap Cable (ID: 3266) and USB C to DC cable (ID: 3268) with V Mount batteries. The Wireless Receiver Motor features an open end rod clamp to avoid any obstacles on 15mm rod and allows for handheld and over the shoulder shooting for precise follow focus when working with Multi Functional Wireless Handgrip 3917. It connects Wireless Handwheel Controller via control cables (ID: 3325, 2971, 2970, depending on your camera type) for wireless REC start/stop. Also, in cabled mode, it has ultra low delay of about 5ms.

Note:


Wireless Receiver Motor and Wireless Handwheel Controller can be operated only under the same frequency band and number
A calibration is required when wireless receiver motor reverses rapidly or handwheel screen displays abnormal location information
The two USB C ports come with different functions
For instructions, please refer to the Wireless Follow Focus System User Manual
,

Compatibility: 49/52/55/58/62 67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
15 rail support system
M0.8 lens and follow focus lens gear ring
Incompatible with non SmallRig wireless follow focus system
Supports fast charging
,

1 x Wireless Receiver Motor
