Ikan Atlas 21.5 Monitor in Hard Case (AX20-FK-V2)

Rated 4.7/5 based on 11 customer reviews

247545 ar PVN

Piegādes laiks no 3 nedēļām.

33187
Ikan

Jauns

iespējams pēc 19.04.2024
Saņemt veikalā
Bezmaksas
iespējams pēc 19.04.2024
Pakomāts (Omniva, DPD, Venipak)
3 €
iespējams pēc 19.04.2024
Kurjers (DPD, Omniva)
no 10 €
iespējams pēc 19.04.2024
Velokurjers (tikai Rīga)
no 7 €
2475.45
Līzinga kalkulators
Termiņš, mēn.
3
6
12
24
36
Pirmā iemaksa,,
Men.maksājums,
no

Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

Ikan Atlas 21.5" Field & Studio Monitor w/ Tally in Hard Case (AX20-FK-V2)

The Ikan Atlas AX20-FK-V2 monitor is designed to be the ultimate field monitor. The monitor incorporates many features that make it ideal for field use such as its durable hard case. The AX20-FK-V2 is full of many features designed specifically to make working in the field easier and more efficient. In addition, the Atlas AX20-FK-V2 supports HDR preview mode to help get the right shot for HDR acquisition.

  • 1920 x 1080 LCD display
  • HDMI/3G-SDI input and output
  • Three color tally indicator LED (green, red, yellow) on front & rear
  • SD card slot for loading 3D LUTs
  • Built-in hard case with light stand mount
  • 4K Ultra HD support via HDMI
  • V-mount battery plate
  • Waveform, RGB parade, vectorscope, histogram, peaking, false color,pixel-to-pixel, clip guides, image flip, audiometer

Built for the Field

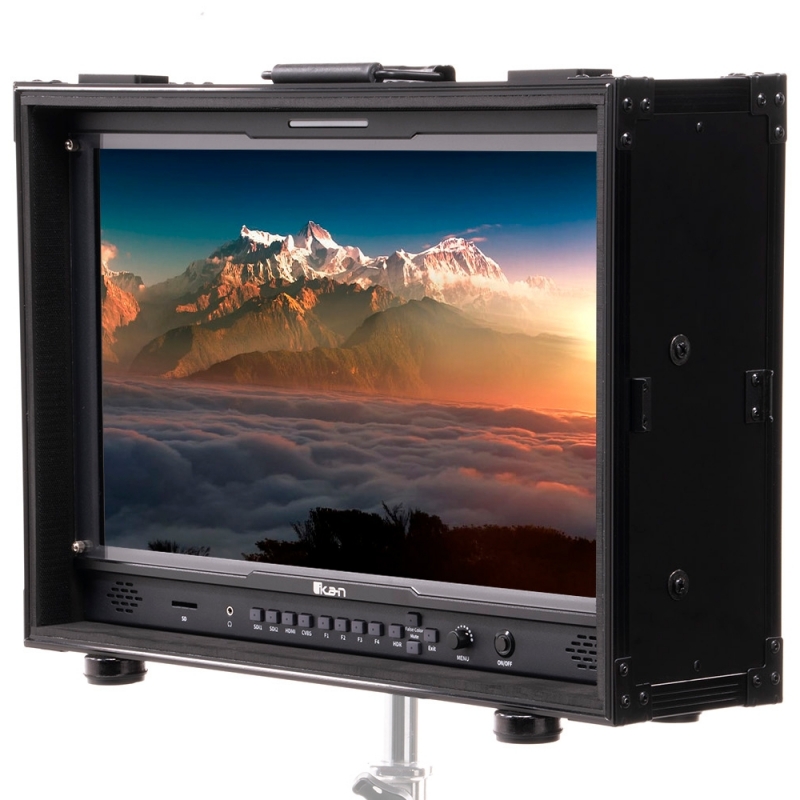

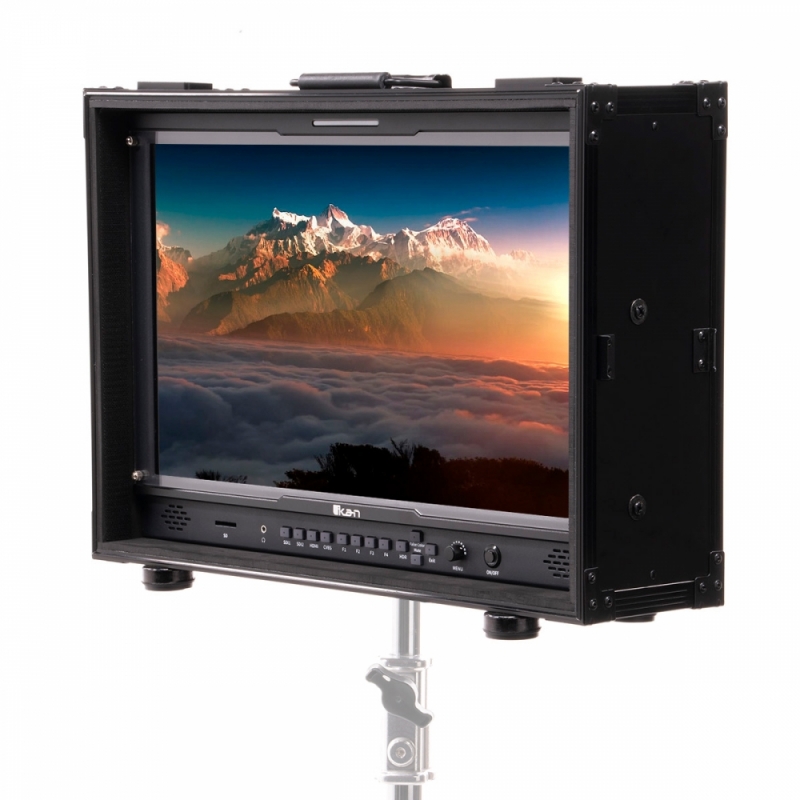

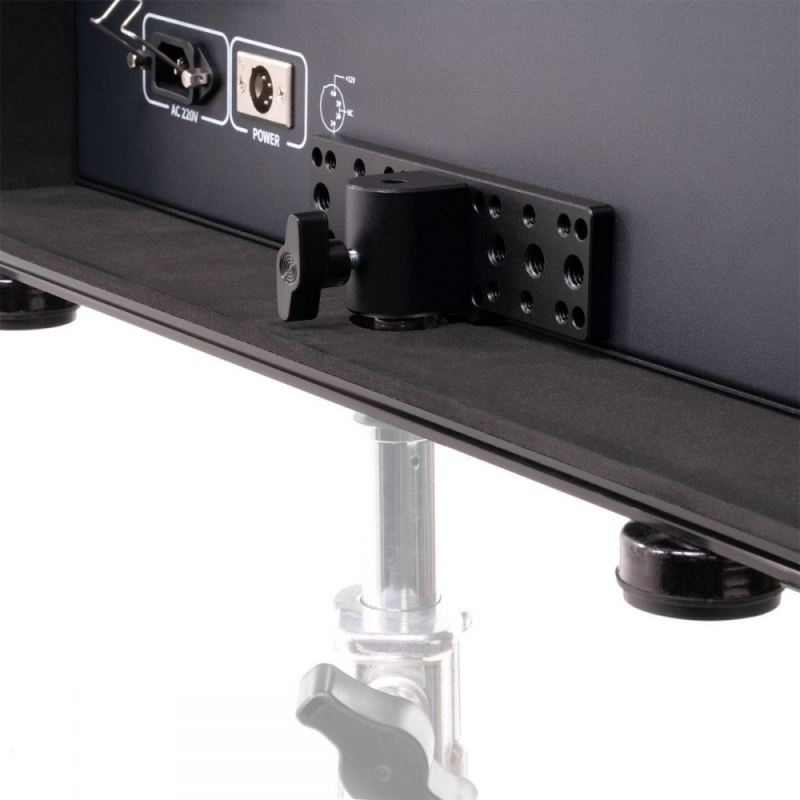

The Atlas AX20-FK-V2 monitor is designed with field usability in mind. The ultra-rugged case with built in light stand mount allows you to keep the monitor protected, easy to carry, and use on location. Additionally the monitor can also be mounted via the 100×100 VESA mount on the back of the monitor.

Tally Light Indicators
Incorporating a tally connector and three tally lights on the front, the monitor fits well into a switched multi-camera production. You can see the tally connector pin key on the back of the monitor.

Inputs and Outputs
In keeping with the theme of flexibility, the AX20-FK-V2 also offers many inputs and outputs.

• 2x 3G-SDI Inputs, 1x Output
• HDMI In and Out
• AV Input (Composite Video)
• RCA and XLR Audio Inputs
• Tally Input

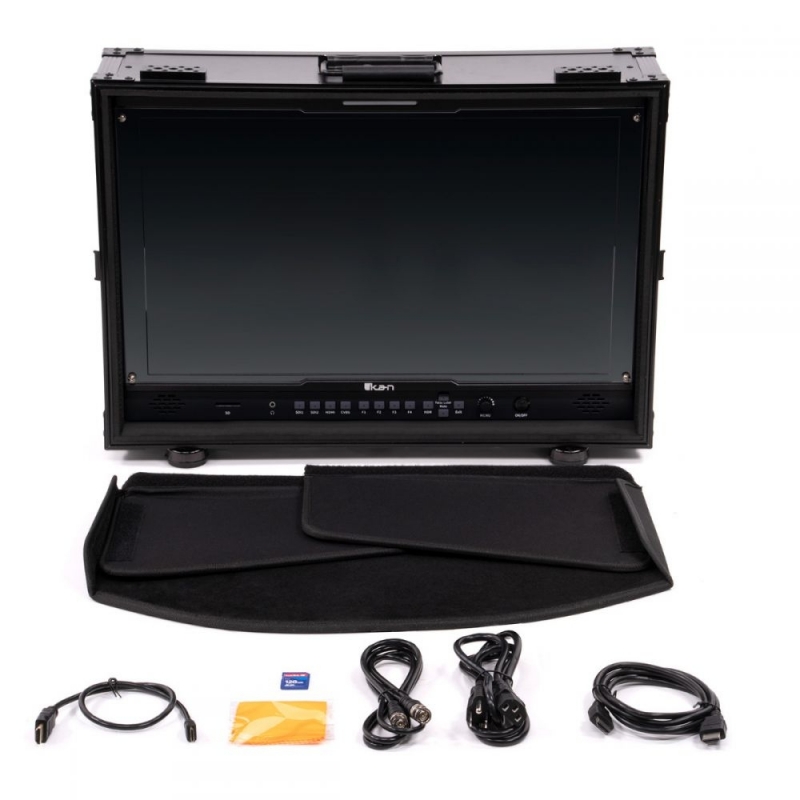

In The Box
(1) AX20-FK-V2
(1) Power Cable
(1) Sunhood
(1) SD Card for LUTs

Specifications

Product Weight
9,1 kg (20 lbs)
Product Dimensions
53,3 x 38,1 x 15,2 cm (21x15x6 in)



Supported Video Signal

3G-SDI
1920x1080p @ 50, 59.94, 60 Hz
HD-SDI
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.97, 30 Hz
SD-SDI
720x480i @ 59.94, 60Hz
720x576i @ 50Hz
HDMI
720x480i @ 60 Hz
720x576i @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
3840x2160p @ 24, 25, 30 Hz
4096x2160p @ 24 Hz
Backlight
LED
Battery Type
V-Mount
Brightness
400 cd/m²
Build Material
Aluminum
Contrast Ratio
1000:1
Input Voltage
AC 110-240V, DC 12-24V
Inputs
2x 3G-SDI
1x HDMI
1x AV
1x Audio L/R
1x Tally
1x UMD/RS422
Mounting Points
VESA 100 x 100
Light Stand Adapter
Outputs
1x 3G-SDI
1x HDMI
Screen Size
21.5" (54,6 cm)
Viewing Angle
178 Degree (H/V)
