SmallRig 4063B Advanced Compact V Mount Battery Mounting System 4063B

Kompakta V Mount akumulatoru montāžas sistēma

SmallRig 4063B uzlabotā kompaktā V stiprinājuma bateriju montāžas sistēma ir viegls, "viss vienā" risinājums V stiprinājuma baterijām.

Izceltākās iezīmes:

• Ērts, "viss vienā" montāžas risinājums
• Universāls un kompakts dizains
• Izstiepjama pamatplāksne

Universāls un kompakts dizains:

L veida konstrukcija apvieno ātras atbrīvošanas plāksni Arca Swiss, V stiprinājuma akumulatora plāksni, izstiepjamu stieni un 1/4 20 vītni ātrai kameras un akumulatora uzstādīšanai un regulēšanai. Sistēmā ietilpst arī divi 15 mm stieņi un ātras atbrīvošanas krūšu/biķeļa atbalsta sistēma stabilai uzņemšanai no rokas.

Izstiepjama pamatplāksne:

Montāžas sistēmas maksimālais izstiepšanas attālums ir 36,5 mm, kas piemērots dažāda izmēra kamerām. Stieņa bloķēšana un atbloķēšana ir ātra un bez instrumentiem, izmantojot pārslēdzamo slēdzi.

Plaša saderība:

Saderība ar lielāko daļu tirgū pieejamo kameru modeļu, tostarp bezspoguļa/DSLR kamerām, piemēram, Sony Alpha 7R V, Canon EOS R5 un Panasonic LUMIX sēriju.

Dubultā ātrās atbrīvošanas plāksnīte Arca Swiss:

Komplektā ietilpst divas QR plāksnes Arca Swiss, kas nodrošina ātru savienošanu starp kameru, stabilizatoru un statīvu.

Viedā grozāmā konstrukcija:

V stiprinājuma plāksni var pagriezt un noregulēt par 180 grādiem, lai ērti uzglabāt un piekļūt kameras atlokāmajam ekrānam, neizņemot akumulatoru.

Compact V Mount Battery Mounting System

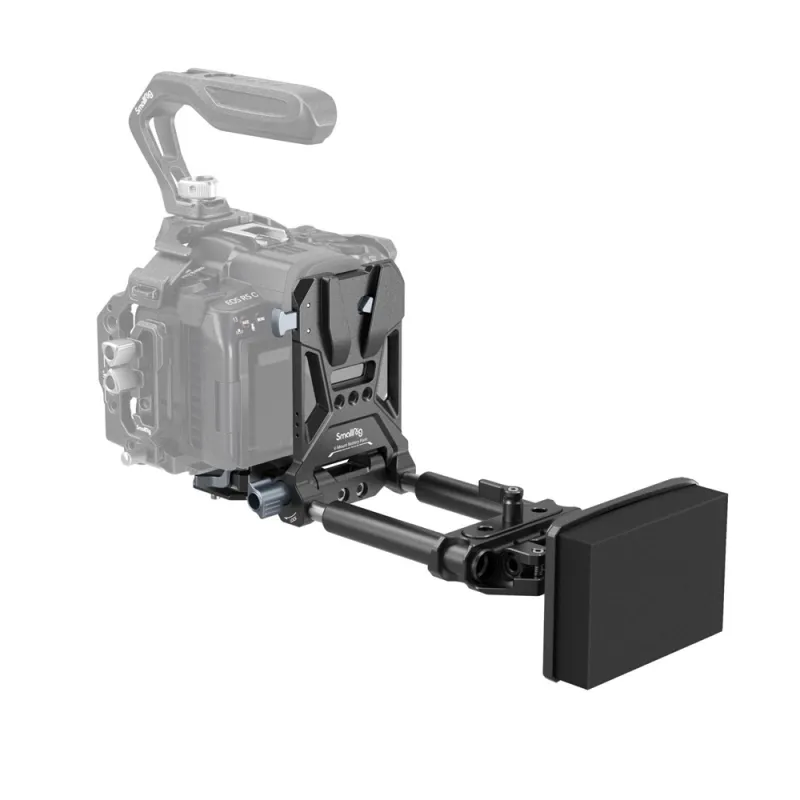

The SmallRig 4063B Advanced Compact V Mount Battery Mounting System is a compact, lightweight, convenient, all in one mounting solution for V mount batteries.


Highlights

Convenient, all in one mounting solution
Versatile and compact design
Stretchable base plate

Versatile and compact design

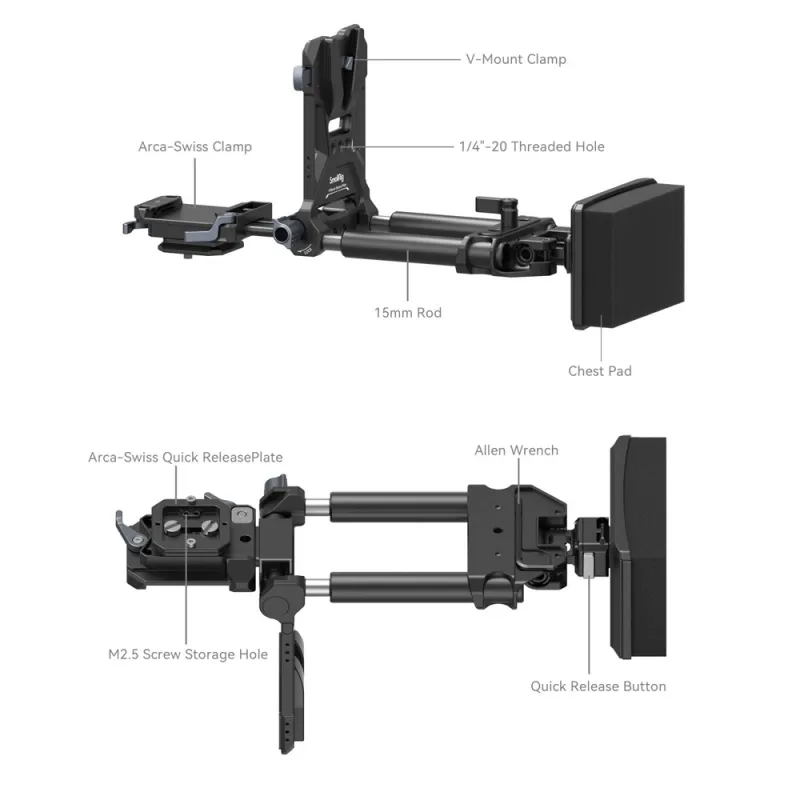

The L shaped design integrates the quick release plate for Arca Swiss, V mount battery plate, stretchable rod and 1/4 20 threads for quick installation and adjustment of camera and battery.  Through the 1/4 20 threads connected to the dual 15mm rods and quick release chest/belly support system to reduce load and ensure more stable handheld shooting.


Stretchable base plate
The mounting system has a maximum stretching distance is 36.5mm, which meets the needs of cameras of different sizes and improves compatibility. Locking and unlocking the rod is done with a toggle lock, which is quick and time saving without tools.


Wide compatibility

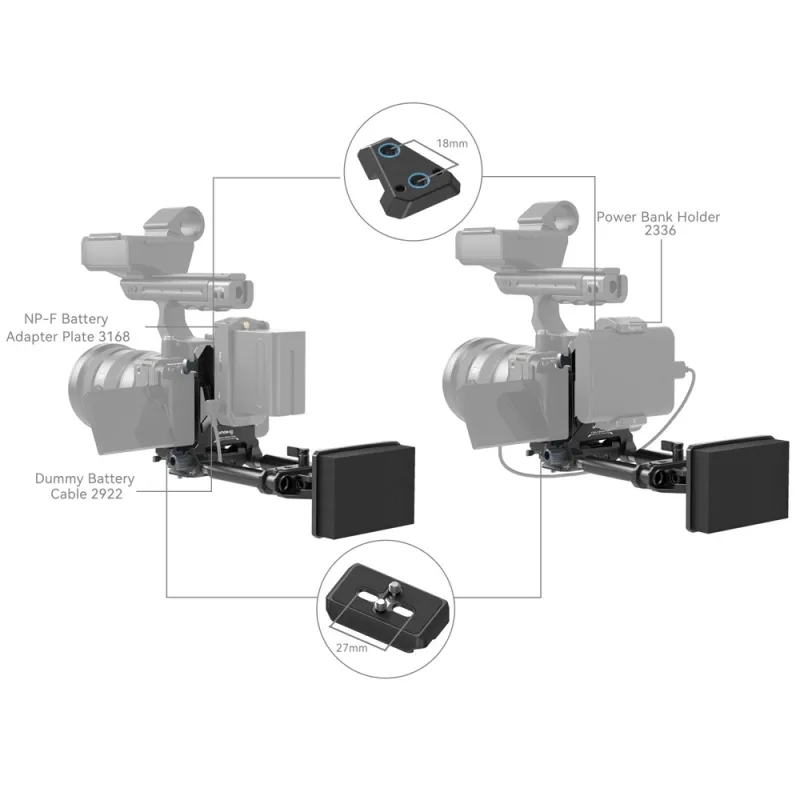

The system is versatile and universal, suitable for most camera models on the market, for mirrorless / DSLR cameras less than 111 mm thick, such as for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30, for Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP, for Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5.


Double quick release plate for Arca Swiss
Two QR plates for Arca are included. One plate can be mounted to the bottom of the camera or cage for quick coupling functionality. The other can be mounted to the bottom of the plate for quick switching between handheld, stabiliser and tripod shots.


Smart swivel design
The V Mount plate can be rotated and adjusted 180. Adjust forward for convenient storage and backward for enough space to open the cameras flip screen. This rotatable design means you dont have to remove the battery first, effectively saving time. And it also features pivot cushioning to prevent your device from falling.,

Compact, lightweight, all in one mounting solution for V mount battery
Supports different cameras in different scenarios
Tool free installation and quick release
Arca Swiss quick release plate
Can be rotated 180 and adjusted
Material: aluminium alloy, stainless steel
Dimensions: 245.5 x 140.0 x 95.0 mm
2 year warranty
,

1 x V mount battery plate
1 x Arca Swiss Quick Release Plate
1 x V mount plate
2 x 15mm rod
1 x chest piece
